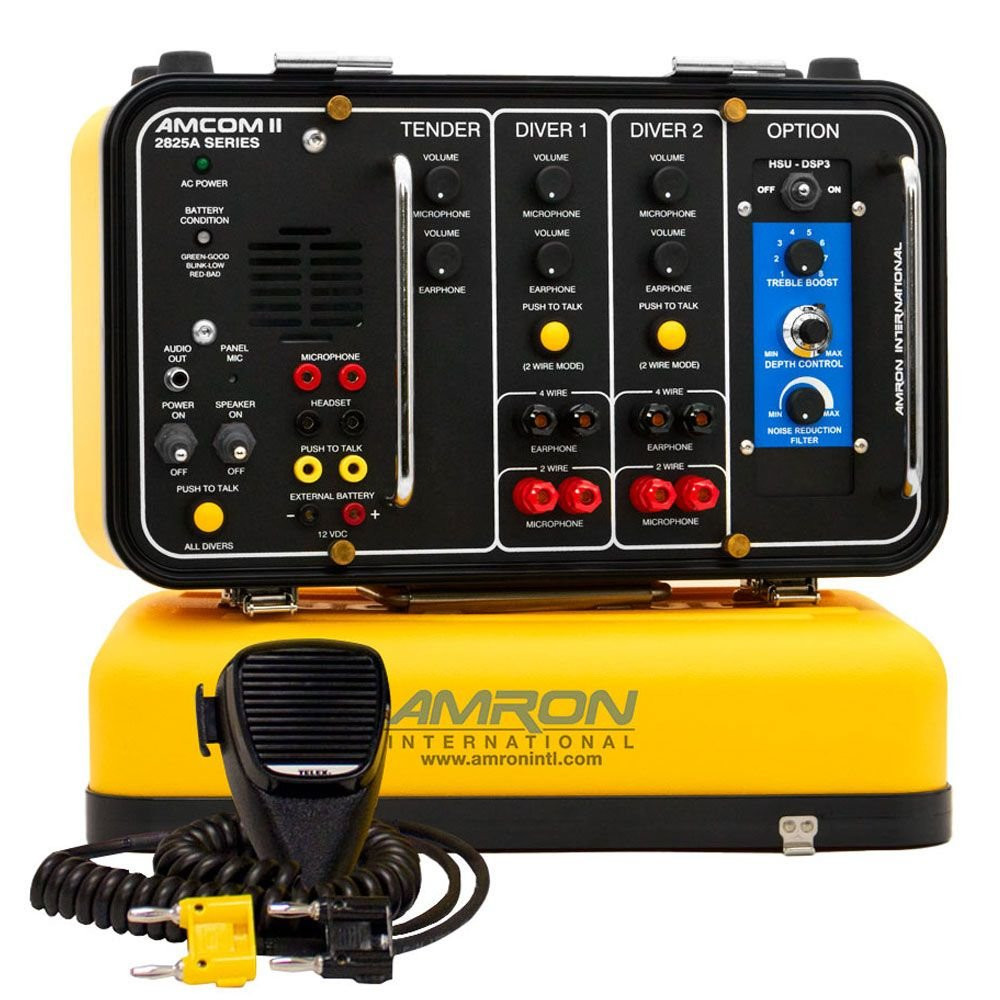

AMCOM II 2825A-12 Two-Diver Portable Helium Speech Unscrambler with Outdoor AC Power Module and Intl. Locking Power Cord AVAILABILITY: Normally Ships in 1-5 Business Days


* Required Fields

BUY THIS AMCOM II 2825A-12 Two-Diver Portable Helium Speech Unscrambler with Outdoor AC Power Module and Intl. Locking Power Cord TODAY FROM RENTAL TOOLS ONLINE.
This Deluxe Battery Operated Two-Diver Portable Communicator from Amron(model: 2825A-12) is available at one of the best prices anywhere on the internet or in-store!



• High Audio Fidelity
Ultra-low noise circuit combined with noise suppression circuitry produces crystal clear speech. Automatic gain adjustment will guard audio signal from distortion, enhance speaker protection and audio quality. Increases band width 47%.

• Extended Battery Operation Time
Audio amplifier card deploys the state-of-the-art Class-D digital audio power amplifier. Has very low power dissipation, produces less heat, and extends battery life up to 32%.

• Flexible Gain Settings
The audio amplifier card has adjustable gain settings to accommodate different communication applications and environments.

• Ultra-Low Electromagnetic Interference (EMI)
EMI is achieved through spread-spectrum and de-phase control techniques providing for optimum integration with diving systems.

• Outdoor Rated AC Power Module
Weather resistant, IP65 rated AC power entry module accommodates country specific AC power cords.

• Country Specific V-Lock AC Power Cord
At time of order, simply choose the IP54 rated Locking AC power cord you need.


  • Helium Speech Unscrambler (HSU) is conveniently installed in the option panel of this portable communicator incorporates a state-of-the-art digital signal processor to correct raw helium speech to clear, intelligible voice. The Depth Control can be finely-tuned using a multi-turn potentiometer providing the tender with better speech quality.
  • Real-time audio processing uses both frequency and time domain technologies for optimized performance over a wide range of depths and background noise.
  • Improved Treble Boost Control feature allows for optimum frequency enhancement and improved intelligible speech from the diver’s voice.
  • The Noise Reduction Filter (NRF) uses a complex Digital Signal Processor algorithm to capture the background noise and reduce it without affecting the diver’s speech.  Noise reduction level can be reduced by up to 17 dB
  • Separate channels and volume controls for each diver and tender to accommodate individual earphone and microphone adjustments, equipment variations and individual comfort levels.
  • Divers’ umbilicals can be set to 4-wire mode (full duplex) or 2-wire mode (push-to-talk) or any combination of the two modes for any diver.
  • Ability to use both dynamic and pre-amplified diver microphones with a unique circuit that detects microphone type and automatically adjusts volume levels.
  • Weatherproof push-to-talk microphone for better voice intelligibility topside. For optimum clarity, see Tech Note (below) for other recommended equipment.
  • Internal charger allows for simultaneous charging and operation of the unit while protecting the rechargeable battery from being over-charged.  Automatically supplies power to the audio amplifier when AC power is disconnected to allow for continued operation.


AMCOM™ II 2825A-12 Two-Diver Portable Communicator with DSP3 Helium Speech Unscrambler with Outdoor AC Power Module and International Locking Power Cord includes:

  • (1) Amron 2405-28 Hand-Held Push-to-Talk Microphone
  • (1) Amron 2890-05 12 VDC Sealed Lead Acid Gel-Cell Rechargeable Battery with Slide terminals
  • (1) Amron 282XA-UM Two-Diver Portable Communicator User Manual


  • Amron 2460SM-28 Single Muff Operator Headset with Boom Mic and Dual Banana Plugs
  • Amron 2401-28 Deluxe Headset with Boom Mic
  • Amron 2822-28 Remote Walk-and-Talk (4-wire mode)
  • Amron 2821-28 Remote Walk-and-Talk (2-wire mode)


All communicators will inherently transfer topside noise to the divers when the tender speaks directly into the communicator’s panel speaker. To eliminate background noise at the surface, use the 2405-28 Push-to-Talk Microphone, included with this model. For optimum communications, we recommend purchasing the 2401-28 Deluxe Headset with Boom Mic for topside operation. For tender mobility, use the 2401-28 Deluxe Headset with Boom Mic along with the 2822-28 Remote Walk-and-Talk (4-wire mode) or the 2821-28 Remote Walk-and-Talk (2-wire mode). For wireless tender communications, order the 2825A-03 Two-Diver Portable Communicator with Wireless Tender Option.

Additional Information

Additional Information

SKU 141151
Weight 17
Country of Manufacture
Mfr. Model Number 2825A-12
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications
  • Input Impedance (Each Input) :250 Ohms
  • Frequency Response : 300 - 10000 Hz
  • Common Mode Rejection : 40 dB Minimum
  • Current Drain Maximum Full Volume : 3 Amps
  • Minimum Quiescent : 0.190 Amps
  • Output Impedance : 4 Ohm
  • Power Supply Voltage : 12 VDC Nominal (9 Volts Minimum - 16 Volts Maximum)
  • AC Power Operating Range : 90-264 VAC, 50-60 Hz
  • Sensitivity (Input) : 0.5 mV
  • Output Power (RMS @ 4 Ohm Load, 12 VDC) : 10 Watts Audio
  • Battery Life: 31 hours
  • Dimensions: 10 in. H x 9 in. W x 14.5 in. L (25.4 cm x 22.9 cm x 36.8 cm)
  • Weight: 17.25 Lbs. (7.82 Kg)
  • Free Shipping No
