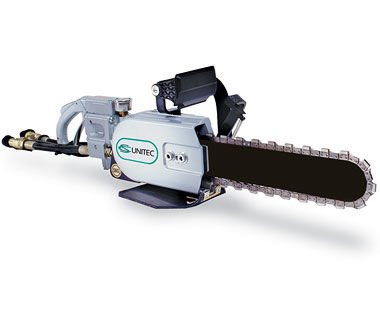

CS Unitec 11hp 10" Hydraulic Concrete Cutting Chain Saw

CS Unitec 11hp 10" Hydraulic Concrete Cutting Chain Saw Product Guide

This hydraulic concrete cutting chain saw is designed to tackle challenging cutting tasks in concrete and masonry materials. It addresses common issues such as the need for deep plunge cuts, making square corners without overcuts, and creating mechanical openings or irregular shapes in dense material.

In practical rental and field use, hydraulic concrete chain saws like this one are preferred for jobs requiring precise, heavy-duty concrete cutting where handheld maneuverability and control are essential. The tool is powered by hydraulic flow from a compatible power unit, allowing it to be used in locations where engine exhaust fumes need to be kept distant from the cut, such as enclosed or poorly ventilated spaces. Operators commonly use this saw for tasks that are difficult to execute with traditional handheld saws, including cutting thick slabs, making plunge cuts to depths up to 10 inches, and shaping concrete edges or openings with minimal overcuts.

Where This Is Used

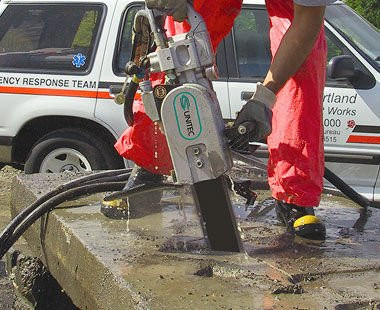

• Cutting concrete slabs and walls on commercial or industrial construction sites

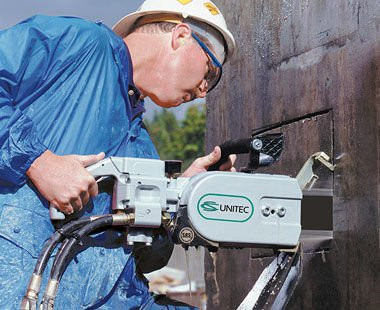

• Forming mechanical openings and irregular cutouts for embedded fixtures or utilities
• Making precise plunge cuts and square corners in concrete repair or retrofit work

Key Details

Selection Notes

From a selection standpoint, consider the required cutting depth and shape to confirm this saw meets the job needs, particularly for deep plunge cuts or square corners without overcuts. Verify that a hydraulic power unit available on site matches the saw’s flow, pressure, and return-line requirements. Hose length and routing should be planned to allow clear operator access with minimal risk of hose kinks or abrasion. Check whether any leverage accessories—such as a Wallwalker—may be needed or offered to improve stability and cutting control for the specific application. The diamond chain type and Stretch Reduction System influence chain durability and adjustment frequency, so inspect the chain condition prior to use. For work near water or sensitive environments, verify if the hydraulic power unit can run on biodegradable or environmentally acceptable hydraulic oil to help reduce impact in the event of leaks.

Setup Notes

Ensure the hydraulic power unit is positioned so its engine exhaust source is away from the immediate work face, which is particularly important in enclosed or poorly ventilated areas. Confirm hose connections and couplers are secure to handle both the supply and return flow of hydraulic oil, which returns to the tank for cooling and repressurization. After use, clean concrete slurry, dust, and debris from the chain saw, inspecting the chain, bar, couplers, and hose fittings before the next job to support reliable operation. Planning hose routing and access is essential to avoid kinks and abrasion during cutting. If using this saw in wet conditions, thoroughly rinse the tool with clean fresh water—not saltwater—to remove slurry and debris. This supports tool longevity but does not replace scheduled maintenance procedures.
