CS Unitec 12" Threaded Core Barrel – 10" diameter

CS Unitec 12" Threaded Core Barrel – 10" diameter Product Guide

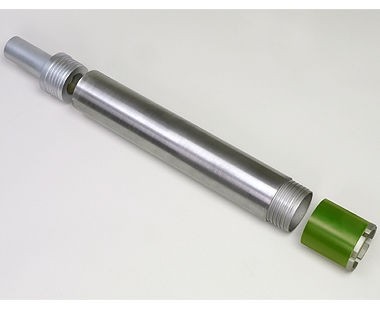

This product is a threaded core barrel designed for use with diamond core bits, specifically sized at 10 inches in diameter and 12 inches in length. It solves the problem of drilling deep, precise holes in reinforced concrete and masonry materials where a longer core barrel is needed to reach greater depths while maintaining bit alignment and stability.

Threaded core barrels like this are commonly used with electric, pneumatic, or hydraulic core drill rigs. The barrel threads directly onto compatible diamond core bits and extends the drilling depth beyond what the bit alone can achieve. This allows for deep core drilling applications such as creating openings for plumbing, electrical conduit, or structural analysis. From a rental and user perspective, ensuring compatibility with the drill rig and correct threading to the bit is essential to avoid equipment damage or drilling issues.

Where This Is Used

• Deep core drilling operations in reinforced concrete
• Masonry drilling for structural or utility penetrations
• Construction, demolition, and renovation projects requiring precise hole depth extension

Key Details

Selection Notes

When selecting a threaded core barrel, verify the diameter matches the core bit intended for use. The 10" diameter must correspond with the bit’s diameter to maintain accurate drilling dimensions. Additionally, confirm that the barrel length meets the depth requirements of the hole without overextending beyond the drill rig’s capabilities. The segment thickness (.250" for 7" through 10" diameters) is an important factor for durability, especially when drilling tough reinforced concrete. Ensure the drill rig provides adequate power, torque, and proper feed rate for the bit and barrel combination to prevent damage or inefficient drilling.

Barrel Setup Notes

Proper setup includes securely threading the barrel onto the corresponding core bit, ensuring no cross-threading occurs which could damage the barrel or bit. Check that all threaded connections are clean and free of debris before assembly. After assembly, verify the entire drilling assembly spins freely without wobble. Proper torque on the threaded connection will maintain seal integrity and prevent slurry leakage during drilling. Planning for slurry management is also important; ensure appropriate water supply and containment are available to control drilling debris and maintain visibility. After use, clean slurry and concrete dust from threads and inspect for damage or wear to avoid setup issues on subsequent jobs.
