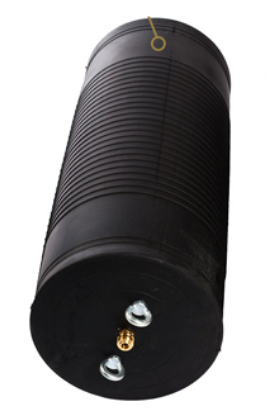

Sava 523941 24"-48" Multi-Size Inflatable Pipe Plug Product Guide
Pipe Plug Selection Notes
This Sava inflatable pipe plug covers a nominal pipe diameter range from 24" to 48", offering flexibility across multiple pipe sizes within that range. When selecting this plug, confirm the exact pipe diameter so the plug fits tightly within the specified range since inflation pressure and backpressure limits depend on the precise diameter in use. The plug’s reinforced NR-SBR rubber with Kevlar cording provides tensile strength, but the pipe wall condition and surface irregularities must be checked to confirm correct seating and sealing. Confirm backpressure against the size-specific chart or manual for the selected pipe diameter, and keep that check separate from the specified inflation pressure.
Pipe Access And Setup Planning
Plan access to the pipe so the plug can be inserted smoothly and inflated without obstruction. Inspect the plug thoroughly for any cuts, abrasions, or rubber damage before use, especially at larger sizes where damage risk is higher. Use a protective sleeve if the pipe’s interior is rough or contains debris to avoid tearing the rubber during insertion or retrieval. Maintain the specified inflation pressure by regularly monitoring through the standard 1/4" male inflation fitting and avoid leaving the plug inflated and unattended for long periods.
|
All SAVA inflatable pipe plugs are manufactured in Slovenia. SAVA is one of Europe's largest manufacturers of advanced rubber products. These plugs are molded of special NR-SBR rubber, reinforced with Kevlar tire cording. All pipe plugs are test-designed at three times their working pressure (required inflation pressure) to ensure durability and safety. |
SAVA Commercial Series Inflatable Pipe Plugs. Small and lightweight, these plugs are available with or without bypass. Use these economical and lightweight inflatable pipe plugs for buildings and factories or wherever a shorter pipe plug is required. SAVA commercial plugs all use standard tire valves for inflation. SAVA Municipal Series Inflatable Pipe Plugs with Bypass. Bypass plugs can be used in any application that a regular blocking pipe plug can, but gives you the added capability of removing the bypass cap to allow for flow-through testing. |
SAVA Municipal Series Inflatable Pipe Plugs. Industry leading plugs are tough yet flexible and lightweight. Their easy handling make these plugs the first choice among installers. SAVA Pillow-Style Inflatable Pipe Plugs. Versatile and durable pillow plugs are ideal for large pipes where access is limited. When deflated, they can be folded up and inserted through a standard manhole, then inflated. Standard sizes range from 2' to 9' in diameter, with or without bypass for testing and flow through. Generally, a pillow shaped pipe pipe plug can be inserted through an opening 1/3 the diameter of the pipe. |
ALL SAVA INFLATABLE PIPE PLUGS ARE AVAILABLE IN CHEMICAL RESISTANT CHLOROPRENE VERSIONS. CALL FOR DETAILS.
All SAVA products are manufactured in Slovenia. SAVA is one of Europe's largest manufacturers of advanced rubber products.
For More SAVA Products, Click Here!
THE RENTAL TOOLS ONLINE ADVANTAGE
RENTAL TOOLS ONLINE is the preferred (and often only!) source for professional-grade inflatable pipe plugs like this Sava 24"-48" Multi-Size Inflatable Pipe Plug from SAVA, providing a broad range of specialized industrial equipment for rent for heavy-duty projects all over the world. We're proud to be the industrial equipment & tool rental company professionals rely on to provide the quality brand name tools you need to successfully complete your project - on budget and on time.| SKU | 101117-0010 |
|---|---|
| Weight | 100 |
| Country of Manufacture | Slovenia |
| Mfr. Model Number | 523941 |
| Link to User Manual | SAVA Pipe Plug User Manual |
| Link to Schematics | x |
| Link To Catalog | SAVA Pipe Plug Catalog |
| Technical Specifications | Working plug size: 24" - 48" 22psi. Max Inlet Pressure. |
| Free Shipping | No |
Product Questions
