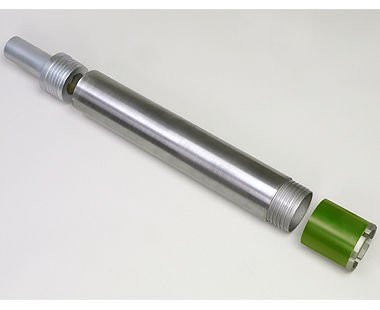

CS Unitec 24" Threaded Core Barrel – 1" diameter

CS Unitec 24" Threaded Core Barrel – 1" diameter Product Guide

The CS Unitec 24" Threaded Core Barrel with a 1" diameter is a specialized accessory designed for deep drilling applications in reinforced concrete and masonry. It addresses the challenge of precise, efficient drilling where a long reach and reliable core extraction is required, enabling operators to achieve clean boreholes in demanding industrial and construction environments.

This type of core barrel is commonly used with electric, pneumatic, or hydraulic drill rigs, where it is threaded onto a compatible core bit and drill rod assembly. It extends the drilling depth beyond standard bit lengths by providing a rigid, threaded section that guides and collects the core sample during the drilling process. Rental use often includes heavy-duty drilling tasks such as installing anchors, conduits, or utilities where tough materials must be penetrated deep below the surface.

Where This Is Used

• Deep coring in reinforced concrete structures such as bridge decks, walls, and floors
• Masonry drilling for utility installations and mechanical fasteners
• Industrial demolition and renovation projects requiring precise core extraction

Key Details

Selection Notes

From a selection standpoint, verify the diameter of the core bit and barrel matches the drill rig’s capabilities and the job’s specified hole size. The 1" threaded connection must be compatible with the rig’s chuck and rod threading to ensure secure assembly and effective torque transfer. Consider the drilling depth needed and confirm the barrel length complements the bit length to reach required depths. Also, confirm the drilling method planned is suitable for the application–electric, pneumatic, or hydraulic rigs may vary in torque and feed rates, affecting performance. For jobs involving dense or heavily reinforced materials, a durable threaded barrel like this reduces the risk of breakage or binding deep in the hole.

Drill Setup Notes

Ensure the assembly is tightly threaded and checked for wear before operation to prevent loosening during drilling. Mounting the barrel securely reduces vibration and improves core recovery quality. Verify that the drill rig provides adequate torque and feed control for deep barrel usage. For pneumatic or hydraulic rigs, confirm proper pressure and flow settings to maintain consistent drill speed and avoid stalling. Maintain clean water supply or slurry management when wet drilling to reduce heat, prevent bit and barrel damage, and improve core extraction. Clear debris frequently and inspect the threads for damage or contamination that might impair a secure fit.
