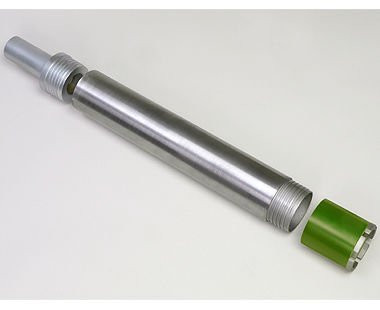

CS Unitec 24" Threaded Core Barrel – 10" diameter Product Guide

This product is a threaded diamond core barrel used for deep drilling applications in reinforced concrete and masonry. It addresses the need for precise, efficient extraction of large diameter cores where structural integrity and material analysis or removal are critical.

Threaded core barrels like this one are commonly employed on electric, pneumatic, and hydraulic drill rigs in construction, renovation, and industrial settings. They provide stable bit attachment and allow for extended drilling depths by connecting multiple barrel sections. Their design supports demanding core drilling tasks involving tough materials while maintaining alignment and efficient segment wear.

Where This Is Used

• Heavy-duty construction and structural renovation projects requiring large diameter core samples.
• Concrete and masonry drilling for utility penetrations, pipe and wire installations, or structural inspections.
• Infrastructure maintenance involving bridge decks, tunnels, and precast elements where deep or layered drilling is necessary.

Key Details

Selection Notes

When selecting a threaded core barrel of this size, verify compatibility with the existing drill rig and bit threads. The segment thickness and core diameter must match the job’s material hardness and core size requirements. Because threaded barrels connect in series for extended depths, confirming the barrel length and thread pitch aligns with drilling depth and rig capacity is essential. Check whether the rig’s power source—electric, pneumatic, or hydraulic—can deliver the sustained performance needed for deep drilling. For jobs involving heavy reinforcement or very hard masonry, thicker segments like the 0.250" used here help maintain cutting efficiency and segment life.

Drill Setup Notes

Plan for mounting stability and proper bit alignment to prevent wobbling or uneven wear. When assembling multiple barrels, ensure threads are clean and properly lubricated to facilitate quick changes and reduce wear. Core barrels should be paired with compatible drill bits and rigs that can handle the torque and thrust without strain. Maintain an appropriate water supply or slurry management system to cool the bit, control dust, and assist in removing debris from the hole. Inspect threads regularly for damage before use to prevent drill rod binding or breakage. For electric and hydraulic setups, verify flow or power levels to support continuous drilling at the required depth and diameter.
