CS Unitec 24" Threaded Core Barrel – 6" diameter

CS Unitec 24" Threaded Core Barrel – 6" diameter Product Guide

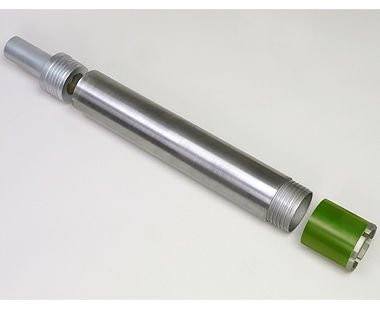

The CS Unitec 24" Threaded Core Barrel with a 6" diameter is a specialized drilling accessory designed for deep core drilling applications in reinforced concrete and masonry materials. The product addresses the challenge of obtaining large-diameter, deep cylindrical cores for inspection, installation, or removal purposes, especially when precise core size and depth control are required.

This type of core barrel is commonly used with electric, pneumatic, or hydraulic drill rigs that accommodate threaded core bits and barrels. It attaches to compatible drill heads allowing the operator to incrementally drill through highly abrasive or reinforced industrial materials, extracting intact core samples or creating openings for structural work. The threaded design provides a secure and stable connection between the barrel and the core bit or drill rig, enabling extended reach and dependable core recovery in demanding jobsite conditions.

Where This Is Used

• Construction sites requiring precision core drilling in reinforced concrete or masonry
• Infrastructure renovation or inspection projects needing intact core samples
• Heavy industrial settings where deep drilling in tough materials is necessary
• Jobs demanding use of electric, pneumatic, or hydraulic drilling rigs compatible with threaded core barrels

Key Details

Selection Notes

From a selection standpoint, the critical factors include matching the barrel diameter and length to the core bit and drill rig capabilities as well as the intended drilling depth and material type. The 6" diameter size suits mid-range hole requirements, often preferred when moderate core size is needed for analysis or conductive openings. The 24" length supports extended core retrieval depths but must be compatible with rig horsepower and torque ratings. It is important to confirm that the threaded connection on the barrel aligns with the drill rig spindle and core bit dimensions to prevent loosening or damage during operation. Additionally, consider the segment height of the core bit, particularly for abrasive reinforced concrete, to optimize drilling speed and bit life.

Drill Setup Notes

Proper assembly of the core barrel with the selected bit and drill rig is essential. Check that the threads are clean and free of debris before attaching to ensure a tight fit. When drilling, stabilize the rig and barrel assembly to minimize bit wander and ensure accurate core extraction. Prepare for water or slurry management if wet drilling to control dust and aid bit cooling. After use, clean the barrel thoroughly to remove slurry and debris and inspect threads and segment wear to confirm readiness for the next operation.
