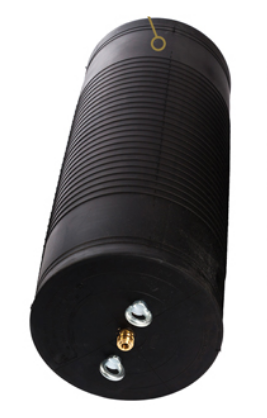

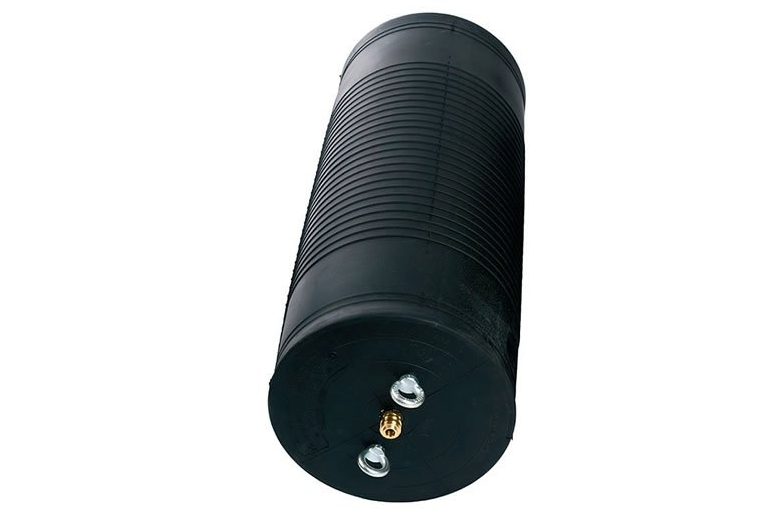

Sava 545467 30"-60" Multi-Size High Performance Inflatable Pipe Plug Product Guide
Pipe Plug Selection Notes
The Sava 545467 covers a broad nominal pipe size range from 30 to 60 inches, allowing one plug to serve multiple diameters within this span. The plug's construction from special NR-SBR rubber reinforced with Kevlar tire cord adds tensile strength and abrasion resistance, enhancing performance in industrial piping systems. Confirm backpressure against the size-specific chart or manual for the selected pipe diameter, and keep that check separate from the specified inflation pressure. This plug is rated for high performance applications but check pipe condition and surface integrity before selection to reduce risk of leaks or damage during inflation.
Inflation And Blocking Planning
Before deployment, inspect the plug carefully for any cuts, abrasions, or rubber damage, as such defects increase the risk of failure during use. Use a protective sleeve if the pipe interior is rough or contains debris that could abrade the plug during insertion or service. Inflate the plug to the specified inflation pressure and maintain this pressure throughout the job, monitoring regularly as the plug should not be left inflated and unattended for extended periods. Blocking or restraint arrangements should be planned in accordance with all user and safety manuals to address potential plug displacement from backpressure.
|
All SAVA inflatable pipe plugs are manufactured in Slovenia. SAVA is one of Europe's largest manufacturers of advanced rubber products. These plugs are molded of special NR-SBR rubber, reinforced with Kevlar tire cording. All pipe plugs are test-designed at three times their working pressure (required inflation pressure) to ensure durability and safety. |
SAVA Commercial Series Inflatable Pipe Plugs. Small and lightweight, these plugs are available with or without bypass. Use these economical and lightweight inflatable pipe plugs for buildings and factories or wherever a shorter pipe plug is required. SAVA commercial plugs all use standard tire valves for inflation. SAVA Municipal Series Inflatable Pipe Plugs with Bypass. Bypass plugs can be used in any application that a regular blocking pipe plug can, but gives you the added capability of removing the bypass cap to allow for flow-through testing. |
SAVA Municipal Series Inflatable Pipe Plugs. Industry leading plugs are tough yet flexible and lightweight. Their easy handling make these plugs the first choice among installers. SAVA Pillow-Style Inflatable Pipe Plugs. Versatile and durable pillow plugs are ideal for large pipes where access is limited. When deflated, they can be folded up and inserted through a standard manhole, then inflated. Standard sizes range from 2' to 9' in diameter, with or without bypass for testing and flow through. Generally, a pillow shaped pipe pipe plug can be inserted through an opening 1/3 the diameter of the pipe. |
ALL SAVA INFLATABLE PIPE PLUGS ARE AVAILABLE IN CHEMICAL RESISTANT CHLOROPRENE VERSIONS. CALL FOR DETAILS.
All SAVA products are manufactured in Slovenia. SAVA is one of Europe's largest manufacturers of advanced rubber products.
For More SAVA Products, Click Here!
THE RENTAL TOOLS ONLINE ADVANTAGE
RENTAL TOOLS ONLINE is the preferred (and often only!) source for professional-grade inflatable pipe plugs like this Sava 30"-60" Multi-Size High Performance Inflatable Pipe Plug from SAVA, providing a broad range of specialized industrial equipment for rent for heavy-duty projects all over the world. We're proud to be the industrial equipment & tool rental company professionals rely on to provide the quality brand name tools you need to successfully complete your project - on budget and on time.| SKU | 123559 |
|---|---|
| Weight | 112 |
| Country of Manufacture | Slovenia |
| Mfr. Model Number | 545467 |
| Link to User Manual | SAVA Pipe Plug User Manual |
| Link to Schematics | x |
| Link To Catalog | SAVA Pipe Plug Catalog |
| Technical Specifications | Working plug size: 30"-60" 22psi. Max input pressure. |
| Free Shipping | No |
