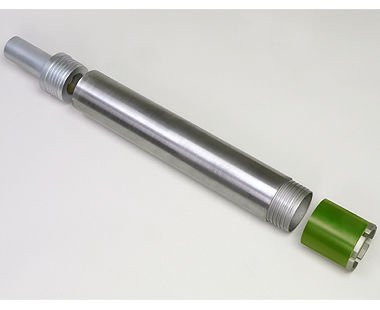

CS Unitec 36" Threaded Core Barrel – 10" diameter

CS Unitec 36" Threaded Core Barrel – 10" diameter Product Guide

The CS Unitec 36" Threaded Core Barrel with a 10" diameter is a specialized accessory designed for deep drilling in reinforced concrete and masonry. Its primary function is to facilitate the removal of concrete cores during drilling operations, particularly in applications where precise, deep holes are required. This core barrel enables compatibility with various drill rigs through its threaded connection, accommodating electric, pneumatic, or hydraulic power sources depending on the overall drilling setup.

In practical rental and jobsite contexts, this type of threaded core barrel is essential when working with powerful core drills to extract cylinders of concrete or masonry cleanly and efficiently. It is installed between the drill rig and the diamond core bit to extend drilling depth capacity beyond what a core bit alone can achieve. This barrel's robust design manages slurry flow and structural integrity during the drilling process, ensuring efficient core removal while maintaining rig stability. Selecting the correct barrel length and diameter matching the bit and rig requirements is critical to successful drilling operations.

Where This Is Used

• Construction sites requiring deep core drilling in reinforced concrete structural elements.
• Masonry drilling for installations such as plumbing, electrical conduit, or anchoring hardware.
• Heavy industrial or infrastructure projects demanding precise drilling for sampling or penetrations.

Key Details

Selection Notes

When selecting a threaded core barrel for deep drilling tasks, confirm that the diameter matches the core bit to maintain drilling efficiency and structural integrity of the core sample. The 10" diameter barrel corresponds to bits with a .250" segment height, suited for heavy-duty drilling in reinforced concrete. The 36" length allows extended drilling depth while controlling slurry flow and supporting the core during extraction. Important practical considerations include ensuring the drill rig used is compatible with threaded accessories of this size and confirming that the barrel thread matches that of the core bit and rig spindle. For jobs requiring longer drill depths, longer barrels or multiple barrels may be needed, but ensure secure threaded connections to prevent disassembly during operation.

Drill Setup Notes
