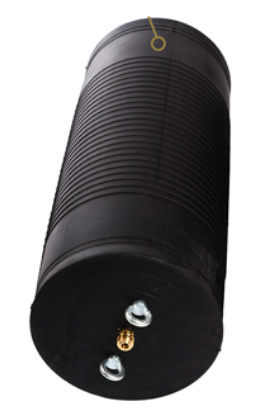

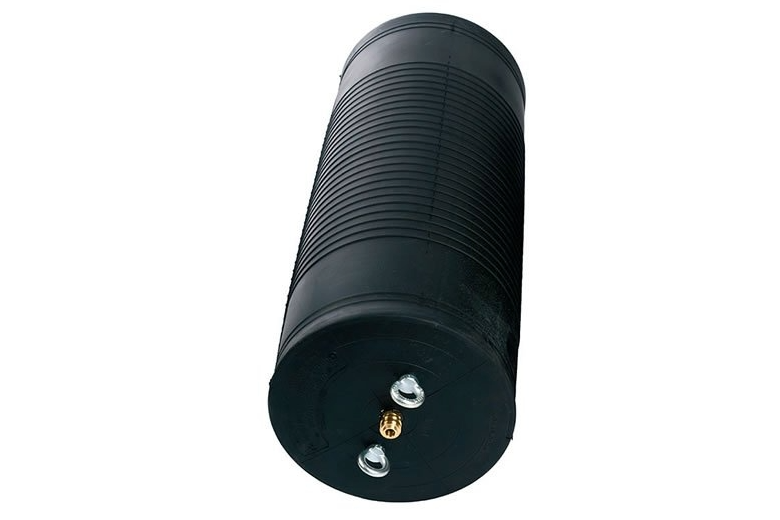

Sava 545785 40"-96" Multi-Size High Performance Inflatable Pipe Plug Product Guide
Pipe Plug Selection Notes
The Sava 545785 covers a wide nominal pipe size range from 40 to 96 inches, which provides flexibility when one plug must serve different pipe diameters. Because this is a high performance inflatable model, selection must consider the actual pipe diameter within the stated range for correct inflation pressure and backpressure ratings. The reinforced NR-SBR rubber with Kevlar tire cording supports industrial applications involving varying backpressure demands. The multi-size capability means this plug is adaptable but the specific pipe size must be matched to the manufacturer’s size-to-pressure charts to verify compatibility and safety.
Inflation And Blocking Planning
Pre-use inspection of the rubber surface is important to check for cuts, abrasions, or other damage that could compromise inflation integrity. The plug’s 1/4" male inflation fitting requires careful routing and pressure monitoring. Inflation pressure must be maintained at the recommended level throughout use, avoiding lengthy unattended inflation periods. Planning should also include securing or blocking provisions to counteract expected backpressure and pipe flow forces, as detailed in the Sava user manual.
|
All SAVA inflatable pipe plugs are manufactured in Slovenia. SAVA is one of Europe's largest manufacturers of advanced rubber products. These plugs are molded of special NR-SBR rubber, reinforced with Kevlar tire cording. All pipe plugs are test-designed at three times their working pressure (required inflation pressure) to ensure durability and safety. |
SAVA Commercial Series Inflatable Pipe Plugs. Small and lightweight, these plugs are available with or without bypass. Use these economical and lightweight inflatable pipe plugs for buildings and factories or wherever a shorter pipe plug is required. SAVA commercial plugs all use standard tire valves for inflation. SAVA Municipal Series Inflatable Pipe Plugs with Bypass. Bypass plugs can be used in any application that a regular blocking pipe plug can, but gives you the added capability of removing the bypass cap to allow for flow-through testing. |
SAVA Municipal Series Inflatable Pipe Plugs. Industry leading plugs are tough yet flexible and lightweight. Their easy handling make these plugs the first choice among installers. SAVA Pillow-Style Inflatable Pipe Plugs. Versatile and durable pillow plugs are ideal for large pipes where access is limited. When deflated, they can be folded up and inserted through a standard manhole, then inflated. Standard sizes range from 2' to 9' in diameter, with or without bypass for testing and flow through. Generally, a pillow shaped pipe pipe plug can be inserted through an opening 1/3 the diameter of the pipe. |
ALL SAVA INFLATABLE PIPE PLUGS ARE AVAILABLE IN CHEMICAL RESISTANT CHLOROPRENE VERSIONS. CALL FOR DETAILS.
All SAVA products are manufactured in Slovenia. SAVA is one of Europe's largest manufacturers of advanced rubber products.
For More SAVA Products, Click Here!
THE RENTAL TOOLS ONLINE ADVANTAGE
RENTAL TOOLS ONLINE is the preferred (and often only!) source for professional-grade inflatable pipe plugs like this Sava 40"-96" Multi-Size High Performance Inflatable Pipe Plug from SAVA, providing a broad range of specialized industrial equipment for rent for heavy-duty projects all over the world. We're proud to be the industrial equipment & tool rental company professionals rely on to provide the quality brand name tools you need to successfully complete your project - on budget and on time.| SKU | 123561 |
|---|---|
| Weight | 706 |
| Country of Manufacture | Slovenia |
| Mfr. Model Number | 545785 |
| Link to User Manual | SAVA Pipe Plug User Manual |
| Link to Schematics | x |
| Link To Catalog | SAVA Pipe Plug Catalog |
| Technical Specifications | Working plug size: 40"-96" 22psi. Max input pressure. |
| Free Shipping | No |
