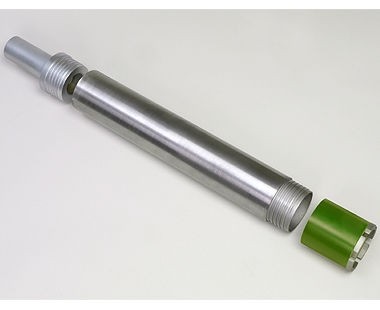

CS Unitec 48" Threaded Core Barrel – 4" diameter Product Guide

The CS Unitec 48" Threaded Core Barrel is a specialized drilling accessory designed to facilitate deep drilling in reinforced concrete and masonry structures. It addresses the job problem of achieving extended drill depths beyond standard core bit lengths, enabling operators to bore precise holes for anchors, plumbing, electrical conduits, or structural investigations.

This type of core barrel is commonly used with electric, pneumatic, or hydraulic drill rigs equipped with compatible threaded cores. When attached in sequence with core bits and extension barrels, it allows the achievement of drilling depths up to 48 inches. The barrel accommodates diamond segments suited for hard materials, making it suitable for demanding industrial or construction environments. Rental and support considerations often focus on verifying rig compatibility, secure threaded connections, and effective slurry and water management during operation.

Where This Is Used

• Deep drilling in reinforced concrete foundations and walls.
• Installation of plumbing, electrical, or mechanical penetrations in masonry.
• Core sampling for structural testing and material analysis.

Key Details

Selection Notes

When selecting a core barrel extension for deep drilling, it is important to match the diameter and threading of the barrel to the drill rig and core bit in use. The 4" diameter of this barrel corresponds to a common core bit size suitable for moderate to large holes in concrete structures. Consider the overall depth needed and whether multiple barrels or extensions are required. Confirm physical access and clearance around the drill location to accommodate the length of the barrel and rig setup. Effective water supply and slurry management are essential to maintain drill bit cutting efficiency and minimize wear.

Drill Setup Notes

Secure threaded connections between the core barrel, core bit, and drill rig spindle are critical for proper drill alignment and efficient operation. Ensure all threads are clean and undamaged before assembly. Plan for adequate water flow to the drill bit to cool segments and flush slurry from the hole, which helps maintain drilling speed and reduces bit segment wear. When drilling to maximum depths, confirm the rig and hose lengths support the full barrel length and allow for safe operator positioning. Regular inspection and cleaning of the barrel after use will help prevent slurry buildup inside the barrel and maintain smooth rotation.
