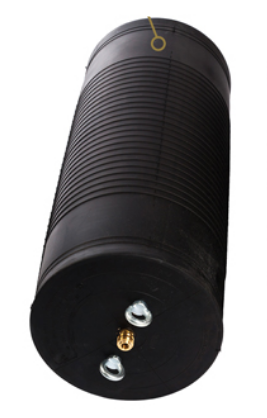

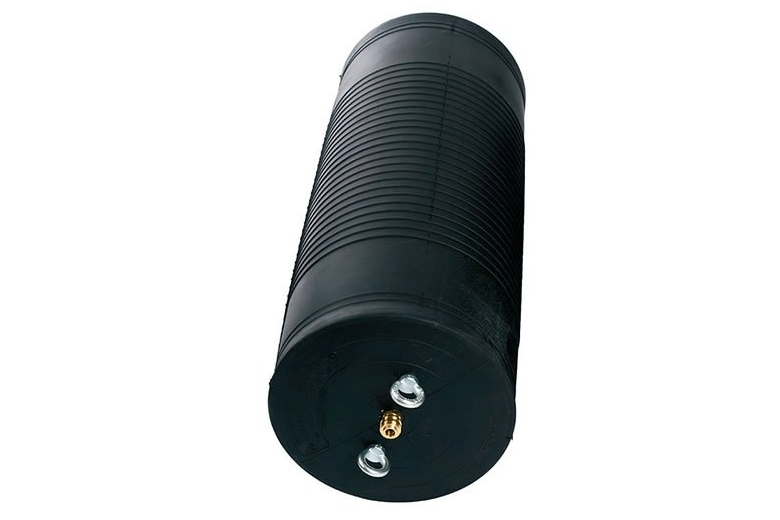

Sava 545458 8"-16" Multi-Size High Performance Inflatable Pipe Plug Product Guide
Pipe Plug Selection Notes
Choosing the correct pipe plug for your project involves verifying the pipe diameter within the 8"-16" multi-size range that this plug covers. The plug’s NR-SBR rubber with Kevlar reinforcement supports high-performance blocking applications where elevated backpressure conditions are expected. Confirm backpressure against the size-specific chart or manual for the selected pipe diameter, and keep that check separate from the specified inflation pressure. Also consider that this inflatable plug uses a standard 1/4" male inflation fitting, which matches common inflation equipment while providing robust sealing properties due to its reinforced construction.
Pipe Access And Setup Planning
Before deployment, inspect the plug for any surface damage such as cuts or abrasions, especially on the rubber surface, since these can lead to failure under pressure. Plan for using a protective sleeve if the pipe interior is rough or irregular to reduce wear during insertion and retrieval. Inflation pressure must be monitored and maintained as specified; this model is test-designed at three times its working pressure and should not be left inflated unattended for extended periods. Consider blocking or restraint measures based on the job’s pressure conditions and follow manufacturer or site-specific user manual instructions.
|
All SAVA inflatable pipe plugs are manufactured in Slovenia. SAVA is one of Europe's largest manufacturers of advanced rubber products. These plugs are molded of special NR-SBR rubber, reinforced with Kevlar tire cording. All pipe plugs are test-designed at three times their working pressure (required inflation pressure) to ensure durability and safety. |
SAVA Commercial Series Inflatable Pipe Plugs. Small and lightweight, these plugs are available with or without bypass. Use these economical and lightweight inflatable pipe plugs for buildings and factories or wherever a shorter pipe plug is required. SAVA commercial plugs all use standard tire valves for inflation. SAVA Municipal Series Inflatable Pipe Plugs with Bypass. Bypass plugs can be used in any application that a regular blocking pipe plug can, but gives you the added capability of removing the bypass cap to allow for flow-through testing. |
SAVA Municipal Series Inflatable Pipe Plugs. Industry leading plugs are tough yet flexible and lightweight. Their easy handling make these plugs the first choice among installers. SAVA Pillow-Style Inflatable Pipe Plugs. Versatile and durable pillow plugs are ideal for large pipes where access is limited. When deflated, they can be folded up and inserted through a standard manhole, then inflated. Standard sizes range from 2' to 9' in diameter, with or without bypass for testing and flow through. Generally, a pillow shaped pipe pipe plug can be inserted through an opening 1/3 the diameter of the pipe. |
ALL SAVA INFLATABLE PIPE PLUGS ARE AVAILABLE IN CHEMICAL RESISTANT CHLOROPRENE VERSIONS. CALL FOR DETAILS.
All SAVA products are manufactured in Slovenia. SAVA is one of Europe's largest manufacturers of advanced rubber products.
For More SAVA Products, Click Here!
THE RENTAL TOOLS ONLINE ADVANTAGE
RENTAL TOOLS ONLINE is the preferred (and often only!) source for professional-grade inflatable pipe plugs like this Sava 8"-16" Multi-Size High Performance Inflatable Pipe Plug from SAVA, providing a broad range of specialized industrial equipment for rent for heavy-duty projects all over the world. We're proud to be the industrial equipment & tool rental company professionals rely on to provide the quality brand name tools you need to successfully complete your project - on budget and on time.| SKU | 123555 |
|---|---|
| Weight | 9 |
| Country of Manufacture | Slovenia |
| Mfr. Model Number | 545458 |
| Link to User Manual | SAVA Pipe Plug User Manual |
| Link to Schematics | x |
| Link To Catalog | SAVA Pipe Plug Catalog |
| Technical Specifications | Working plug size: 8" - 16" 45psi. Max input pressure. |
| Free Shipping | No |
