Cherne(model: 314728) Now available at one of the best prices anywhere on the internet or in-store!
- Description
-
Details

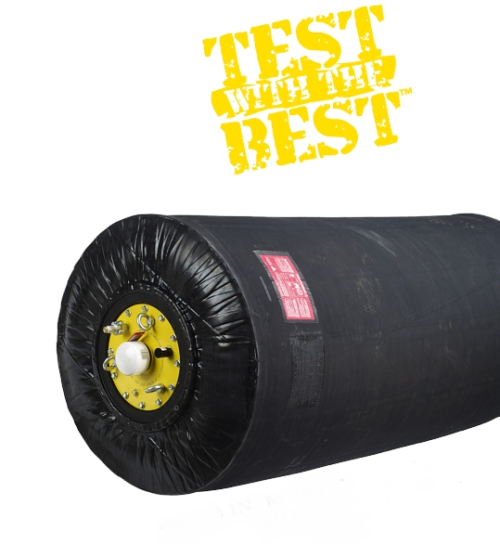

Cherne® Muni-Ball Plugs are designed for blocking flow for maintenance in sanitary and storm sewer systems. Available in a variety of sizes and configurations, Cherne test ball plugs are made from tough, tear-resistant natural rubber and offer a superior expansion rate. Its field replaceable pressure relief valve prevents over-inflation. Cherne Industries is a global leader in pipe plugs, blocking and testing.
Key Features:
48-72 in. Muni-Ball with 4" Bypass
Blocks flow in sanitary and storm sewer system maintenance
Optimized design offers improved performance and safety
48 in. - 72 in. usage range
6 PSI maximum backpressure; 12 PSI inflation pressure
93 in. x 47.17 in. x 47.17 in.
Made from tough, tear-resistant natural rubber
Aluminum end plate minimizes rust and corrosion
3/4 in. eyebolts provide superior holding strength
Field replaceable pressure relief valve prevents over-inflation - Specifications
-
Specifications
SKU 143208 Weight 418 Country of Manufacture Mfr. Model Number 314728 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications Product Type Muni-Ball Max Back Pressure 6 PSI Deflated Length 93 in. Deflated Diameter 47.17 in. Inflation Thread 0.5 in. Inflation Pressure 12 PSI Usage Range 48 in. - 72 in. (1400 - 2450 mm) Chain Eye Bolts 0.75 in. Eyebolt Free Shipping No - Product Questions
-
