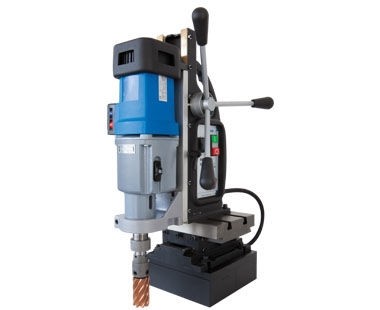

BUY THIS CS Unitec MAB 825 KTS Portable Magnetic Drills TODAY FROM RENTAL TOOLS ONLINE.
This from CS Unitec(model: MAB 825 KTS) is available at one of the best prices anywhere on the internet or in-store!- Description
-
Details
Features:

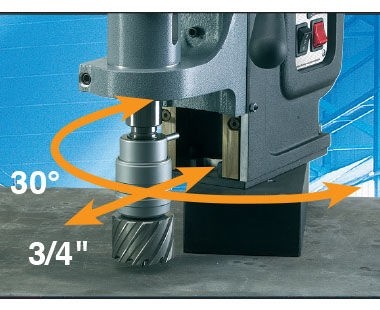

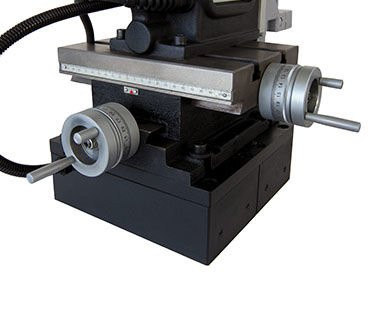

- Multi-axis positioning – ideal for a wide variety of drilling, boring and slotting applications
- Includes Chuck Collet Toolholder Set for end mills
- Servo-assisted drilling to help maintain feed pressure during operation
- Integrated cutting oil reservoir and automatic internal lubrication
Safety:
- SafeMag™: Green/Red LED magnetic force indicator for safe operation
- CoolMag™: Magnet overheating protection
- Simple, ergonomic arrangement of controls for one-handed operation
- Emergency-off function: electronic safety sensor shuts down drill motor if magnet loses contact with material to protect operator and equipment
- Additional Information
-
Additional Information
SKU 141625-0010 Weight 99 Country of Manufacture Germany Mfr. Model Number MAB 825 KTS Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications - Motor Power: 16 Amp / 110 Volt
- Weight: 99 lbs
- Stroke: 10"
- Hole Capacity: 3-1/8" dia.
- Twist Drill Capacity: 1-1/4" dia.
- Tapping Capacity: 1-3/16" dia.
- Milling Capacity: up to 5/8" dia. at 1" depth
- Speed: 40-110, 65-175, 140-360, 220-600 RPM
- Magnet Base Size: 8-11/16" L x 8-11/16" W

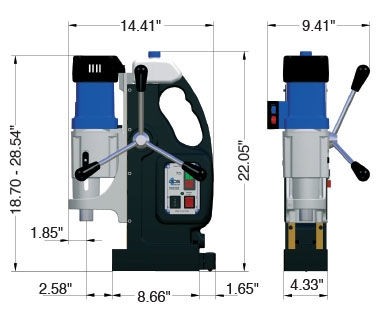

- Dimensions: 19-3/4" H x 13" L x 14-1/2" W
- Magnetic Force (1" plate): 6600 lbs
- Arbor Bore: 3/4" and 1-1/4" standard
- Spindle: MT3
- Automatic Lubrication: Included
Free Shipping No
