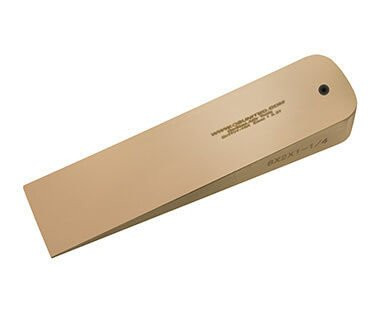

The CS Unitec Flange Wedge with Lanyard Hole – EX1101U Series is a professional-grade safety tool engineered for use in hazardous and high-risk industrial environments. Designed to minimize the risk of ignition, this non-sparking wedge is ideal for applications in petrochemical facilities, grain processing operations with explosive dust, utilities, and hazmat environments.
Manufactured from specialized non-ferrous alloys, the EX1101U Series is both non-magnetic and corrosion resistant, allowing it to be safely used around sensitive equipment and in harsh conditions. The integrated lanyard hole enhances safety and usability by enabling secure tethering during use, helping to prevent dropped tools in critical work areas.
Produced under ISO 9001:2015 certified processes and using TÜV-certified materials, these flange wedges are built to meet strict quality and safety standards. Available in a wide range of sizes and material options, the EX1101U Series delivers dependable performance across demanding industrial applications, and each tool is backed by a lifetime warranty for long-term reliability.
| Property | Aluminum-Bronze (AlBr) Alloy | Copper-Beryllium (CuBe2) Alloy |
|---|---|---|
| Zone Compatibility | Complies with ATEX Directive 1999/92/EC for Zones 0, 1, 2, 20, 21, 22, M1 & M2 | Complies with ATEX Directive 1999/92/EC for Zones 0, 1, 2, 20, 21, 22, M1 & M2 |
| Hardness | 27 HRC | 38 HRC |
| Durability | Not as durable as CuBe | Very durable due to high hardness and tensile strength |
| Magnetic Properties | Low magnetism due to minimal ferrous components; suitable for non-critical non-magnetic applications | Non-ferrous composition; ideal for applications requiring non-magnetic properties |
| Composition |
Al: 10.3% Fe: 4.5% Ni: 4.5% Other: 0.5% Cu: Balance |
Be: 1.9% Co + Ni: 0.4% Other: 0.5% Cu: Balance |
| SKU | 143523 |
|---|---|
| Weight | 1 |
| Country of Manufacture | |
| Mfr. Model Number | Ex1101U-12A |
| Link to User Manual | No |
| Link to Schematics | No |
| Link To Catalog | No |
| Technical Specifications | No |
| Free Shipping | No |
