BUY THIS DOA Super Raptor 23hp Vanguard Hydraulic Power Unit (12 gpm) TODAY FROM RENTAL TOOLS ONLINE.
This high volume hydraulic power unit from DOA (model: Super Raptor ) is available at one of the best prices anywhere on the internet or in-store!
- AI Product Guide
-
Joint Zone K0567 Super Raptor Hydraulic Power Unit 23hp Vanguard (5-12 gpm) Product Guide
How This Power Unit Fits Into A Hydraulic Tool Package
The Joint Zone Super Raptor Hydraulic Power Unit is powered by a 23hp gasoline engine and supplies a flow range of 5 to 12 gallons per minute, suited for hydraulic tools requiring higher flow rates. It provides the pressure and hydraulic output needed to operate large hydraulic tools such as pipe maintenance equipment used in civil protection and underground infrastructure. Compared to smaller electric or low-horsepower power units, the Super Raptor supports multiple or higher-demand hydraulic tools with its higher flow capacity and gasoline power source, allowing use in outdoor or remote sites without electrical power. This model’s stainless steel frame and anti-vibration mounting add durability necessary for extended or demanding work environments.
Power Unit Planning Notes
This hydraulic power unit typically ships freight on a pallet, so plan for delivery methods such as a loading dock, forklift, or liftgate. The centralized lifting hook and foldable handles provide options for positioning and transport on site, but it is important to verify lifting access and route clearance before moving the unit. Because it is gasoline powered, the unit should be positioned outdoors or in an open, ventilated area. Position the engine exhaust and muffler away from heat-sensitive surfaces like fiberglass, coatings, or hoses when used in marine or boat-deck environments. If the unit is used on a boat deck and equipped with wheels, secure it firmly to prevent rolling or shifting.
The unit includes an oil cooling system with a centrifugal fan to help maintain operating temperature during longer runs. Its hydraulic output is delivered through quick couplers on impact-resistant swivel fittings; verify hydraulic hose lengths and routing to avoid kinks, abrasion, or restricted return flow. For jobs involving very long hose runs, consider friction loss effects and plan hose diameter or power unit sizing accordingly.
For work near water or in municipal or environmentally sensitive locations, check if the hydraulic fluid requirements specify particular oil types. The standard hydraulic oil type in the unit may vary; confirm any fluid compatibility needs with a rental specialist before deployment. Routine post-use care should include cleaning debris from the unit, inspecting hoses and couplers for leaks or damage, and verifying oil levels to support longer service intervals.
- Description
-
Details

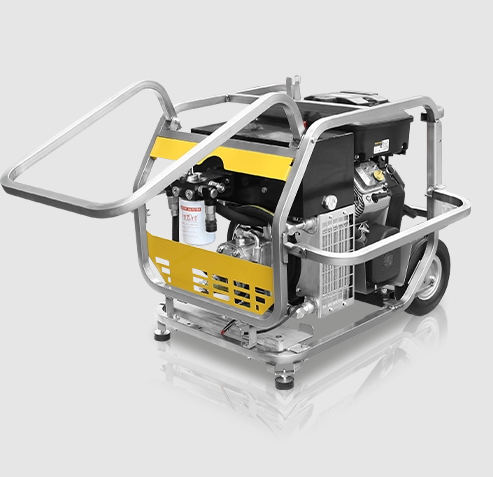

DOA Super Raptor 23HP Hydraulic Power Pack
The DOA Super Raptor 23HP Hydraulic Power Pack is a professional-grade portable hydraulic power unit designed for demanding construction, utility, municipal, marine, industrial, and emergency response applications. Powered by a reliable 23 HP Vanguard twin-cylinder gasoline engine, the Super Raptor delivers the hydraulic performance needed to operate high-flow hydraulic tools in tough jobsite environments.
Built for durability and long service life, the DOA Super Raptor features a rugged stainless steel protective frame, oversized folding handles, anti-vibration mounted components, high-efficiency hydraulic oil cooling, and impact-resistant quick couplers. This makes it an excellent choice for contractors, municipalities, utility crews, rental fleets, commercial divers, and industrial maintenance teams that need dependable portable hydraulic power.
Key Features
- Powered by a 23 HP Vanguard gasoline engine
- Electric start for convenient operation
- Standard hydraulic output of 20–45 L/min
- Operating pressure of 150 Bar
- Heavy-duty stainless steel protective frame
- Large folding handles for easier transport and storage
- Anti-vibration mounted engine and hydraulic components
- High-efficiency hydraulic oil cooling system
- Centrifugal cooling fan for demanding continuous-use applications
- Swivel-mounted, impact-resistant flat-face quick couplers
- Central lifting hook for safe loading and positioning
- Custom flow and pressure configurations available upon request
Common Applications
The DOA Super Raptor 23HP Hydraulic Power Pack is ideal for powering a wide range of hydraulic tools and equipment, including:
- Hydraulic submersible pumps
- Hydraulic trash pumps
- Hydraulic breakers and demolition hammers
- Hydraulic core drills
- Hydraulic cut-off saws
- Hydraulic chainsaws
- Hydraulic grinders
- Hydraulic post drivers
- Hydraulic rescue tools
- Hydraulic augers
- Hydraulic winches
- Specialized industrial hydraulic equipment
Industries Served
- Municipal utility maintenance
- Water and wastewater operations
- Sewer and pipeline maintenance
- Heavy construction
- Bridge and infrastructure repair
- Marine construction
- Commercial diving support
- Emergency response and civil protection
- Industrial maintenance
- Rental equipment fleets
Technical Specifications
Engine Vanguard Twin-Cylinder Gasoline Engine Power 23 HP Starting System Electric Start Hydraulic Flow 20–45 L/min Operating Pressure 150 Bar Weight 130 kg / 287 lb Dimensions 85 × 60 × 65 cm / 33.5 × 23.6 × 25.6 in Standard Hose Length 15 m / 25 ft Acceleration Manual Why Choose the DOA Super Raptor 23HP?
The DOA Super Raptor 23HP stands out from standard hydraulic power packs by combining high hydraulic performance, rugged construction, and excellent jobsite reliability in one portable unit. Its stainless steel frame helps resist corrosion, while the efficient cooling system supports demanding use in harsh operating conditions.
Whether you need a hydraulic power pack for construction, utility maintenance, marine work, commercial diving, emergency response, or rental fleet use, the DOA Super Raptor 23HP delivers the power, durability, and performance professionals expect from DOA Hydraulic Tools.
- Specifications
-
Specifications
SKU 142788-0010 Weight 242 Country of Manufacture Italy Mfr. Model Number K0567 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications Weight 242 lbs / 110 kg Dimensions 33x24x26 in / 85x60x65 cm PSI OUTPUT PSI 2000 / 140 Bar HYD CONNECTIONS Single-Output PRIMARY OUTPUT 12 GPM / 45 Lpm STARTER Electric MOTOR SIZE 23 HP Gas ENGINE / MOTOR Yamaha MADE IN Italy WARRANTY 12 Months Free Shipping No - Product Questions
-
