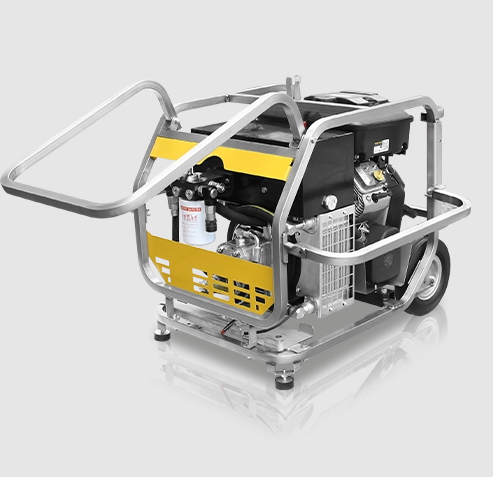

DOA K0064 Super Raptor Hydraulic Power Unit 18hp Vanguard (5-10 gpm)

DOA Super Raptor Hydraulic Power Pack
When demanding hydraulic applications require dependable performance in the harshest environments, the DOA Super Raptor Hydraulic Power Pack delivers the flow, pressure, and reliability professionals depend on. Designed and manufactured in Italy by DOA Hydraulic Tools, the Super Raptor combines an industrial-grade 18 HP Vanguard twin-cylinder gasoline engine with a rugged stainless steel frame to provide a portable hydraulic power source for construction, utility, municipal, pipeline, rescue, marine, and industrial applications.

Built for continuous operation, the DOA Super Raptor is engineered to power a wide range of hydraulic equipment including hydraulic breakers, chipping hammers, cut-off saws, chain saws, circular saws, core drills, submersible pumps, post drivers, impact wrenches, rescue tools, and other high-performance hydraulic equipment. Whether you're working on emergency repairs, utility maintenance, infrastructure projects, or remote job sites, the Super Raptor provides consistent hydraulic performance where electric power isn't available.

Professional Hydraulic Performance
The DOA Super Raptor is available with multiple hydraulic pump configurations to match the demands of your application. Depending on the pump installed, the unit can be configured to deliver approximately:

• Up to 38 L/min (10 GPM) hydraulic flow
• Operating pressures up to 180 Bar (2,610 PSI), with additional custom configurations available
• Hydraulic output optimized for numerous professional hydraulic tools
• Manual or optional automatic (POD) engine acceleration
• Recoil and electric start for dependable field operation

Because every hydraulic application has unique flow and pressure requirements, DOA offers multiple pump configurations, allowing customers to specify the ideal hydraulic output for their equipment.

Designed for Harsh Jobsite Conditions
Unlike many conventional hydraulic power units, the DOA Super Raptor is engineered specifically for demanding commercial and industrial use. Every component is designed to maximize durability while minimizing downtime.

Key design features include:

• Heavy-duty stainless steel protective frame
• Large folding carrying handles for easier transportation
• Central lifting hook for crane or hoist lifting
• Anti-vibration mounted hydraulic components
• Impact-resistant swivel-mounted hydraulic quick couplers
• High-efficiency dual radiator hydraulic oil cooling system
• Compact footprint for easier transport and storage

The advanced cooling system helps maintain hydraulic oil temperatures during extended operation, allowing the Super Raptor to perform reliably even in hot climates and continuous-duty applications.

Ideal Applications
The DOA Super Raptor is frequently used for:

• Utility construction
• Water and sewer maintenance
• Underground pipe repair
• Pipeline maintenance
• Civil protection and emergency response
• Municipal public works
• Marine and offshore operations
• Infrastructure construction
• Bridge maintenance
• Railroad maintenance
• Industrial maintenance
• Remote hydraulic tool operation

Its portability makes it an excellent choice anywhere reliable hydraulic power is needed without access to electrical service.

Compatible Hydraulic Tools
The DOA Super Raptor is capable of powering numerous hydraulic tools, including:

• Hydraulic breakers
• Chipping hammers
• Rock drills
• Core drilling systems
• Hydraulic chain saws
• Circular cut-off saws
• Hydraulic pumps
• Post drivers
• Hydraulic rescue equipment
• Hydraulic impact wrenches
• Hydraulic grinders
• Underwater hydraulic tools (application dependent)
• Specialty industrial hydraulic equipment

Its configurable hydraulic output allows contractors to match the power pack to the specific tool being used for maximum efficiency.

Technical Specifications

• Engine: Vanguard 18 HP twin-cylinder gasoline engine
• Starting System: Electric and recoil start
• Hydraulic Flow: Approximately 30–38 L/min (configuration dependent)
• Operating Pressure: Up to 180 Bar (configuration dependent)
• Acceleration: Manual or automatic (POD)
• Weight: Approximately 110 kg (243 lbs.)
• Dimensions: 85 × 60 × 65 cm
• Standard Hydraulic Hose Length: 15 meters (50 ft.)

Why Choose the DOA Super Raptor?
Professionals choose the DOA Super Raptor because it delivers:

• Italian-engineered reliability
• Heavy-duty commercial construction
• Excellent power-to-size ratio
• Outstanding cooling performance
• Configurable hydraulic flow and pressure
• Easy transportation and lifting
• Long service life
• Dependable performance in demanding environments

Whether you're powering hydraulic construction equipment, utility maintenance tools, or industrial hydraulic machinery, the DOA Super Raptor provides the professional hydraulic power needed to keep projects moving efficiently.

As an authorized DOA dealer in North America, Rental Tools Online offers expert product support, technical assistance, replacement parts, and nationwide shipping. Contact our hydraulic equipment specialists to configure the DOA Super Raptor Hydraulic Power Pack with the flow, pressure, and hydraulic connections required for your specific application.
