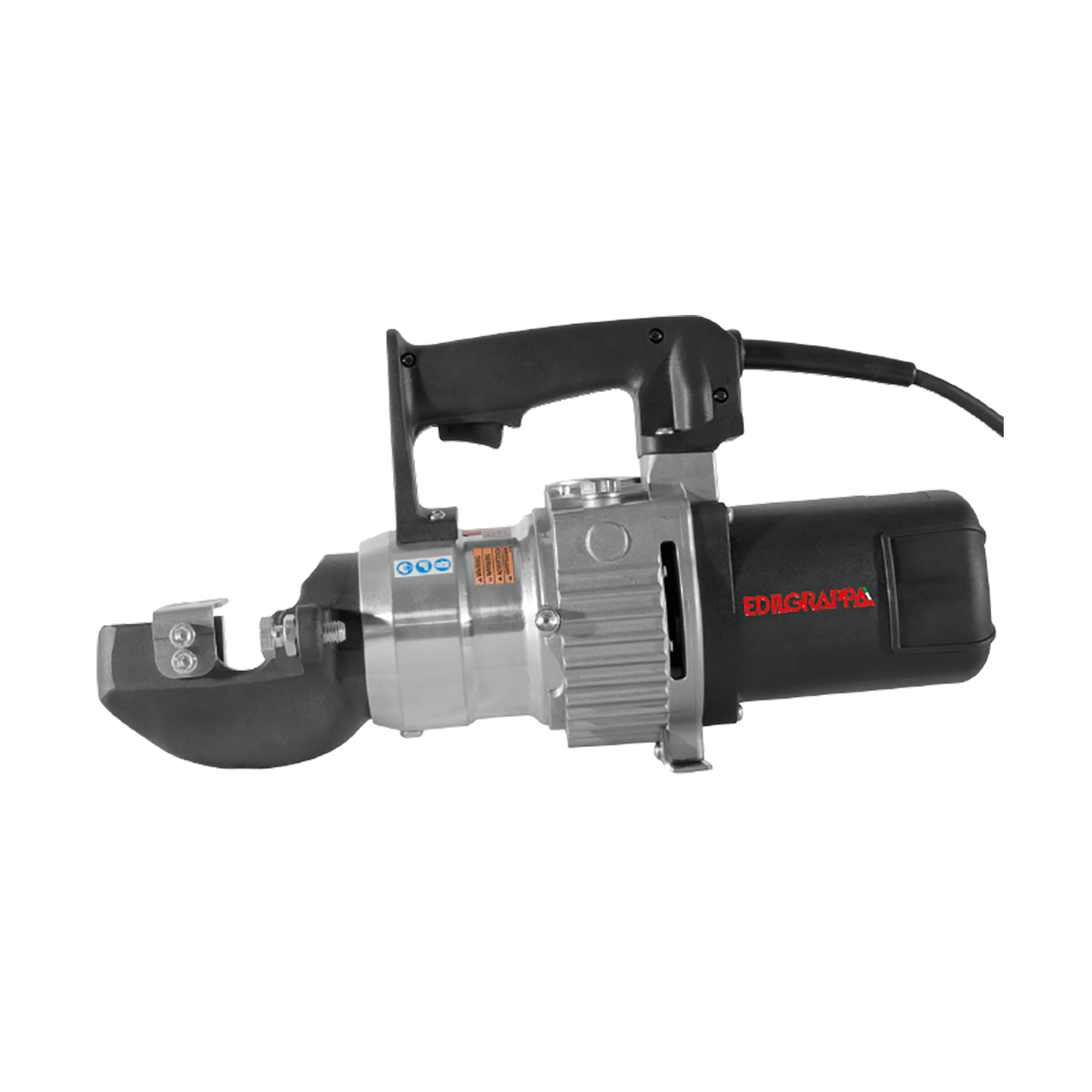

Edilgrappa T22N, Hydraulic Rod and Bar Cutter, is a hydraulic tool produced in Italy to cut rebar, round bars and threaded bars.
Its small size makes the T22N a very useful Hydraulic Rod and Bar Cutter when working in small and complicated spaces, where portable tools are needed.
Electric operation supply.
The T22N is equipped with an anti-jamming release valve.
- Additional Information
-
Additional Information
SKU 142673 Weight 29 Country of Manufacture Italy Mfr. Model Number 150.02089 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications Cutting Capacity 22 mm Cutting Force 223 kN (22.8 t) Working Pressure 58 Mpa (580 bar) Power Supply Main Motor 120V:1300W-60Hz-9.2A Cylinder Single Acting Tool Weight 29 lbs (13 kg) Dimensions L x W x H (mm) 16.25" x 4.85" x 8.3" (411 x 123 x 211mm) Free Shipping No
