CS Unitec Hand-Held Core Drill, Wet & Dry, Electric, 15 Amp, 0 - 800 & 0 - 1570 RPM, Wt: 15 lbs.

CS Unitec Hand-Held Core Drill, Wet & Dry, Electric, 15 Amp, 0 - 800 & 0 - 1570 RPM, Wt: 15 lbs. Product Guide

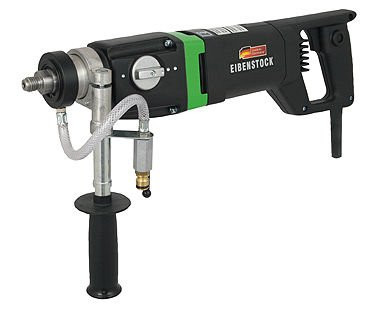

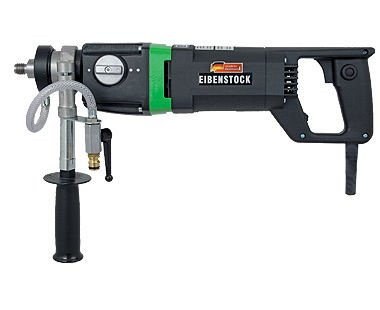

This CS Unitec hand-held core drill is an electric-powered tool designed for wet and dry concrete and masonry core drilling. It addresses the need to create precise circular holes in hard materials for plumbing, electrical conduit installation, anchoring, and sampling during construction and renovation projects.

Core drills like this one are commonly used on job sites where portable, yet powerful, drilling equipment is necessary to cut core holes without damaging surrounding material. The wet and dry operation capability allows for flexibility depending on site conditions and dust control needs. This type of handheld electric core drill is practical for on-the-go drilling, especially where a stationary rig setup is not feasible or where medium-diameter holes are required with moderate drilling speed control, enabled by the dual-speed settings.

Where This Is Used

• Construction and renovation sites for drilling holes in concrete, brick, block, and stone
• Mechanical, electrical, and plumbing (MEP) installations requiring precise pathways through structural elements
• Infrastructure projects where portable core removal is needed for inspections or retrofitting

Key Details

Selection Notes

From a selection standpoint, the deciding factors include the drilling speed needed to match material hardness and bit type, as well as the availability of electrical power at the worksite. The dual-speed control supports different drilling phases or materials. For wet drilling, ensure water source and slurry management are planned to minimize mess and maintain visibility. Consider drill weight and ergonomics since handheld operation requires operator endurance and control. Confirm the drill's compatibility with the diameter and type of core bits needed for the job, as well as the length of the bits relative to the hole depth. This drill suits medium-diameter cores where portability and versatility are priorities.

Drill Setup Notes

Set up the drill with adequate water supply if opting for wet drilling to reduce dust and cool the bit; otherwise, prepare for dry drilling with dust control measures. Confirm all electrical connections meet site safety standards. Check that the drill is fitted with the correct core bit and that the bit is securely fastened. Maintain clear hose routing or water supply lines without kinks or restrictions. Post-use, clean concrete slurry, dust, and debris from the drill and inspect the bit connection and electrical cord for wear or damage prior to the next use.
