CS Unitec END 1550 P Wet Core Drill Product Guide

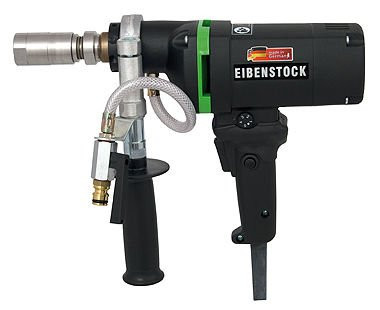

The CS Unitec END 1550 P Wet Core Drill is an electric diamond core drill designed to create precise holes in hard materials such as concrete, granite, tile, and glass. It addresses the common challenge of drilling clean, accurate openings without excessive dust, vibration, or material damage. This tool’s wet drilling capability also helps manage dust and debris during operation.

From a practical perspective, this type of wet core drill is commonly used in construction, fabrication, and installation projects where clean, straight holes are necessary for anchors, pipe penetrations, conduit passages, or mechanical chases. The integrated water supply helps keep both the drill bit and the material cool, which maintains bit life and drilling efficiency. The lightweight design allows for both handheld use and mounting on drill stands to improve stability and precision depending on the jobsite requirements.

Where This Is Used

• Concrete and reinforced concrete applications including anchor holes and penetrations
• Stone and natural stone fabrication such as granite and marble countertops
• Tile and porcelain drilling for plumbing, electrical, and HVAC installations
• Glass and ceramic drilling where precise and low-vibration cores are needed
• Renovation and new construction sites requiring controlled, dust-reduced coring

Key Details

Selection Notes

Choosing the END 1550 P involves considering the material hardness and hole size needed. The variable speed range from 1,800 to 4,400 RPM allows tuning drilling speed to match the bit diameter and substrate type. Smaller bits and softer materials typically require higher speeds, while larger bits or denser materials benefit from slower speeds to reduce heat and prolong bit life. The wet drilling feature requires a water supply; ensuring adjustable water flow is advantageous for optimizing slurry removal and bit cooling without excess mess.

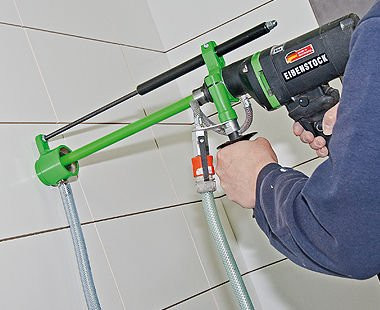

The integrated quick-change bayonet system simplifies bit swaps and core removal, which is helpful in jobs needing multiple hole sizes or bit types. The lightweight, ergonomic design supports handheld operation in areas with limited space, but pairing with an optional drill stand is recommended when working on more precise or repeated holes to maintain perpendicularity and reduce operator fatigue.

Drill Setup Notes

Before starting a job with this core drill, confirm the water source is stable and adjustable to avoid overwatering or insufficient lubrication. Inspect the bayonet attachment and stainless steel spindle for corrosion or wear before each use to maintain consistent bit engagement and prevent drill damage. GFCI protection is included but confirm power source compatibility and cord length for safe connection in the work area.

When using optional drill stands, ensure the stand provides firm mounting and easy angle adjustment to keep holes accurate. Check the drill for proper grounding and avoid using damaged cords or water leaks near electrical connectors. After use, clean concrete slurry and debris from the drill, spindle, and bayonet area to extend equipment life.
