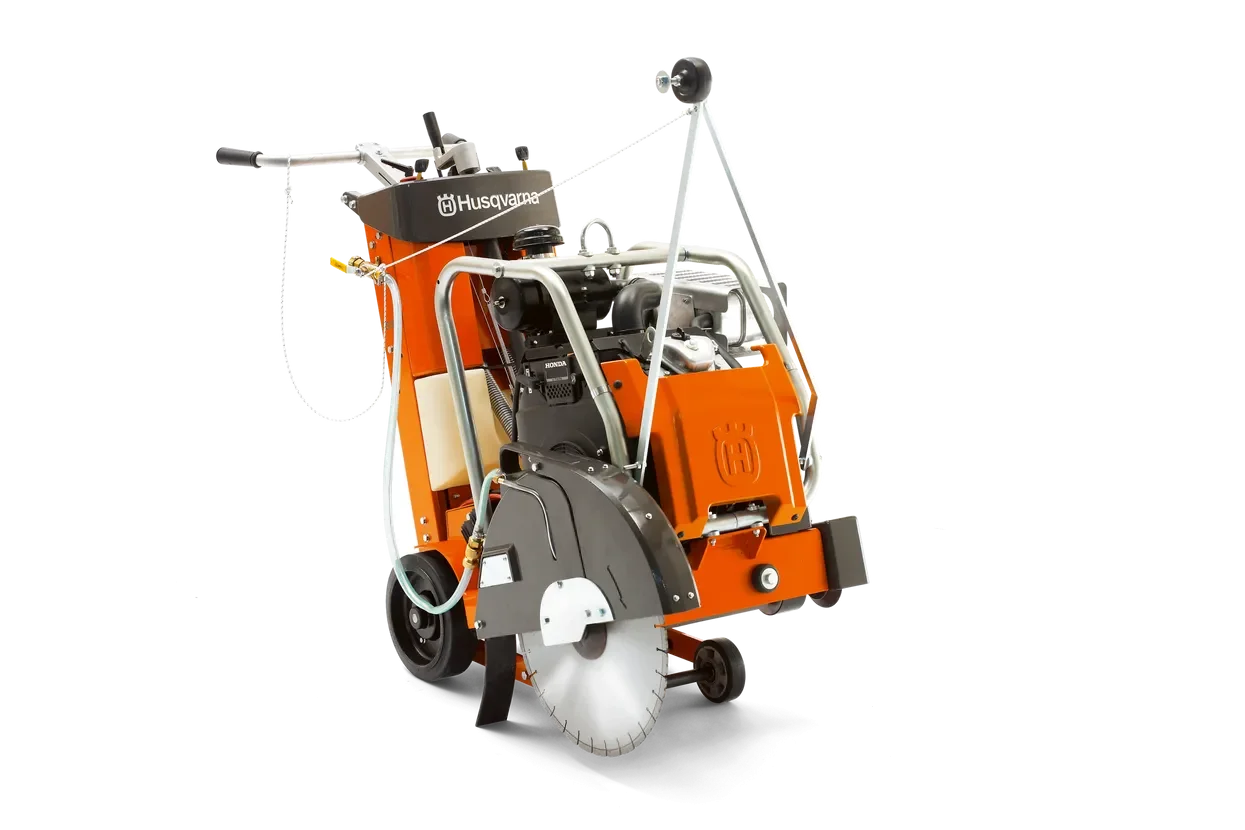

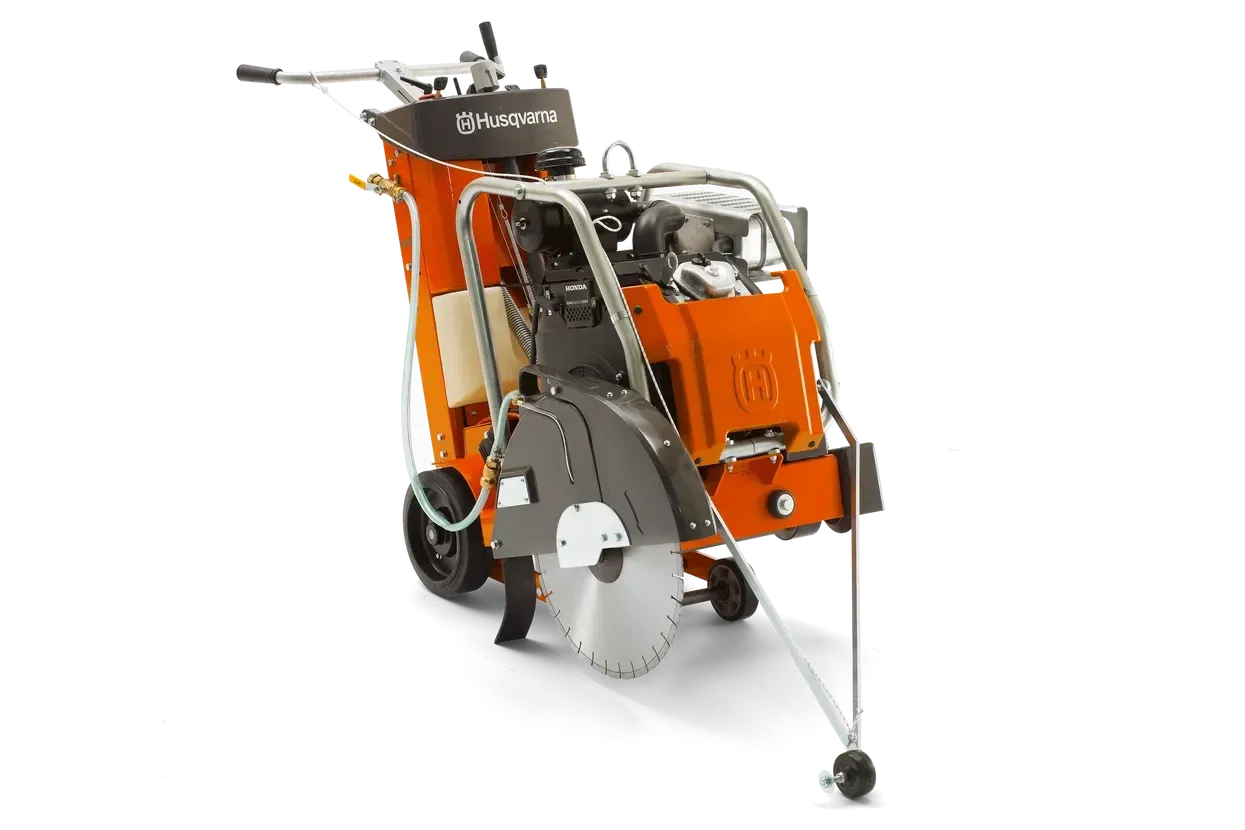

The Husqvarna FS 513 20 in is a professional walk-behind flat saw built for concrete and asphalt cutting. This configuration accepts a maximum blade diameter of 20 in (508 mm) and provides a maximum cutting depth of 7.2 in (179 mm). Power is supplied by Honda GX390 rated at 11.7 hp (8.7 kW).Blade depth control is Spring assist raise/lower with positive lock-type hand crank (Patented), the blade guard is Slip-on with bolt, and the drive arrangement is Hydrostatic trans-axle. The catalog lists 1 gearbox speed and a primary output-shaft speed of 2,600 rpm. Product size is 65.9 x 25.4 x 43.5 in (L x W x H), with maximum uncrated weight of 470 lbs.
The Husqvarna FS 513 20 in is a professional walk-behind flat saw built for concrete and asphalt cutting. This configuration accepts a maximum blade diameter of 20 in (508 mm) and provides a maximum cutting depth of 7.2 in (179 mm). Power is supplied by Honda GX390 rated at 11.7 hp (8.7 kW).
Blade depth control is Spring assist raise/lower with positive lock-type hand crank (Patented), the blade guard is Slip-on with bolt, and the drive arrangement is Hydrostatic trans-axle. The catalog lists 1 gearbox speed and a primary output-shaft speed of 2,600 rpm. Product size is 65.9 x 25.4 x 43.5 in (L x W x H), with maximum uncrated weight of 470 lbs.
| SKU | 144476 | ||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Weight | 470 | ||||||||||||||||||||||||||||||||||||||||||||
| Country of Manufacture | |||||||||||||||||||||||||||||||||||||||||||||
| Mfr. Model Number | 967 04 59‑01 | ||||||||||||||||||||||||||||||||||||||||||||
| Link to User Manual | No | ||||||||||||||||||||||||||||||||||||||||||||
| Link to Schematics | No | ||||||||||||||||||||||||||||||||||||||||||||
| Link To Catalog | Husqvarna Construction Catalog | ||||||||||||||||||||||||||||||||||||||||||||
| Technical Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||
| Free Shipping | No |
