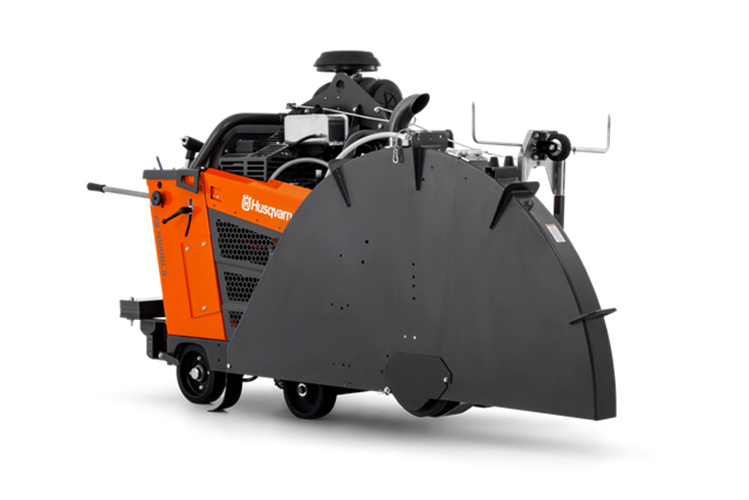

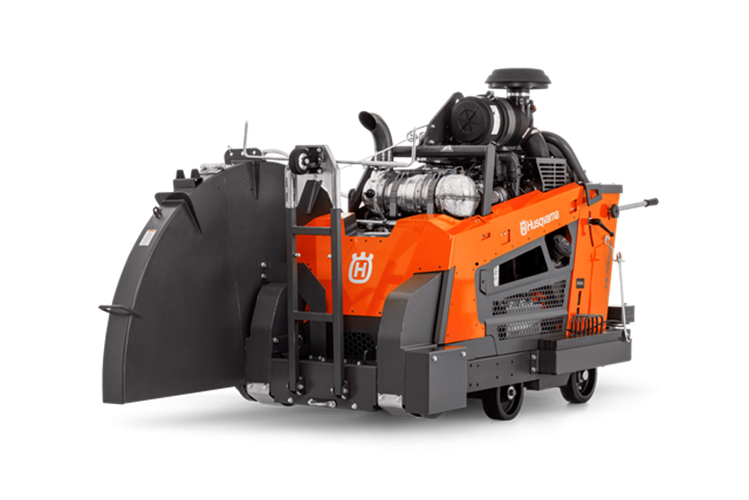

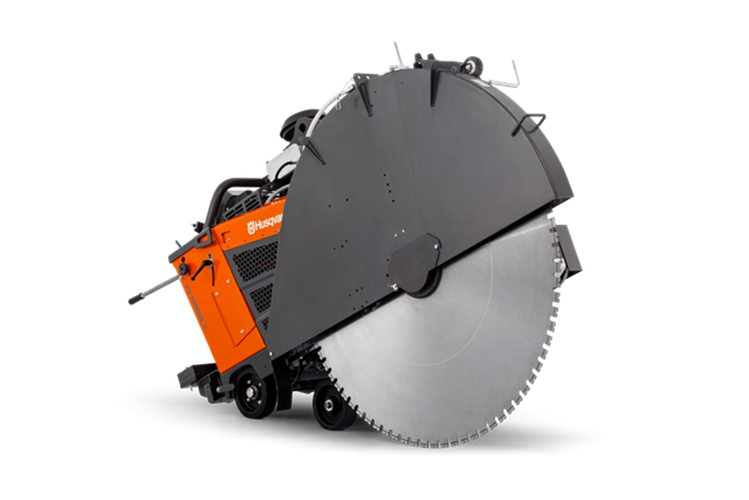

The FS 7000 DL 967056003 is the 48-inch, three-speed, E-Tracking version of Husqvarna's high-production diesel flat saw. It is suited to deep concrete and asphalt cutting, with a 74.3 hp Deutz TD 2.9 L4 engine, a maximum blade diameter of 48 in and a maximum cutting depth of 20 in. E-Tracking gives the operator electronic correction of the saw's travel line, while the balanced dual-motor hydrostatic drive and variable-position handlebar support controlled movement during long cuts.
The three-speed right-angle gearbox runs at 1,035, 1,211 and 1,741 rpm, corresponding to 48-, 42- and 36-inch blade sizes. Other catalog specifications include an 8-inch blade flange, electro-hydraulic blade-depth control, slip-on blade guard, 0-250 fpm travel speed, 10.6-gallon fuel tank, 9-quart oil capacity, 178 cu in displacement, liquid/air cooling and 97 x 39 x 59 in product dimensions. Maximum uncrated weight is 2,347 lb and maximum crated weight is 2,452 lb.
The Husqvarna FS 7000 DL 48-inch 3-speed is built for demanding professional concrete and asphalt cutting where deep capacity, steady tracking and sustained blade power matter. Husqvarna part number 967056003 combines a 48-inch maximum blade diameter with a 20-inch maximum cutting depth and E-Tracking, which allows the operator to correct tracking electronically and maintain a straighter cutting line.
Power comes from a Deutz TD 2.9 L4 four-stroke, four-cylinder diesel engine rated at 74.3 hp (55 kW). Engine displacement is 178 cu in (2.92 L), bore and stroke are 3.6 x 4.3 in (91 x 109 mm), cooling is liquid/air, fuel capacity is 10.6 gal (40 L), and engine oil capacity is 9 qt (8.5 L). The blade-depth system uses an electro-hydraulic pump, the blade guard is a slip-on design, and the blade flanges are 8 in (203 mm).
The right-angle three-speed gearbox provides blade-shaft speeds of 1,035 rpm for a 48-inch blade, 1,211 rpm for a 42-inch blade and 1,741 rpm for a 36-inch blade. Travel speed is variable from 0 to 250 fpm, and propulsion is handled by a balanced dual-motor hydrostatic drive. The operator handlebar has variable-position adjustment.
Overall product dimensions are 97 x 39 x 59 in (L x W x H). Maximum uncrated weight is 2,347 lb and the catalog maximum crated weight is 2,452 lb. For freight planning, the working shipping estimate is 103 x 45 x 65 in with a shipping weight of 2,452 lb.
| SKU | 144431 | ||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Weight | 2347 | ||||||||||||||||||||||||||||||||||||||||||||||
| Country of Manufacture | |||||||||||||||||||||||||||||||||||||||||||||||
| Mfr. Model Number | 967056003 | ||||||||||||||||||||||||||||||||||||||||||||||
| Link to User Manual | No | ||||||||||||||||||||||||||||||||||||||||||||||
| Link to Schematics | No | ||||||||||||||||||||||||||||||||||||||||||||||
| Link To Catalog | Husqvarna Construction Catalog | ||||||||||||||||||||||||||||||||||||||||||||||
| Technical Specifications |
|
||||||||||||||||||||||||||||||||||||||||||||||
| Free Shipping | No |
