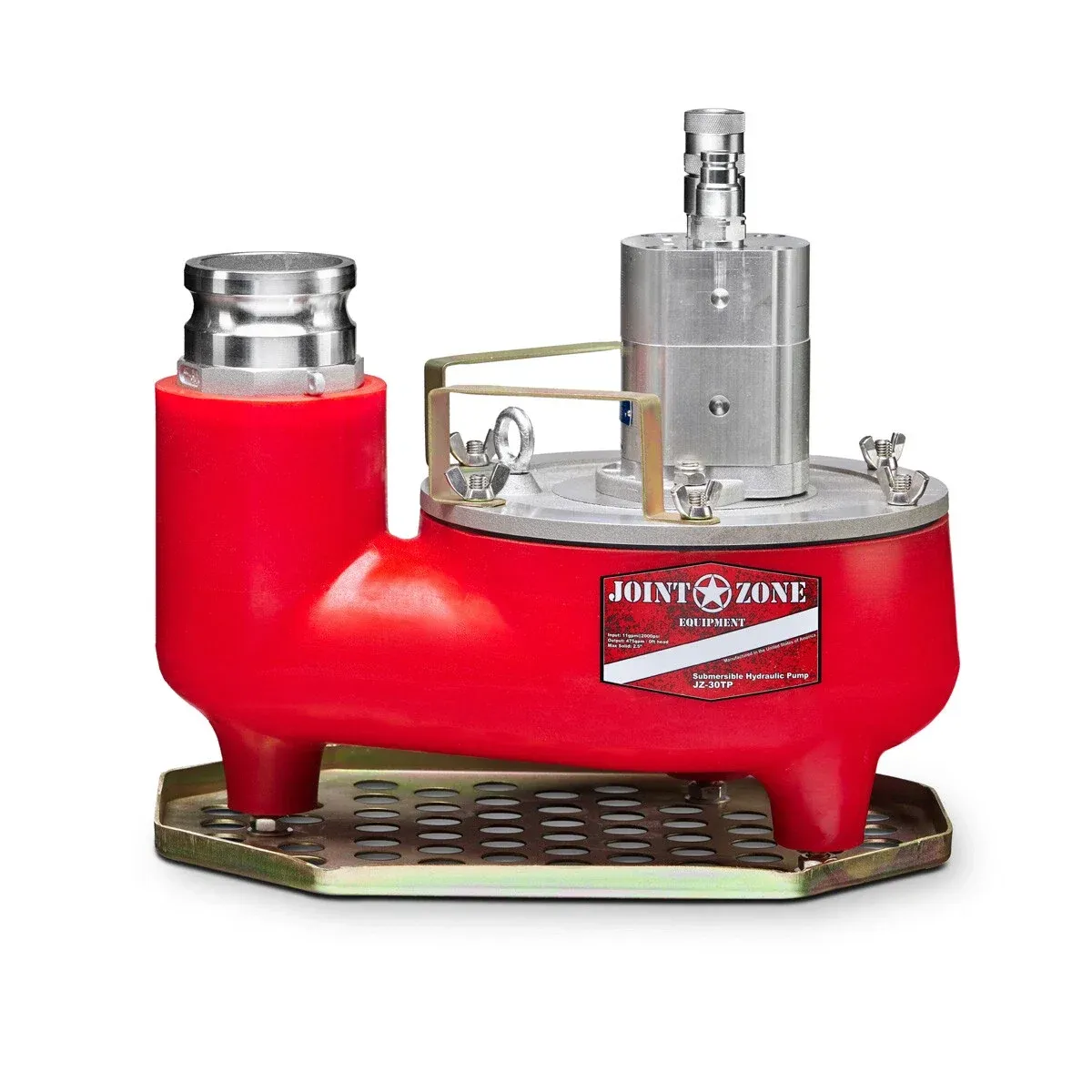

Joint Zone JZ-30TP 3" Submersible Hydraulic Trash Pump AVAILABILITY: Rental Items Based on Availability. Purchases Normally Ship Next Business Day.
PRODUCT CODE: 141429-0010
Trustpilot


Rental Rates:
DayWeekMonth
$54.99$164.97$439.92
Buy it New Price: $1,800.00
$0.00

Choose Your Reservation Dates

BUY THIS Joint Zone JZ-30TP 3" Submersible Hydraulic Trash Pump TODAY FROM RENTAL TOOLS ONLINE.
This from Joint Zone(model: JZ-30TP) is available at one of the best prices anywhere on the internet or in-store!
Description

Details

This submersible centrifugal design requires no priming and can run dry all day without damage. Direct drive requires no maintenance as all moving parts are self lubricated with passing hydraulic fluid. A urethane bowl and impeller are very durable and capable of moving liquids containing up to 30% solids. If you are pumping oily sludge, septic systems, muddy trenches or even clean water this a pump for you. The JZ-30TP is fitted with flush face couplers that threads directly into SAE ports, No NPT hydraulic joints to weep. The JZ-30TP Trash Pump comes with a 3”female NPT output port fitted to a 3” Cam Loc fitting standard.

WARRANTY - Submersible Pumps and their associated parts are warranted against defects in material and workmanship for a period of twelve months from the date of purchase. Repair or replacement of defective parts will be approved by manufacturer. This warranty becomes void if maximum pressures or flows are exceeded. Back pressure should be measured at the tool before being used. Excessive back pressure will damage shaft seal.

Additional Information

Additional Information

SKU 141429-0010
Weight 30
Country of Manufacture Czech Republic
Mfr. Model Number JZ-30TP
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications
PUMPING CAPACITY 475 gpm (1800 lpm)
MAX GPH 28500
Max TDH 98 Ft
PUMP TYPE Trash-Sludge-Slurry-Water
CONSTRUCTION Urethane Volute and Impeller
DISCHARGE 3” Cam Loc - 3” NPT Female
WEIGHT 30 lbs. (13.6 kg)
LENGTH 14 inches (355 mm)
WIDTH 12 inches (305 mm)
HEIGHT 13 inches (330 mm)
HYDRAULIC FLOW RANGE 7-11 gpm (26-42 lpm)
MAXIMUM PRESSURE 2000 psi (138 bar)
MAXIMUM BACK PRESSURE 250 psi (17 bar)
Free Shipping Yes
