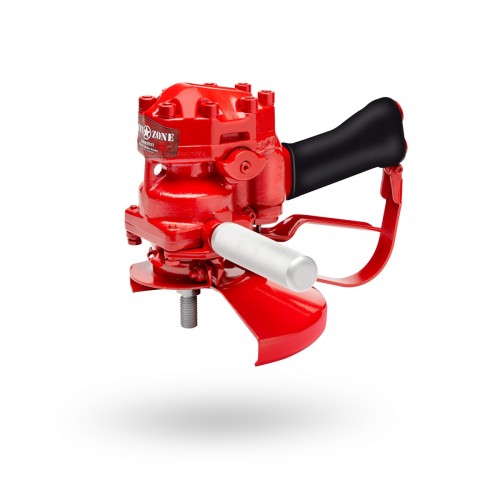

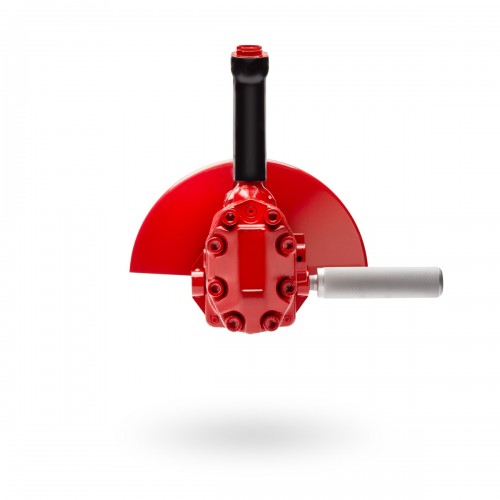

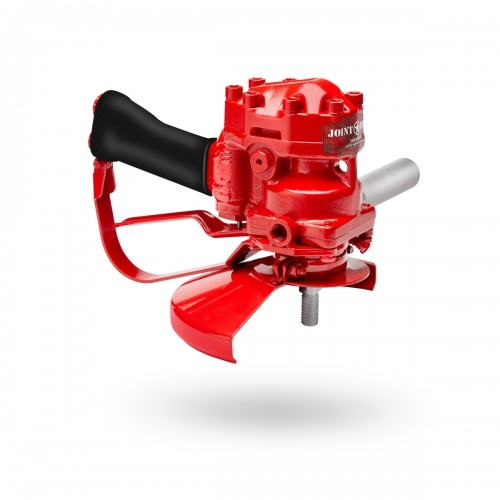

Joint Zone 9AG 9" Hydraulic Grinder (U/W Capable) AVAILABILITY: Rental Items Based on Availability. Purchases Normally Ship Next Business Day.
PRODUCT CODE: 141435-0010
Trustpilot


Rental Rates:
DayWeekMonth
$165.99$497.97$1,327.92
Buy it New Price: $2,750.00
$0.00

Choose Your Reservation Dates

BUY or RENT THIS Joint Zone 9AG 9" Hydraulic Grinder (U/W Capable) TODAY FROM RENTAL TOOLS ONLINE.
This heavy-duty Hydraulic Grinder from Joint Zone (model: 9AG) is available for rent by the day, week or month - perfect for quick jobs or longer, more complex projects.


Description

Details

Manufactured to exacting standards to deliver maximum efficiency, the 9AG has a high torque gear motor which directly drives a 5/8-11 threaded spindle. It has an adjustable 9” guard that accepts either 7” or 9” discs as well as other accessories for cutting, grinding, buffing, polishing. A plastisol covered handle transmits very little heat and provides a more comfortable grip. The convenient, two position assist handle provides a comfortable handling position from the valve handle. The 9AG also comes standard with quick disconnect couplers.

WARRANTY - Hydraulic grinders and their associated parts are warranted against defects in materials and workmanship for a period of twelve months from the date of purchase. Joint Zone reserves the right to repair or replace only those parts which prove to have been defective at the time of purchase. This warranty becomes void if maximum flow and pressure ratings are exceeded.

Additional Information

Additional Information

SKU 141435-0010
Weight 14
Country of Manufacture
Mfr. Model Number 9AG
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications
DRIVE 5/8-11 Spindle
OUTPUT SPEED 3200 rpm@ 12 gpm
SYSTEM Open Center
HYDRAULIC FLOW RANGE 4-12 gpm (15-45 lpm)
WEIGHT 15 lb (6.8 kg)
LENGTH 11 in (280 mm)
WIDTH 10 in (390 mm)
MAXIMUM PRESSURE 2000 psi (138 bar)
MAXIMUM BACK PRESSURE 250 psi (17 bar)
PORTING -8 SAE 0-ring
Free Shipping No

You may also be interested in the following product(s)

Product Questions

Hi,

Does this come with a disc or do I need to buy one? I need to grind two small plaster stones in my spa which has water in it. The areas are on the seats 2.5’ under the water. Will this work?
