AVAILABLE TO RENT OR BUY FROM RTO.

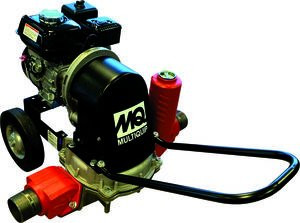

The Multiquip MQD2HA diaphragm pump features a positive displacement design suitable for high viscosity liquids, sludge, and debris-laden fluids. It handles solids up to 1 5/8 inches and pumps up to 50 gallons per minute with a maximum lift of 25 feet. Powered by a 3.5HP Honda GX120 gasoline engine, it includes enclosed gears with oil bath lubrication and an integrated wheel kit for mobility.- Description
-
Details
MQ diaphragm pumps utilize a positive displacement design to effectively move high viscosity liquids, sludge, and general heavy debris laden fluids. Their simple reciprocating dynamics provide the force to successfully operate in the most demanding applications.
- Ideal for muddy water, high solid content.
- Handles 1 5/8” solids.
- For fluids up to 180° F.
- Pumps up to 50 gallons (189 liters) per minute.
- Maximum lift of 25 feet (7.6 meters).
- Powered by a Honda GX120 3.5HP gasoline engine.
- Enclosed gears with oil bath lubrication.
- Integrated Wheel Kit assembly for ease of transportation.
- Specifications
-
Specifications
SKU 142158-0010 Weight 125 Country of Manufacture Mfr. Model Number MQD2HA Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications SUCTION x DISCHARGE 2 x 2 in
51 x 51 mm
MAX. WATER CAPACITY 50 gpm MAX. LIFT 25 ft MAX. HEAD 25 ft FUEL TANK CAPACITY 2.1 qt OPTIONAL WHEEL KIT Wheel Kit included with Pump OVERALL LENGTH 27 in OVERALL WIDTH 18.5 in OVERALL HEIGHT 20.5 in OPERATING WEIGHT 125 lbs Free Shipping No - Product Questions
-
