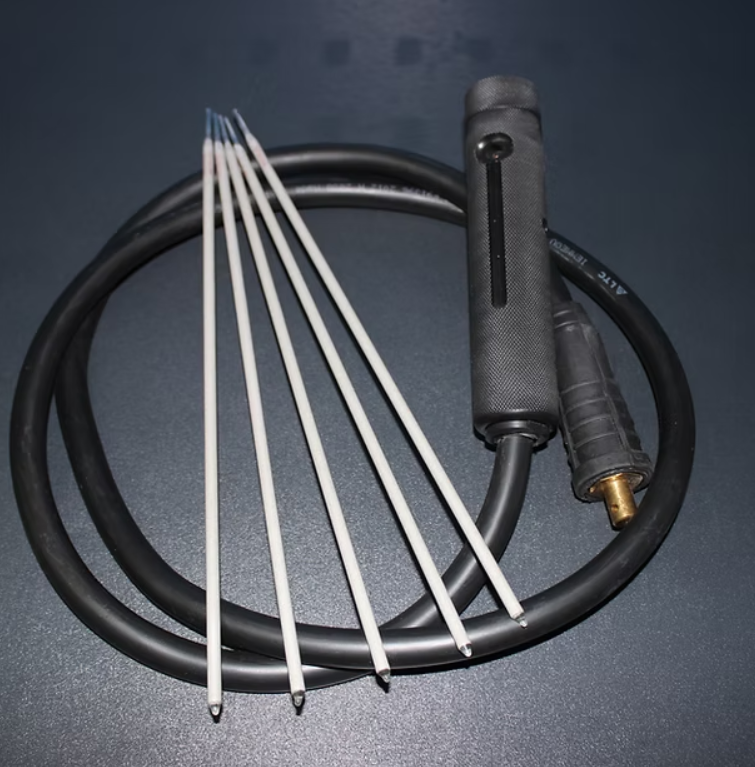

The Nautilus Welding Stinger, officially known as the Nautilus Welding Torch, is a professional underwater welding electrode holder engineered for commercial diving, marine construction, ship repair, salvage, offshore maintenance, and other subsea welding applications.

Unlike disposable or sealed underwater welding stingers, the Nautilus is designed to be completely dismantled, serviced, and rebuilt in the field without specialized tools. Its replaceable components allow divers and maintenance teams to repair normal wear on-site instead of replacing the entire electrode holder.

The patented wear-adjustment system helps maintain a secure electrode connection as the internal contact surfaces wear. The cable connector can be rotated in full 360-degree increments, with each complete turn providing approximately 1 mm of adjustment. More than 10 mm of total wear compensation is available before the affected components need to be replaced. The copper wear plug and cable connector are individually replaceable, and all major parts are available separately.

Manufactured from tough, hardwearing, electrically insulating material, the Nautilus underwater welding stinger is built to provide maximum protection for the diver. Its shape and size provide a firm, controlled grip, even when the operator is wearing diving gloves. An integrated electrode guide slot also helps the diver position and secure an electrode in dark, murky, or low-visibility underwater environments.

The Nautilus Welding Stinger accepts welding electrodes ranging from 2.5 mm (3/32") to 5.0 mm (3/16"). A simple tightening and release mechanism allows electrodes to be changed efficiently during underwater welding operations. The holder can also be used for surface welding and is rated for 250 amps at a 60% duty cycle when operated above water.

Key features:

• Professional underwater welding stinger and electrode holder
• Suitable for subsea and above-water welding applications
• Accepts 2.5 mm (3/32") through 5.0 mm (3/16") electrodes
• Fully insulated, non-conductive main body
• Rugged construction for commercial diving environments
• Secure, glove-friendly grip
• Electrode guide slot for installation in poor visibility
• Adjustable design compensates for normal contact wear
• More than 10 mm of available wear adjustment
• Replaceable copper wear plug and cable connector
• Completely serviceable and rebuildable in the field
• Disassembles without special tools
• Replacement components available individually
• Available with or without a whip lead
• Above-water rating of 250 amps at a 60% duty cycle

The Nautilus Welding Stinger provides commercial divers with a durable, repairable, and adaptable electrode holder for demanding underwater welding work. Its replaceable wear components and field-serviceable construction can extend operating life while reducing downtime and the need to replace the complete welding stinger.
