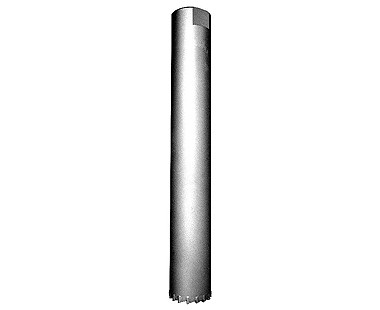

CS Unitec Plate Cutter, Carbide Tipped, 4-1/4" dia., 12" usable length, 14-3/4" overall length, 1-1/4" x 7" hub thread size

CS Unitec Plate Cutter, Carbide Tipped, 4-1/4" dia., 12" usable length, 14-3/4" overall length, 1-1/4" x 7" hub thread size Product Guide

This plate cutter is a carbide-tipped cutting tool designed for use with core drills when working on jobs involving concrete combined with steel. It helps solve the challenge of cutting through steel plate, embedded rebar, or wire mesh that may be encountered when coring through reinforced concrete structures. Its construction and geometry offer durability to withstand tough jobsite conditions.

In practice, this type of plate cutter is mounted to a core drill to extend the tool's capabilities beyond just drilling concrete. It allows a drill operator to cut steel reinforcements cleanly within or near the drilling path, which can prevent damage to drill bits and improve progress on reinforced materials. The cutter can be used with minimal water cooling or dry, offering flexibility depending on site conditions and slurry management needs.

Where This Is Used

• Cutting steel plates integrated in cast concrete during core drilling
• Sectioning embedded rebar encountered in reinforced concrete walls or slabs
• Severing wire mesh layers to allow clean penetration or core recovery

Key Details

Selection Notes

When selecting a plate cutter for a core drilling project, confirm the hub thread size compatibility to ensure proper fit on the drill arbor. The cutter diameter and usable length should match the diameter and depth requirements of the cutting task. Consider whether the cutting will be done wet or dry and verify that the core drill and associated accessories support the selected mode. The carbide tips are designed to handle embedded steel elements but may wear faster under continuous use; consider availability of replacements or backup cutters in longer projects involving heavy steel content.

Setup and Compatibility Notes

Mount the plate cutter securely on the compatible core drill using the specified 1-1/4" x 7 hub thread connection. When using wet cutting, ensure water supply is controlled to minimize slurry spread while still providing tip cooling. For dry use, monitor tool temperature and wear closely to avoid premature damage. Confirm clearance around the core drill to accommodate the overall length of 14-3/4" and maintain operator access. Inspect the cutter prior to use for tip integrity and secure mounting to prevent failure during cutting steel sections. This accessory complements core drill operations in reinforced concrete and should be stored and handled with care to maintain carbide tip condition between jobs.
