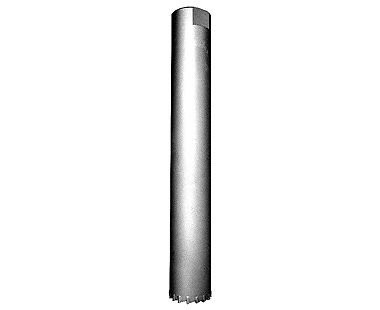

CS Unitec Plate Cutter, Carbide Tipped, 6" dia., 12" usable length, 14-3/4" overall length, 1-1/4" x 7" hub thread size

CS Unitec Plate Cutter, Carbide Tipped, 6" dia., 12" usable length, 14-3/4" overall length, 1-1/4" x 7" hub thread size Product Guide

This CS Unitec Plate Cutter is a carbide-tipped cutting accessory designed for use with compatible core drills when drilling through concrete with embedded steel components. It effectively cuts steel plates, embedded rebar, and wire mesh encountered during concrete penetration tasks. By combining cutting capabilities for both concrete and steel materials, it addresses the common problem of encountering reinforcing elements that standard concrete core bits cannot reliably cut through.

In practical rental and jobsite contexts, the plate cutter is often selected to extend the capability of a core drill where concrete coring intersects heavy steel reinforcement or embedded plates. It is suitable for both wet and dry use, allowing operators to adapt to site conditions. Its carbide tips provide durability and the capacity to withstand rough, heavy usage typically encountered in industrial cutting scenarios. The product screws onto compatible drills via a 1-1/4" x 7 thread hub, allowing firm attachment and straight cutting performance.

Where This Is Used

• Concrete drilling projects requiring simultaneous cutting of reinforced steel plates and embedded rebar
• Demolition or renovation work involving cutting wire mesh or steel plates inside concrete slabs or walls
• Heavy industrial and construction sites where concrete structures include steel reinforcement of varied thickness

Key Details

Selection Notes

From a selection standpoint, this plate cutter is chosen primarily when steel cutting is required within a concrete coring task. The critical details to confirm are the hub thread size matching the core drill spindle and the diameter fitting the drilling rig or stand setup. The 6" diameter and 12" usable length provide a balance between manageable size and cutting capacity for embedded materials. For jobs with substantial steel reinforcement or multiple layers, verifying carbide tip condition and plan for appropriate water supply if wet cutting is preferred is advisable. Also, verify the drill’s torque capacity to handle the extra cutting resistance when working with steel elements.

Setup Details and Compatibility Notes

Attach the plate cutter securely to the core drill using the 1-1/4" x 7 hub thread. Confirm that the drill’s speed range and feed pressure suit metal cutting to avoid excessive wear or damage. When using wet, supply a small controlled amount of water to cool the cutter and reduce dust, which helps prolong the bit life and maintain cutting efficiency. For dry use, monitor cutting temperature carefully and allow pauses as necessary to avoid overheating the carbide tips. This plate cutter is designed to tolerate rough use, but inspecting carbide tips before and after each job helps maintain effective cutting performance. Compatibility with the existing core drill system and mounting arrangements should be verified ahead of operations to ensure safe and efficient setup.
