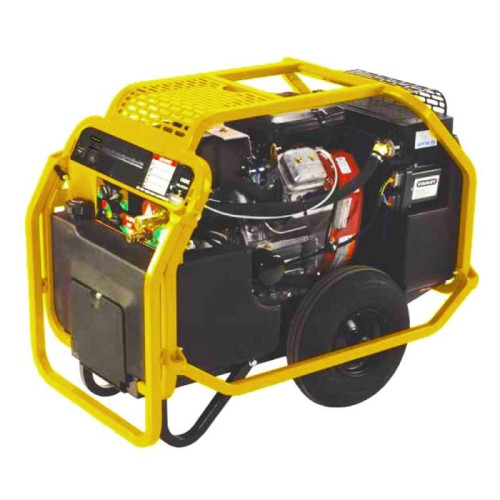

Stanley HP12B Portable Hydraulic Power Unit (8, 10 or 12 gpm) Product Guide

How This Power Unit Fits Into A Hydraulic Tool Package

The Stanley HP12B supplies a selectable hydraulic flow of 8, 10, or 12 gallons per minute, which supports compatible hydraulic tools used in construction, utility, maintenance, and emergency response tasks. This flow range covers common requirements for hand-held breakers, drills, saws, and other connected hydraulic equipment. Compared to smaller or single-flow hydraulic power sources, the HP12B’s ability to switch between multiple flow settings offers configuration options across different tool demands without changing units. Its portable size and compact design make it practical for jobs where maneuverability and access are important, versus larger stationary or skid-mounted power units better suited for heavy-duty work on sites.

Power Unit Planning Notes

This unit is generally delivered by freight on a pallet and may require a loading dock, forklift, or liftgate to unload. Planning should include enough lead time for freight delivery before the scheduled work date. If accepted as a rental, keep all shipping materials for return and confirm the unit is clean with all supplied hoses and accessories included to avoid additional charges.

Since this power unit is typically engine-driven, position it outdoors or in a ventilated area with the engine exhaust positioned away from workers, sensitive surfaces, and the work face. For applications on boat decks or near water, secure the unit to prevent movement, especially if it has wheels or handles, and position the exhaust and muffler away from fiberglass, coatings, hoses, and other heat-sensitive materials.

Hose routing should be carefully planned to avoid kinks, crushing, or abrasion. Long hydraulic hose runs may require larger diameter hoses or a more powerful unit to compensate for friction loss and maintain pressure at the tool end. Confirm coupler compatibility for smooth connection to Type II and Type III hydraulic tools that this unit supports.

Work locations near water, underwater-support needs, municipal settings, or environmentally sensitive sites may have specific hydraulic-fluid requirements. Unless discussed and agreed upon in advance, RTO rental units do not guarantee the type of hydraulic oil used in the unit. Verify these requirements before planning tool deployment to confirm compatibility with site regulations or project specifications.
