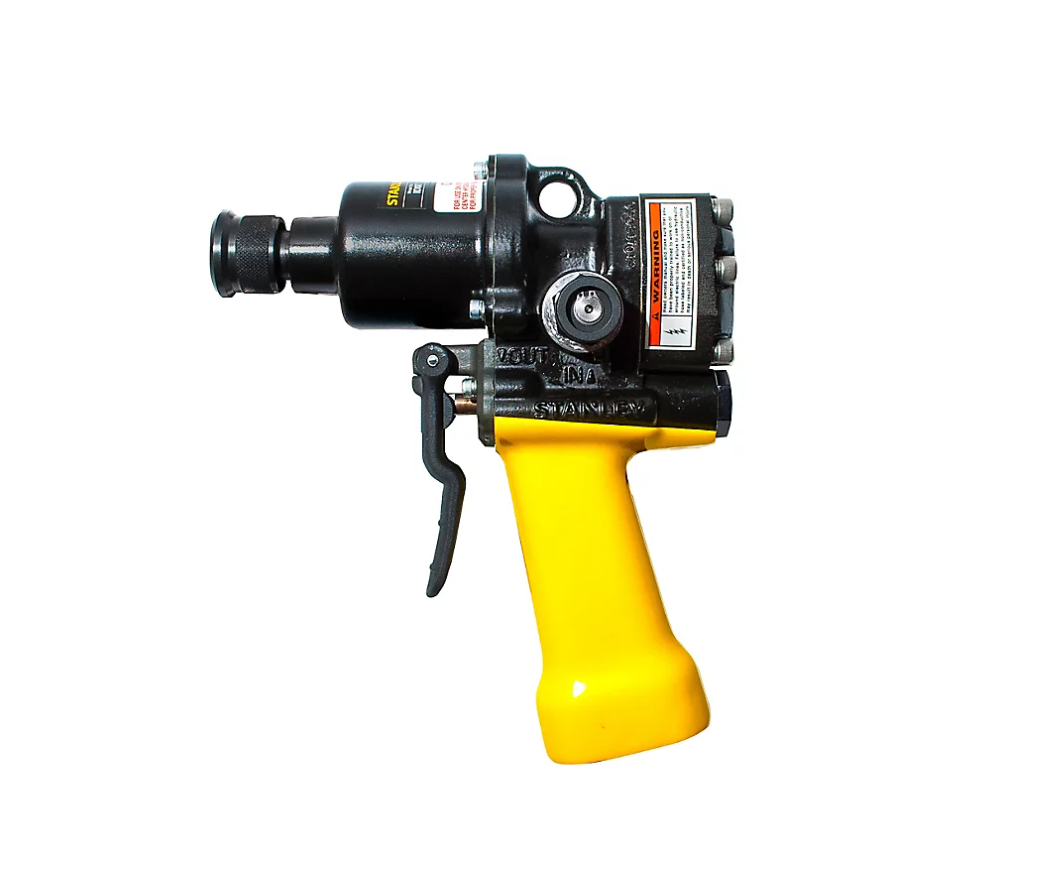

The Stanley Hydraulic ID07 Impact Drill delivers powerful 500 ft-lb torque performance in a compact, lightweight hydraulic tool designed for utility, construction, railroad, and industrial applications. Built with Stanley’s proven swing-hammer impact mechanism and Hyrevz™ gear motor, the ID07 easily drives lag bolts, wood augers, and fasteners through treated utility poles and other tough materials. Available with either a 7/16-inch quick-change chuck or 1/2-inch square drive, this rugged hydraulic impact drill offers dependable performance, minimal torque reaction, and long service life in demanding jobsite conditions.
- Description
-
Details
The Stanley Hydraulic ID07 Impact Drill is a high-performance hydraulic impact wrench and drilling tool engineered for utility crews, linemen, railroad maintenance, construction contractors, and industrial professionals who demand reliable power in harsh working environments. Delivering up to 500 ft-lbs (675 Nm) of impact torque, the ID07 is ideal for drilling wood utility poles, driving lag screws, tightening and loosening nuts, anchor setting, and heavy-duty fastening applications. Designed with Stanley’s proven swing-hammer impact mechanism, the ID07 provides smooth, efficient power transfer while minimizing operator torque reaction during drilling operations. The integrated Stanley Hyrevz™ hydraulic gear motor is precision-built for maximum efficiency and durability, ensuring consistent output even during continuous use in demanding field conditions. The Stanley ID07 hydraulic impact drill is available with either a 7/16-inch quick-change chuck or a 1/2-inch square drive, allowing operators to easily switch between drilling and fastening applications. Its compact 7.2 lb design improves maneuverability while reducing operator fatigue during overhead or extended use. Additional features include a reverse-flow check valve to protect hydraulic seals from incorrect plumbing, feathering ON/OFF trigger control, and selectable open-center or closed-center hydraulic operation for compatibility across a wide range of hydraulic power systems. The rugged construction and sealed hydraulic components make the ID07 suitable for utility, industrial, and even underwater applications. Whether you're drilling creosote-treated poles, driving anchors, or handling heavy fastening jobs in the field, the Stanley ID07 Impact Drill provides the durability, torque, and reliability professionals trust. - Additional Information
-
Additional Information
SKU 144311 Weight 7 Country of Manufacture Mfr. Model Number ID07820 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications Specification Details Model Stanley ID07 Hydraulic Impact Drill Drive Capacity 1/2" Square Drive Maximum Torque 500 ft-lbs (675 Nm) Hydraulic Flow Range 4 – 12 GPM (15 – 45 LPM) Operating Pressure 750 – 2000 PSI (50 – 140 Bar) Motor Type Stanley Hyrevz™ Gear Motor Hydraulic Ports -8 SAE O-Ring Tool Weight 7.2 lbs (3.3 kg) Length 8.5 in Width 4.5 in Height 10 in Hydraulic System Compatibility Open Center / Closed Center Applications Utility Pole Drilling, Lag Bolt Driving, Fastening, Industrial Maintenance Free Shipping No
