Chicago Pneumatic COR 5 Hydraulic Core Drill Product Guide

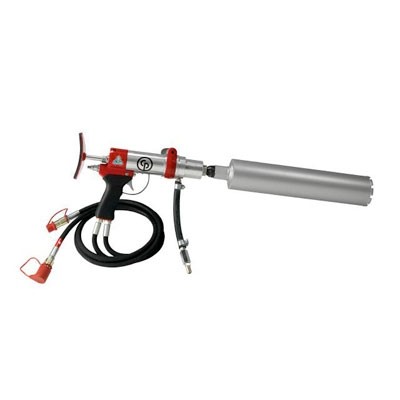

The Chicago Pneumatic COR 5 Hydraulic Core Drill is a hydraulic-powered tool designed for drilling core samples or holes in various hard materials, typically concrete or masonry. It addresses the challenge of creating precise, clean cores or holes in construction, renovation, or industrial projects where manual or less powerful tools would be inadequate or inefficient.

This type of core drill is commonly employed in applications requiring controlled diameter holes for installing anchors, conduits, or pipes, or for inspection and testing purposes. Its hydraulic operation allows for consistent torque and power delivery, making it suitable for heavy-duty drilling where pneumatic or electric tools might struggle, especially in demanding or confined jobsite conditions.

Where This Is Used

• Construction sites for drilling concrete, masonry, or stone for installations or structural testing
• Industrial facilities during maintenance or modification tasks requiring core extraction or penetration
• Infrastructure projects that need precise holes for anchors, bolts, or embedded components

Key Details

Selection Notes

When choosing a hydraulic core drill for a job, the important details to confirm are compatibility with the hydraulic power unit's pressure and flow specifications, as well as the range of core bit diameters needed. The 1⁄2" BSP male to 1-1⁄4" UNC male adaptor included here expands bit options, allowing use of larger diameter core bits, which is valuable for varied drilling requirements. Consider the material hardness and required hole diameter in relation to the drill’s torque and power capacity. Hose length and routing should be planned to allow clear operator movement without restricting hydraulic flow or causing hose damage. The hydraulic power unit must support the drill’s pressure and flow demands for consistent operation.

Drill Setup Notes

Confirm that all hydraulic connections are secure and free of leaks before starting. Since hydraulic oil returns to the tank after use, ensure that the entire hydraulic system is compatible and maintained to preserve fluid quality. Make sure core bits are properly mounted to the drill spindle using the included drive adaptor if required, checking for wear or damage on bit connections. Plan for water supply or other fluid management at the drill site if wet drilling is needed; control slurry and water flow to maintain visibility and minimize cleanup. After drilling, clean the tool to remove concrete slurry, dust, and debris, and inspect all hydraulic and mechanical connections for wear or damage to maintain reliability for subsequent jobs.
