Greenlee Fairmont HRD44A Heavy Duty Rock Drill AVAILABILITY: Call for Availability
PRODUCT CODE: 140897
Trustpilot


$6,079.48

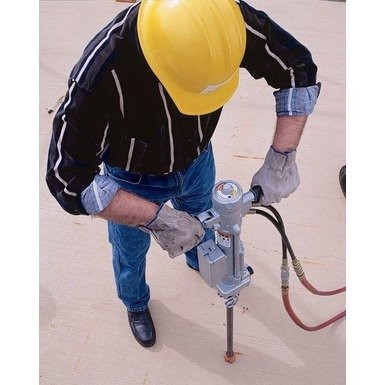

The Greenlee Fairmont HRD44A Heavy Duty Rock Drill is a hydraulic rotary hammer designed for drilling holes in rock and concrete. This 44 lb tool operates on open-center hydraulic systems and delivers powerful drilling performance with speeds up to 400 RPM and up to 1,400 blows per minute. Features such as vibration-isolated cushioned handles and a durable, simple design help reduce operator fatigue while providing reliable performance in demanding drilling applications.

Description

Details

The Greenlee Fairmont HRD44A Heavy Duty Rock Drill is a rugged hydraulic rotary hammer engineered for professional drilling applications in rock, concrete, and other difficult materials. Designed for use on open-center hydraulic systems, the HRD44A provides powerful and reliable drilling performance for demanding utility and construction work.

This 44 lb rock drill delivers up to 1,400 blows per minute and variable rotation speeds from 0–400 RPM, allowing operators to adjust drilling performance to match the material and job requirements. The tool can also operate without rotation, providing additional versatility when performing certain applications.

For efficient drilling, the HRD44A includes a built-in flushing valve that automatically forces air through the bit to clear debris from the hole during drilling, helping maintain productivity and improve drilling efficiency. The drill is capable of drilling holes up to 2-1/2 inches in diameter and up to 10 feet deep, making it suitable for heavy-duty rock and concrete drilling tasks.

Operator comfort and durability are key elements of the design. The drill features vibration-isolated, cushioned handles to reduce operator fatigue, while its simple construction allows for excellent durability and easier repair in the field. The tool is supplied with 12-inch steel-braided whip hoses and operates within a 5-7 GPM hydraulic flow range with operating pressures between 1,275 and 1,700 PSI.

With its combination of powerful drilling capability, durable construction, and operator-focused design, the Greenlee Fairmont HRD44A provides dependable performance for heavy-duty drilling applications in utility, construction, and infrastructure work.

Additional Information

Additional Information

SKU 140897
Weight 44
Country of Manufacture
Mfr. Model Number HRD44A
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications
  • Accessory : F020198K UPC 41780 HTMA Male Coupler 3/8 IN NPTF F020195K UPC 41777 HTMA Female Coupler 3/8 IN NPTF
  • Air Flow : 2.8 CU FT/MIN (80 LPM)
  • Air Pressure : 29 PSI (2 BAR)
  • Blows Per Minute : 1400 BPM Maximum (Varies withRotation Speed)
  • Chuck Size : 7/8 IN (22.000 MM) Diameter X4-1/4 IN (108 MM) Length
  • Hydraulic Flow Range : 5 - 7 GPM (19 - 25 LPM)
  • Hydraulic System : Open-Center
  • Length : 25.000 IN (626.000 MM)
  • Maximum Pressure : 3000 PSI (207 BAR)
  • Operating Pressure : 1275 - 1700 PSI (88 - 118 BAR)
  • Speed : 0 - 400 RPM Drill Rotation
  • Type : Hydraulic
  • Weight : 44.000 LB (20.000 KG)
  • Whip Hoses : 3/8 IN NPTF X 12.000 IN (305.000 MM)
  • Width : 16.000 IN (412.000 MM)
Free Shipping No
