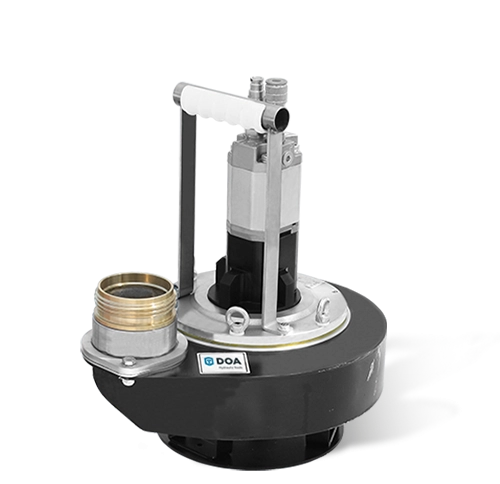

DOA K0585 SP45 Viton Hydraulic 4" Submersible Slurry/Trash Pump AVAILABILITY: Normally Ships in 1-5 Business Days
PRODUCT CODE: 143022
Trustpilot


$4,387.80

* Required Fields

The SP45 is a professional 4-inch trash pump designed for handling trash and heavily loaded fluids with up to 20% sludge concentration. The Viton seals can withstand continuous temperatures up to 392°F.

Description

Details

The can manage suspended solids with dimensions up to 2.75 inches. The pump offers impressive performance, with a flow rate of up to 792 gallons per minute and a maximum head height of 52 feet. Its body is made from stainless steel with polyurethane polyether shielding plates, ensuring exceptional durability, resistance to abrasion, impact, and rust. The hydraulic operation of the pump eliminates the risk of electric shock injuries and allows it to run dry indefinitely without damage. It is ideal for pumping large volumes of both clean and dirty water, maintaining underground gas and water networks, managing flooding and natural disasters, and handling biological pit and manhole dewatering.

Key Features:

  • Extremely durable and reliable, requiring minimal maintenance, and capable of running dry indefinitely without damage.

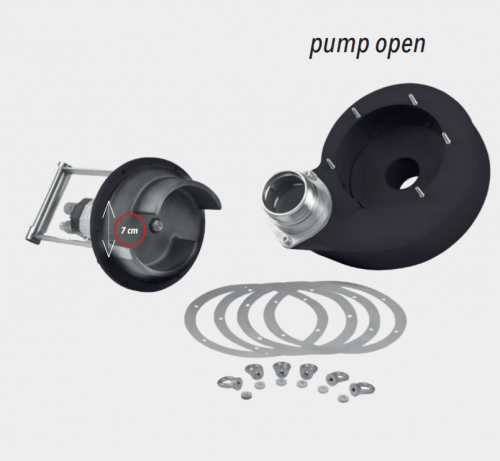

  • The pump housing can be easily opened in a few minutes without tools for inspection of the impeller and pumping chamber.
  • Operable with a small power pack or the hydraulic circuits of mini excavators, vans, tractors, and other work vehicles.
  • The hydraulic motor features a one-way valve to prevent accidental oil leaks if connected to the incorrect hydraulic port.
  • Available with “Viton” seals for handling high-temperature fluids.
  • Equipped with an accessory “Dredging Kit” that attaches to the volute base, allowing it to function as a floor vacuum for directly suctioning sand, light mud, and suspended solid materials.



Additional Information

Additional Information

SKU 143022
Weight 62
Country of Manufacture Italy
Mfr. Model Number SP45 Viton
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications
Specification Details
Discharge Mouth 4" BSP Female
Dimensions (L x H) 16 x 20 inches
Weight 62 lbs

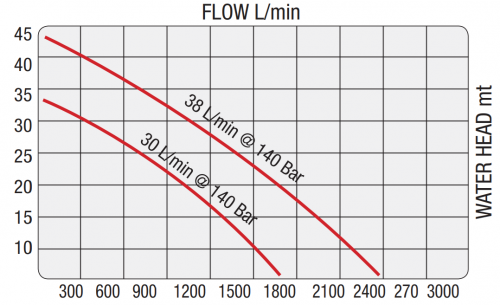

Flow Rate 793 gpm
Max Water Head 52 48 ft
Max Pumpable Solids 2.75 inches
Impeller Type Open Centrifugal
Pump Body Material stainless steel
Impeller Material Chromium Cast Iron
Motor Type Gears Group 2
Oil Flow 8 - 10 gpm
Ideal Oil Flow 10 gpm
Oil Pressure 1500 - 3050 psi
Max Backpressure 250 psi
