The SP20 is a compact and powerful immersion pump designed to handle trash, muddy water, and heavy fluids in general.
- Description
-
Details

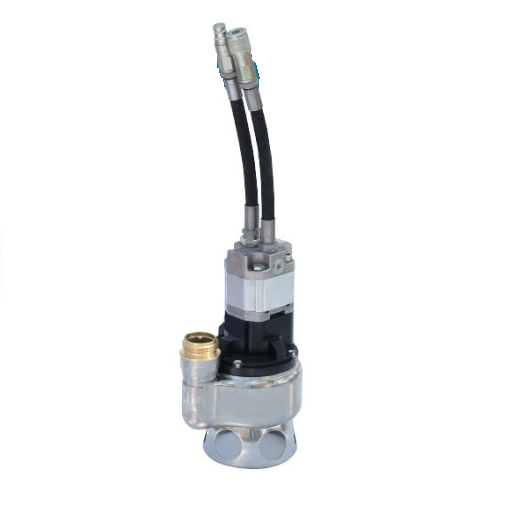

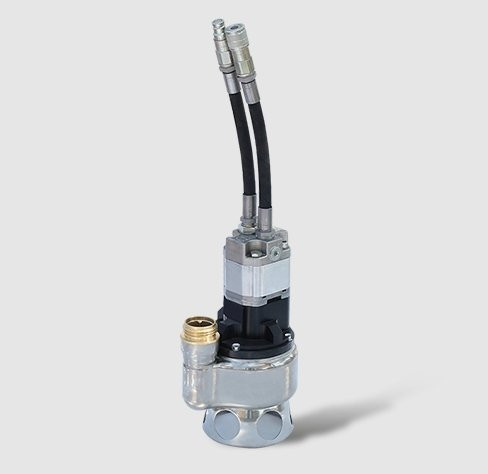

The SP20 is compact and lightweight, providing a flow rate of up to 211 gallons per minute and a maximum water head of 115 feet. It can pump solid particles up to 1.18 inches in size and can run dry without damage. Compact and safe, the SP20 is ideal for emergency services and the maintenance of urban gas and water networks, allowing field operators to work with their feet in the same water the pump is operating in.
Key Features:
- Highly durable and dependable
- Simplified design ensures long-lasting reliability with minimal maintenance
- Capable of running dry without sustaining damage
- With a maximum circumference of just 22 cm, it easily fits into narrow manholes and very small excavation sites
- Can be powered by compact power packs or the hydraulic systems of mini excavators, tractors, etc.
- Features a hydraulic motor with a one-way valve to prevent accidental oil leaks if connected to the wrong hydraulic port
- Offered with “Viton” seals for handling high-temperature fluids
- Additional Information
-
Additional Information

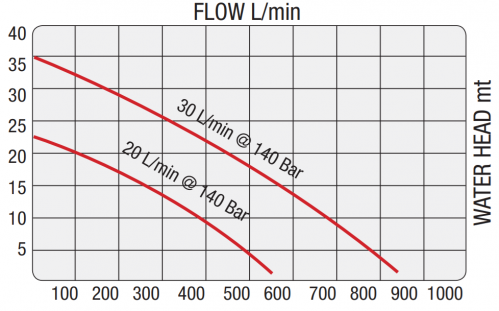

SKU 142402 Weight 18 Country of Manufacture Italy Mfr. Model Number SP20 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications Specification Details Discharge Mouth 2" BSP Female Dimensions (L x H) 9 x 12 inches Weight 17.5 lbs Flow Rate 211 gpm Max Water Head 115 ft Max Pumpable Solids 1.18 inches Impeller Type Open Centrifugal Pump Body Material stainless steel Impeller Material Chromium Cast Iron Motor Type Gears Group 2 Oil Flow 4 - 8 gpm Ideal Oil Flow 5 gpm Oil Pressure 1500 - 3050 psi Max Backpressure 250 psi Free Shipping No
