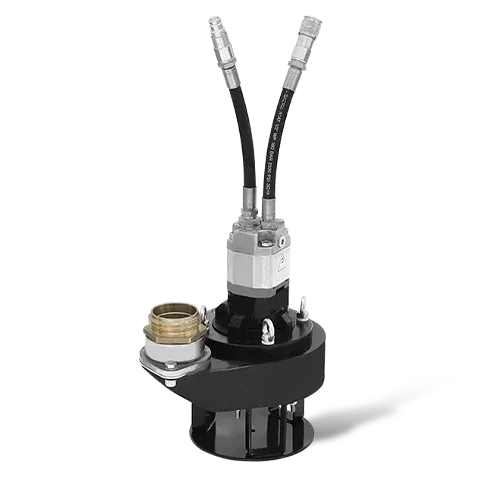

DOA K0258 SP35 Viton Submersible 3" Hydraulic Slurry/Trash Pump AVAILABILITY: Call for Availability
PRODUCT CODE: 143021


$3,945.48
The DOA SP35 Viton Submersible 3-inch hydraulic slurry/trash pump features a stainless steel impeller and shell designed to handle clear and heavily loaded liquids, including dense or muddy water with solids up to 2 inches. It offers flow rates up to 422 gallons per minute, a maximum head of 164 feet, and Viton seals that withstand temperatures up to 392°F. This pump operates with various hydraulic systems and requires minimal maintenance, with a housing that opens quickly for easy inspection. This item is available for purchase only.
Description

Details

This pump delivers high performance due to its hydraulic power and exclusive closed single-channel impeller, providing high efficiency with flow rates up to 422 gallons per minute, a maximum head of 164 feet, and the capability to pump dense or very muddy water with suspended solids up to 2 inches in diameter. The SP35 is ideal for maintenance work on urban networks that handle very dense liquids, flood control in civil protection services, and general roadwork.

Key Features:

  • Extremely durable and reliable, requiring minimal maintenance; can run dry indefinitely without damage.
  • The pump housing can be opened in just a few minutes without tools for easy inspection of the impeller and pumping chamber.
  • Operable with small power packs or the hydraulic systems of mini excavators, vans, tractors, and other work vehicles.
  • The hydraulic motor includes a one-way valve to prevent accidental oil leaks if connected to the wrong hydraulic port.
  • Available with "Viton" hydraulic motor seals for handling high-temperature fluids.
  • The single-channel impeller (without vanes) minimizes mechanical impact on the fluid, reducing the formation of emulsions and foams.
  • A key feature for pumping oil spills and oil products from "skimmers" in seas and lakes.
Specifications

Specifications

SKU 143021
Weight 37
Country of Manufacture Italy
Mfr. Model Number SP35 Viton
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications
Specification Details
Discharge Mouth 3" BSP Female
Dimensions (L x H) 14 x 15 inches
Weight 37.5 lbs
Flow Rate 423 gpm
Max Water Head 164 ft
Max Pumpable Solids 2 inches
Impeller Type mono canal closed
Pump Body Material stainless steel
Impeller Material mono canal closed
Motor Type gears group 2
Oil Flow 4 - 10 gpm
Ideal Oil Flow 8 gpm
Oil Pressure 1500 - 3050 psi
Max Backpressure 250 psi
