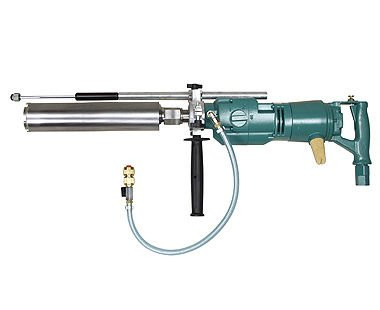

The CS Unitec 2 1333 0010 SV Pneumatic Diamond Core Drill System is a complete professional drilling solution designed for precision coring in concrete, reinforced concrete, masonry, and refractory materials. This SV configuration includes the drill motor, combination anchor/vacuum stand, and vacuum pump, providing enhanced stability and efficiency for demanding jobsite applications.
Powered by a 2.1 HP pneumatic motor, this core drill is ideal for use in hazardous, confined, and explosion-risk environments where electric tools are not suitable. Its ATEX-certified motor ensures safe operation in EX zones, while the air-powered design eliminates fumes and reduces electrical risk.
The system features a 3-speed gearbox (400 / 900 / 1600 RPM), allowing operators to optimize drilling speed and torque based on material and bit size. With a maximum drilling capacity of up to 6 inches when rig-mounted, the SV setup delivers superior control, accuracy, and repeatability for large-diameter core holes.
The included anchor/vacuum stand system allows for secure mounting without mechanical anchors when needed, improving setup time and jobsite flexibility. The integrated air-powered vacuum pump ensures a stable hold on smooth surfaces, making it ideal for vertical and overhead drilling applications.
Built for durability and operator safety, the drill includes a mechanical safety slip clutch, heat-treated gears, and a built-in water swivel for wet drilling. Additional features such as a 360° adjustable side handle and centering aid enhance control and precision during operation.
Key Features:
- Complete system: drill motor, anchor/vacuum stand, and vacuum pump
- 2.1 HP pneumatic motor for high torque performance
- 3-speed gearbox: 400 / 900 / 1600 RPM
- Drilling capacity: up to 6" diameter (rig-mounted)
- ATEX certified for hazardous and explosive environments
- Vacuum base for fast, anchor-free setup
- Safety slip clutch for operator protection
- Built-in water swivel for wet drilling applications
- Compatible with multiple core bit connections
The CS Unitec 2 1333 0010 SV core drill system is the ideal choice for contractors and industrial professionals requiring powerful, safe, and precise drilling with maximum setup flexibility in challenging environments.
| SKU | 102264 |
|---|---|
| Weight | 49 |
| Country of Manufacture | Germany |
| Mfr. Model Number | 2 1333 0010 SV |
| Link to User Manual | x |
| Link to Schematics | x |
| Link To Catalog | http://www.csunitec.com/core-drills/pneumatic.html |
| Technical Specifications | Power: 3.8hp Air Consumption: 123cfm @90 psi Maximum Drilling Diameter: 6" (3"hand held)" 3 Speeds: 300,700,1350 RPM Air Connection: 3/4" NPT |
| Free Shipping | No |
