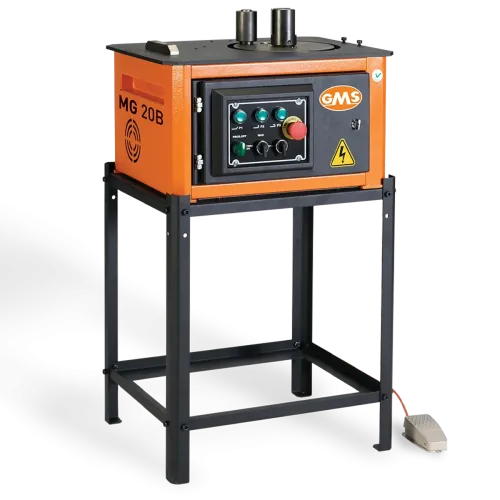

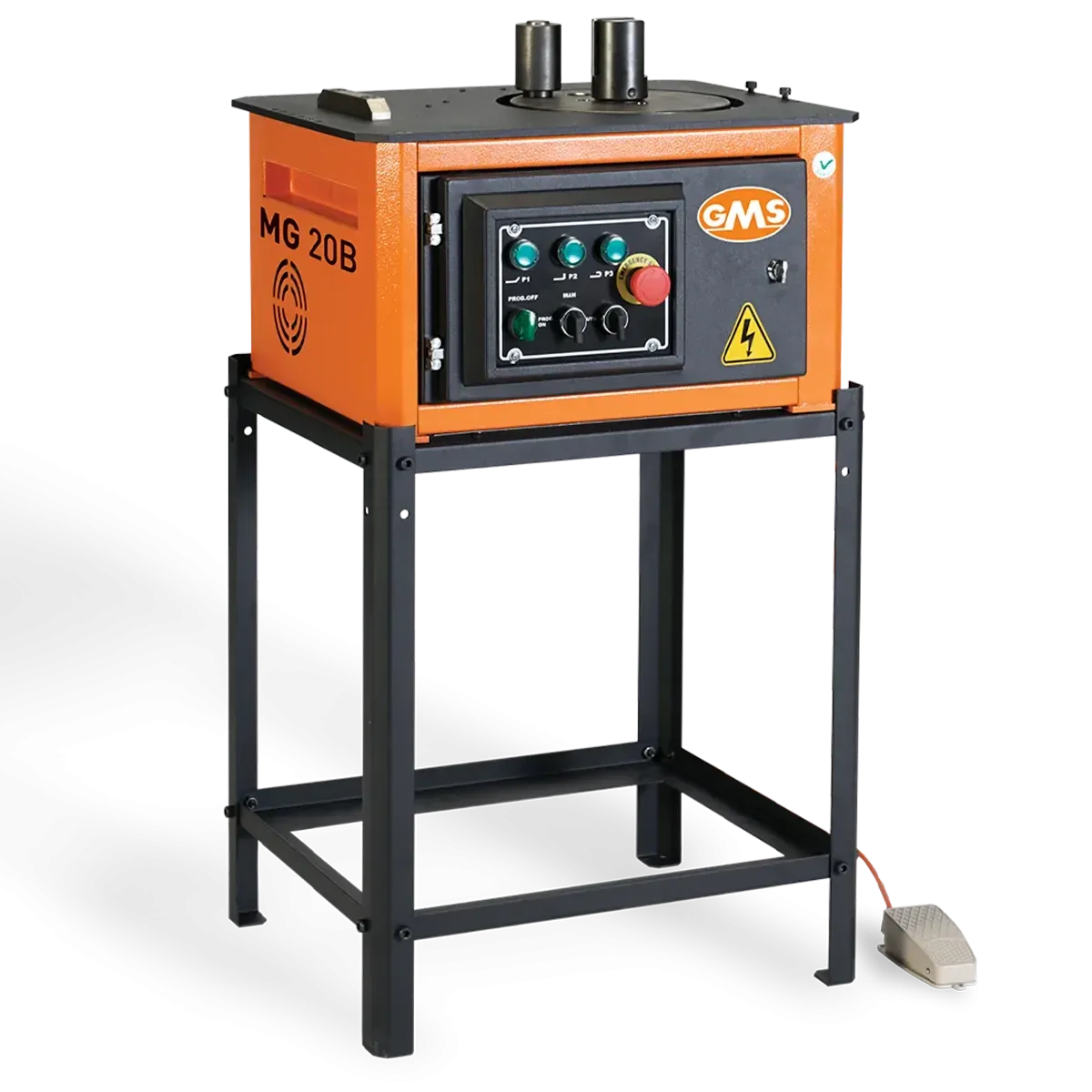

The GMS MG 20B is a portable rebar bending machine designed for construction sites where mobility, durability, and precision are essential. It offers a compact and rugged design that makes it easy to transport and operate in demanding conditions. Built in compliance with CE safety regulations, the MG 20B provides a stable, efficient, and reliable bending solution for reinforcing steel.

Key Features

• Portable and compact design: Lightweight body and ergonomic form allow easy movement and positioning on-site.

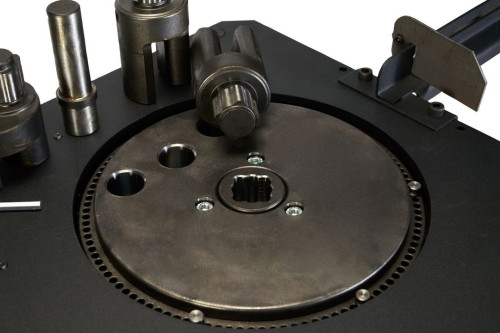

• Fixed center pin bending head: Ensures consistent, accurate, and repeatable bends.
• Optional digital control panel: Enables programmable bending sequences for repetitive work, improving efficiency.

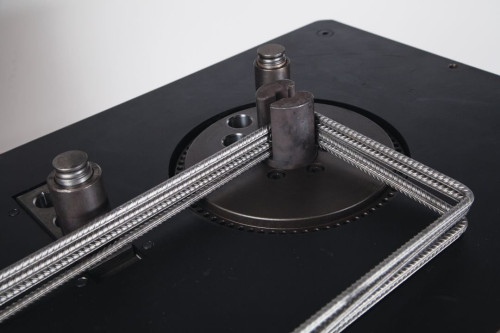

• Stirrup bending capability: Suitable for straight rebar bending and stirrup formation.
• Durable mechanical drive system: Designed for long service life with minimal maintenance.
• Safety features: Includes emergency stop, foot-pedal or push-button control, and corrosion-resistant finish for long-term reliability.

Technical Data & Dimensions

• Dimensions: 49 × 60 × 32 cm (19.3 × 23.6 × 12.6 inches)
• Voltage: Modified for 110 V single-phase
• Motor Power: 1.5 kW
• Weight: 95 kg (approximately 209 lb)
• Bending Capacity (depending on steel strength):
  • At 45 kg/mm²: Ø 20 mm × 1 or Ø 16 mm × 2
  • At 65 kg/mm²: Ø 18 mm × 1 or Ø 12 mm × 3
  • At 85 kg/mm²: Ø 16 mm × 1 or Ø 10 mm × 4
• Maximum capacity: up to one #6 bar or multiple smaller bars simultaneously.

Application & Advantages

The MG 20B is designed for on-site use in construction, precast, and steel fabrication applications. Its compact footprint (about 19 × 24 inches) allows easy transport and positioning even in tight workspaces. The machine’s efficient mechanical drive and programmable control options help operators produce accurate bends, hooks, and stirrups quickly and consistently. Its reliability, simple setup, and low maintenance requirements make it ideal for both small contractors and large construction teams.
