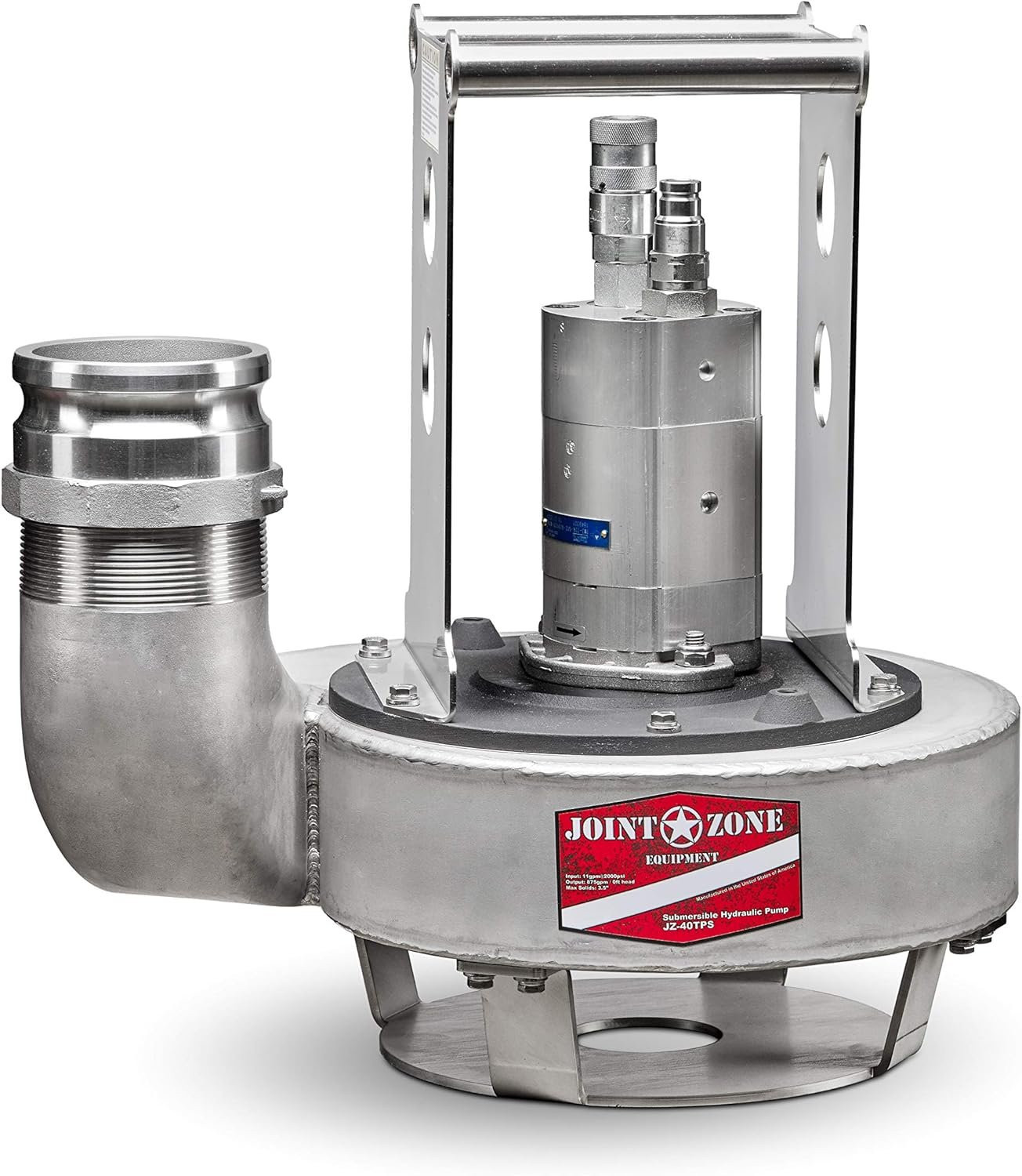

Joint Zone 40TPS 4" Stainless Steel Submersible Hydraulic Trash Pump AVAILABILITY: Normally Ships Next Business Day.
PRODUCT CODE: 141431
Trustpilot


$3,250.00
BUY THIS Joint Zone 40TPS 4" Stainless Steel Submersible Hydraulic Trash Pump TODAY FROM RENTAL TOOLS ONLINE.
This from Joint Zone(model: 40TPS) is available at one of the best prices anywhere on the internet or in-store!
Description

Details

The 40TPS compact submersible trash pump is a light weight, efficient way to move large volumes of liquids that can contain sand, dirt and gravel very quickly.

This submersible centrifugal design requires no priming and can run dry all day without damage. Great for dredge operations. Direct drive requires no maintenance as all moving parts are self lubricated with passing. The 40TPS has a 316 Stainless Steel Volute and Impeller as well as an anodized Motor Mount and Wear Plate. It is a compact submersible trash pump and is a light weight, efficient way to move large volumes of liquids that can contain sand, dirt and gravel very quickly. Pump can handle the removal of water containing solids up to 30%. It is perfect in the pumping sites of water, sand slurries, gravel and sludge on job sites.

WARRANTY - Submersible Pumps and their associated parts are warranted against defects in material and workmanship for a period of twelve months from the date of purchase. Repair or replacement of defective parts will be approved by manufacturer. This warranty becomes void if maximum pressures or flows are exceeded. Back pressure should be measured at the tool before being used. Excessive back pressure will damage shaft seal.

Additional Information

Additional Information

SKU 141431
Weight 59
Country of Manufacture
Mfr. Model Number 40TPS
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications
PUMPING CAPACITY 875 gpm (3312 lpm)
MAX GPH 52500
Max TDH 45 Ft
PUMP TYPE Trash-Sludge-Slurry-Water
CONSTRUCTION Steel Fabrication/Steel Impeller
DISCHARGE 4” Cam Loc - 3” NPT Male
WEIGHT 59 lbs. (26.8 kg)
LENGTH 19 inches (482 mm)
WIDTH 15 inches (381 mm)
HEIGHT 19 inches (482 mm)
HYDRAULIC FLOW RANGE 7-11 gpm (26-41 lpm)
MAXIMUM PRESSURE 2000 psi (138 bar)
MAXIMUM BACK PRESSURE 250 psi (17 bar)
