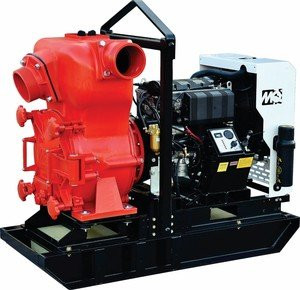

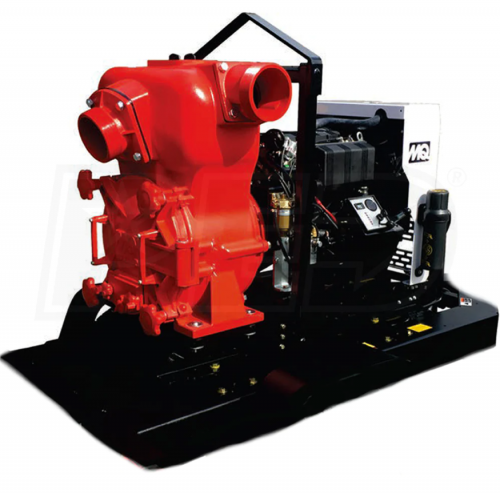

The Multiquip MQ62TKS is a 6-inch diesel-powered trash pump designed for industrial dewatering applications. It features a KOHLER KDW 1404 Tier IV FINAL 4-cylinder engine, pumps up to 1,190 gallons per minute, and handles solids up to 3 inches in diameter. The pump includes a skid mount with a 16-gallon fuel tank, abrasion-resistant components, and a shock-mounted control panel. This item is available for purchase only.
- Description
-
Details
Industrial 6" wet priming de-watering trash pump provides the proven performance you have come to expect from Multiquip. The pump is powered by trusted and efficient KOHLER KDW 1404 Tier IV FINAL diesel engine. The MQ62TKS loads easily onto a flatbed truck and can quickly respond to challenging de-watering applications.
- Pumps up to 1,190 gallons per minute.
- Maximum head rated 111 feet.
- Powered by KOHLER Tier 4 Final 4-cylinder, diesel engine.
- Engine incorporates a water/fuel separation filtration system.
- Full featured, shock mounted LOFA EL240 Control Panel.
- Skid mount with integral 16-gallon fuel cell.
- Pump-end supplies large cleanout cover
- 6” Male NPT Threaded Suction/Discharge ports.
- Wear-resistant ductile cast iron volute and impeller assembly.
- Stainless steel wear plate.
- Integrated lifting bale.
- Abrasion-resistant, oil lubricated tungsten/carbide seal system.
- Pumps solids up to 3 inches in diameter.
- Approximate running time of 8.6 hours.
- Specifications
-
Specifications
SKU 142163 Weight 975 Country of Manufacture Mfr. Model Number MQ62TKS Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications SUCTION x DISCHARGE 6 x 6 in
152 x 152 mm
MAX. WATER CAPACITY 1190 gpm MAX. LIFT 25 ft MAX. HEAD 111 ft MAX. PRESSURE 48.9 psi MAX. SOLID INTAKE 3 in FUEL TANK CAPACITY 16 Gal OVERALL LENGTH 80 in OVERALL WIDTH 39 in OVERALL HEIGHT 54 lbs OPERATING WEIGHT 975 lbs Free Shipping No - Product Questions
-
