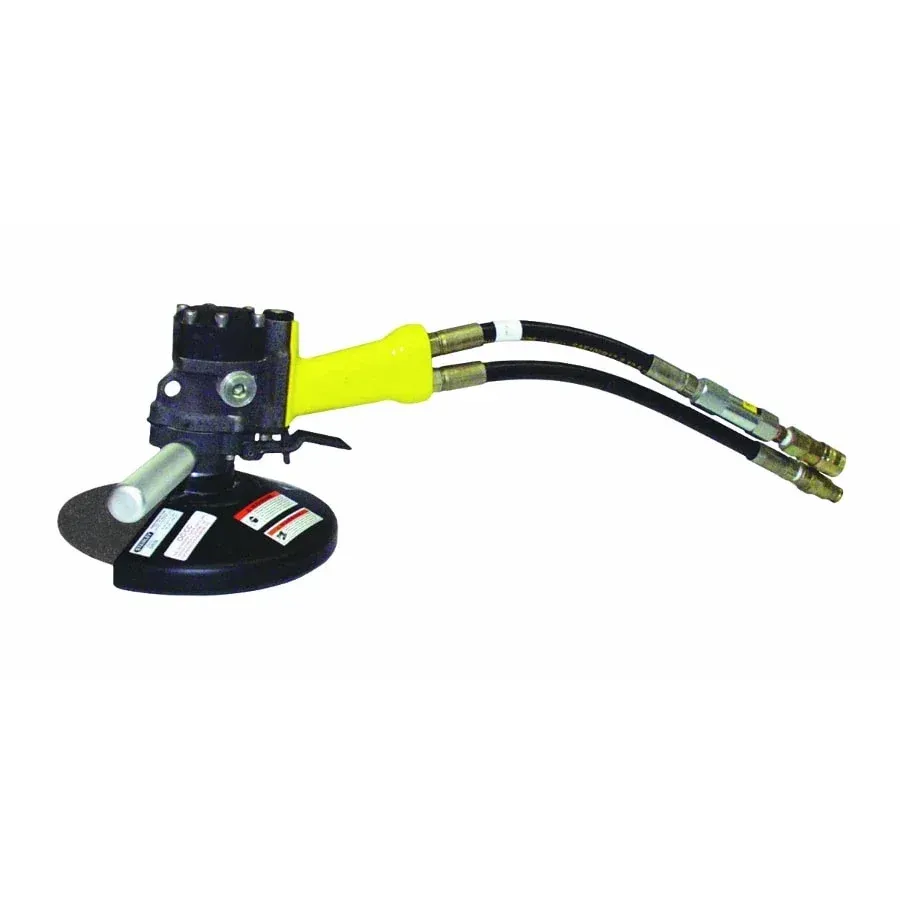

The Stanley GR30 Grinder is used for top, face, and side grinding using 9 inch (228.6 mm) diameter wheels. Wire brushes can also be used and depressed-center wheels with an optional adapter.
- Description
-
Details
Features:
The integral Stanley Hyrevz gear motor is manufactured to exacting standards to deliver maximum efficiency. The over-sized motor run-down valve allows the motor to freely run down in speed when the grinder is turned off ensuring that a properly installed wheel will not spin off the spindle. The built-in reverse-check valve in the handle prevents operating the grinder when reverse-plumbed to the hydraulic system. The Stanley dual-spool selector is accessible under a seal plug at the rear of the tool.
Specifications:
- Capacity: 9 inch
- Weight: 12 lbs
- Length: 8 inch
- Width: 12.5 inch
- Hydraulic Pressure:1000-2000 PSI
- Input Flow Range: 7-9 GPM
- RPM: 5600 RPM @ 8 GPM
- Optimum Flow: 8 GPM
- Porting: -8 SAE O-Ring
- Connect Size & Type: 3/8 inch Flush Faced
- Motor: Integral STANLEY Hyrevz Gear Motor
- Max Pressure: 2000 PSI
- Additional Information
-
Additional Information
SKU 143137 Weight 12 Country of Manufacture Mfr. Model Number GR30701 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications No Free Shipping No
