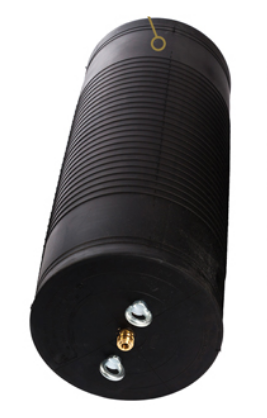

Sava 523941 24"-48" Multi-Size Inflatable Pipe Plug

Sava 523941 24"-48" Multi-Size Inflatable Pipe Plug Product Guide

Pipe Plug Selection Notes

This Sava inflatable pipe plug covers a nominal pipe diameter range from 24" to 48", offering flexibility across multiple pipe sizes within that range. When selecting this plug, confirm the exact pipe diameter so the plug fits tightly within the specified range since inflation pressure and backpressure limits depend on the precise diameter in use. The plug’s reinforced NR-SBR rubber with Kevlar cording provides tensile strength, but the pipe wall condition and surface irregularities must be checked to confirm correct seating and sealing. Confirm backpressure against the size-specific chart or manual for the selected pipe diameter, and keep that check separate from the specified inflation pressure.

Pipe Access And Setup Planning

Plan access to the pipe so the plug can be inserted smoothly and inflated without obstruction. Inspect the plug thoroughly for any cuts, abrasions, or rubber damage before use, especially at larger sizes where damage risk is higher. Use a protective sleeve if the pipe’s interior is rough or contains debris to avoid tearing the rubber during insertion or retrieval. Maintain the specified inflation pressure by regularly monitoring through the standard 1/4" male inflation fitting and avoid leaving the plug inflated and unattended for long periods.
