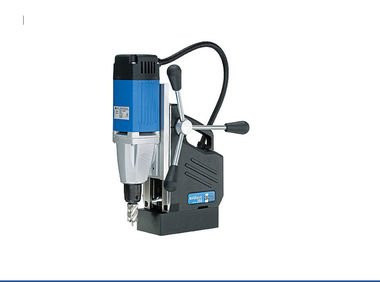

CS Unitec MABasic 200-220 Single-speed Portable Magnetic Drill AVAILABILITY: Normally Ships in 1-5 Business Days

BUY THIS CS Unitec MABasic 200-220 Single-speed Portable Magnetic Drill TODAY FROM RENTAL TOOLS ONLINE.
This Compact Electric Magnetic Drill from CS Unitec(model: MABasic 200-220 Volt) is available at one of the best prices anywhere on the internet or in-store!



Strong 8.2 Amp motor

Compact, lightweight and portable – 12-1/4" high, 27 lbs. Drill up to 1-3/8" dia.

Uses annular cutters up to 1-3/8" dia.; 6-1/3" stroke

Twist drilling capacity up to 1/2" dia.

3-1/3" stroke with included geared chuck

Internal lubrication system

With included 1/2" chuck, this model easily converts to a standard drill press with a 3 1/3" stroke for conventional twist drills.

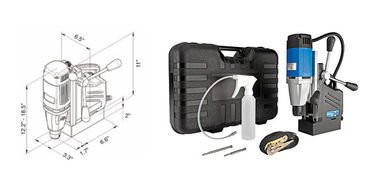

Standard Equipment includes lubrication bottle, 3/4" weldon shank, 1/2" geared chuck, safety strap, carabin hook, allen keys, pilot pin and carrying case.

Additional Information

Additional Information

SKU 141607
Weight 27
Country of Manufacture Germany
Mfr. Model Number MABasic 200-220 Volt
Link to User Manual No
Link to Schematics No
Link To Catalog No
Technical Specifications
  • Motor Power: 8.2 Amp / 220 Volt
  • Weight: 27 lbs.
  • Stroke: 6-1/3" (3-1/3" with geared chuck)
  • Hole Capacity: 1-3/8" dia.
  • Twist Drill Capacity: 1/2" dia.
  • Speed: 450 RPM
  • Magnet Base Size: 6-5/8" L x 3-1/3" W
  • Dimensions 12-1/4" H x 9" L x 6-1/2" W
  • Magnetic Force (1" plate): 3080 lbs
  • Arbor Bore: 3/4" Weldon Shank Internal Lubrication Oil Bottle Included
  • Free Shipping No
