The performance of any ultrasonic thickness gauge relies heavily on the probe and its suitability to the material being measured. Therefore, selecting the right probe is vital. All Cygnus’ probes are made from stainless steel and have a hard wear face or a wear membrane to protect the probe.
- Description
-
Details
Includes:
- Integral coiled double-jacket cable.
- Rugged locking connector.
Features:
- All round measurement of wall thickness with corrosion through coatings.
- Used in multiple-echo mode.
- Require no zeroing and have a high linear accuracy.

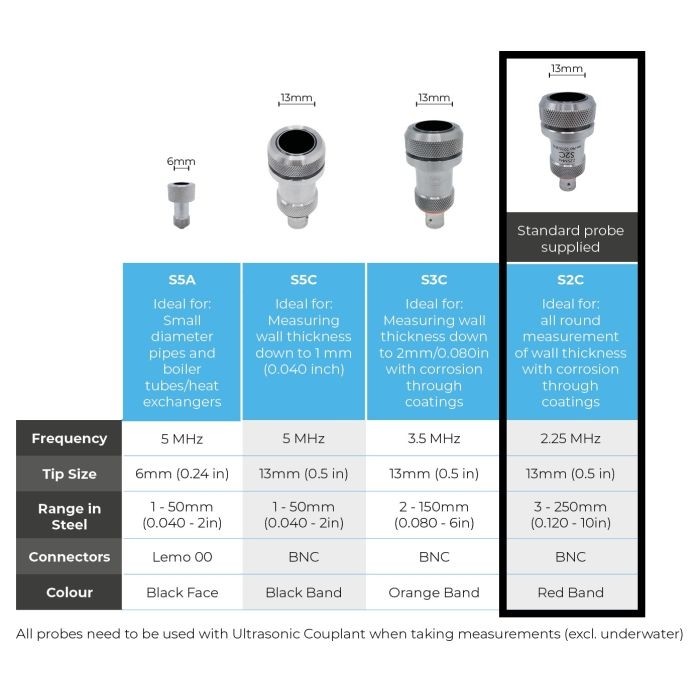

Specifications:
- Type: Single crystal probe
- Frequency: 2.25 MHz
- Tip size: 13mm/0.5 in.
- Range in Steel: 0.120 in/3mm - 10 in./250mm
- Connectors: BNC
- Color: Red band
- Material: Stainless steel
- Additional Information
-
Additional Information
SKU 142893 Weight 1 Country of Manufacture Mfr. Model Number 001-7230 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications No Free Shipping No
