Cygnus 001-7232 Cygnus PROBE S5C SINGLE CRYSTAL 5.0 MHZ 13MM W/COILED CABLE FOR DIVE THICKNESS GAUGE

by Cygnus Instruments
SKU
142889
Model
001-7232
The Cygnus 001-7232 is a single crystal 5.0 MHz probe with a 13mm tip, designed for use with dive thickness gauges. It features a coiled double-jacket cable and rugged locking connector, suitable for measuring wall thickness from 1mm to 50mm in steel using multiple-echo mode. The probe requires no zeroing and offers high linear accuracy. This item is available for purchase only.

Purchase

$1,377.08
Availability: Normally Ships in 1-2 Weeks.

Includes:

  • Integral coiled double-jacket cable.
  • Rugged locking connector.

Features:

  • Ideal for measuring wall thickness down to .04 in./ 1mm.
  • Used in multiple-echo mode.
  • Require no zeroing and have a high linear accuracy.

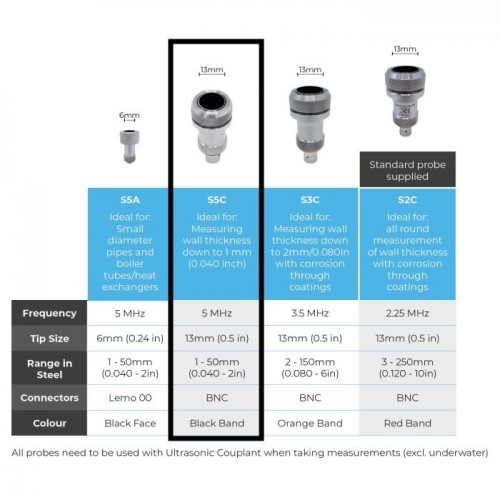

Specifications:

  • Type: Single crystal probe
  • Frequency: 5 MHz
  • Tip Size: 0.5 in./13mm
  • Range in Steel: 0.04 in/1mm - 2 in./50mm
  • Connectors: BNC
  • Color: Black band
  • Material: Stainless steel
