The Cygnus 001-7235 Probe T5B is a 5 MHz twin crystal ultrasonic probe designed for general-purpose corrosion and pitting detection on front and back walls. It features an integral coiled double-jacket cable with a rugged locking twin Lemo 00 connector, providing high linear accuracy without the need for zeroing. The probe includes a 13/8mm tip size and operates within a temperature range of 14°F to 158°F. This item is available for purchase only.
- Description
-
Details
Includes:
- Integral coiled double-jacket cable.
- Rugged locking connector.
Features:
- Ideal for general purpose heavy front/back wall corrosion or pitting.
- Used in multiple-echo mode.
- Require no zeroing and have a high linear accuracy.

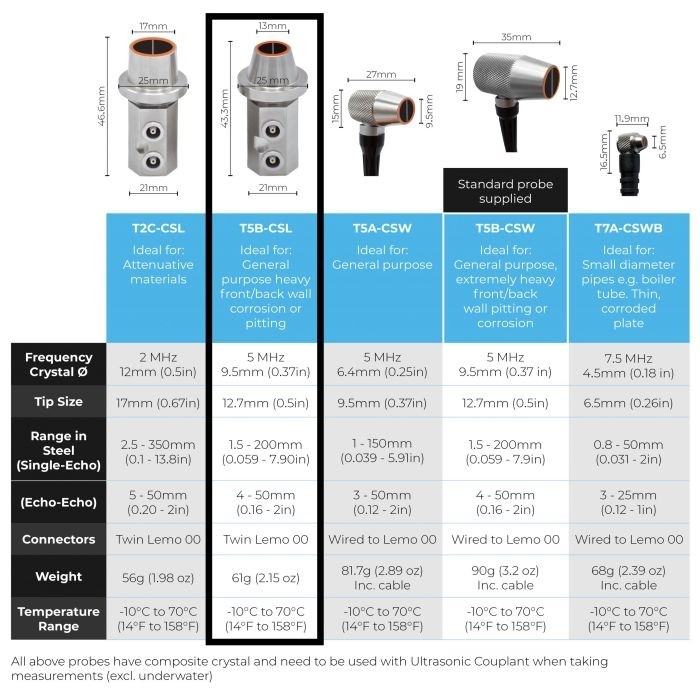

Specifications:
- Type: Twin crystal probe
- Frequency: 5 MHz - .37 in./9.5mm
- Tip Size: 0.5 in./12.7mm
- Range in Steel (Single-Echo): .059 in./1.5mm/ - 7.90 in./200mm
- Echo-Echo: .16 in./4mm - 2 in./50mm
- Connectors: Twin Lemo 00
- Weight: 2.15 oz./61g
- Temperature Range: 14°F/-10°C - 158°F/20°C
- Specifications
-
Specifications
SKU 142887 Weight 2 Country of Manufacture Mfr. Model Number 001-7235 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications No Free Shipping No - Product Questions
-
