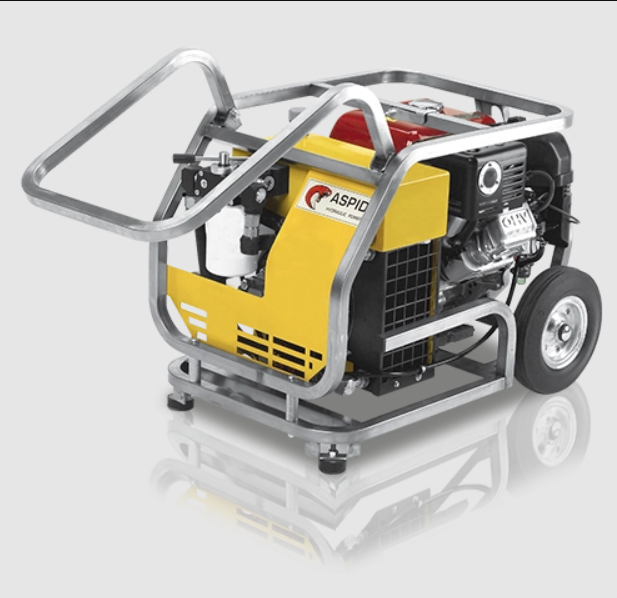

Joint Zone K0024 Aspid Hydraulic Power Pack 9HP Honda (5gpm) w/ 50' Hose Set Product Guide
How This Power Unit Fits Into A Hydraulic Tool Package
The Joint Zone K0024 Aspid is a gasoline-powered hydraulic power pack that delivers a 5 gallons per minute (GPM) at 2,000 PSI hydraulic flow through a single-circuit design. This output suits a range of connected hydraulic tools that require moderate flow and pressure, such as utility, rescue, and construction devices. Compared to larger multi-circuit or higher-flow power units, the Aspid offers a balance of portability and capacity for jobs where transport is important but full-size power units are excessive. The 9 horsepower Honda engine supplies power in outdoor or ventilated settings, with recoil start and integrated oil cooling to support steady operation under load.
Power Unit Planning Notes
This power pack ships on a pallet and typically requires freight delivery with access to a loading dock, forklift, or liftgate for unloading. Its 143-pound weight and compact footprint (approximately 28 × 20 × 22 inches) allow maneuvering in tight work locations or remote sites with appropriate lifting equipment or manual handling. The stainless steel frame with anti-vibration mounts provides structural support while minimizing vibrations that could affect component life and operator comfort.
The included 50-foot hose set is suited for standard jobsite tool connections but verify hose length and routing to avoid kinks, abrasion, or obstruction that could restrict hydraulic flow or return. When planning longer hose runs beyond this distance, consider larger hose diameter or additional power supply to compensate for friction losses.
Since this unit is powered by a gasoline engine, it should be positioned outdoors or in a ventilated space with exhaust positioned away from workers and the immediate work face. For jobs on boat decks or marine environments, position the muffler or exhaust away from fiberglass, coatings, hoses, and other heat-sensitive materials. If the unit is wheeled or portable, confirm it is secured firmly during operation to prevent unintended movement.
Hydraulic fluid requirements vary by jobsite, especially near water or environmentally sensitive areas. This power pack does not specify compatibility with biodegradable or environmentally acceptable oils; confirm fluid specifications in advance if such conditions apply. After use, inspect hoses and couplers for leaks or damage and check oil levels as part of routine service. Keep the unit and accessories clean to maintain performance and avoid rental return charges.
- Description
-
Details
The DOA ASPID Hydraulic Power Pack is a compact, high-performance gasoline-powered hydraulic power unit designed for professionals who require dependable hydraulic power in the field. Manufactured in Italy by DOA Hydraulic Tools, the ASPID combines outstanding portability, rugged construction, and proven hydraulic performance to power a wide range of hydraulic tools used in construction, utility maintenance, water and sewer infrastructure, pipeline maintenance, civil protection, rescue operations, and industrial applications.
Built around a reliable 9 HP Honda gasoline engine, the ASPID delivers 20 liters per minute (5.3 GPM) at 140 bar (2,030 PSI), providing consistent hydraulic flow for professional hydraulic breakers, saws, pumps, drills, grinders, chain saws, and other compatible hydraulic equipment. The hydraulic system is engineered for dependable performance while maintaining exceptional fuel efficiency and ease of operation.
Built for Tough Job Sites
Every component of the DOA ASPID is designed to withstand demanding environments. Its stainless steel protective frame resists corrosion while providing outstanding durability in harsh outdoor conditions. Internal components are mounted on anti-vibration shock mounts to reduce vibration, improve reliability, and increase operator comfort during extended operation.The hydraulic quick-connect couplers are installed on impact-resistant swivel fittings, helping protect connections from accidental damage while simplifying hose installation and removal. A central lifting hook allows easy loading, unloading, and transportation by crane or lifting equipment when necessary.
Engineered for Continuous Performance
Unlike many portable hydraulic power units, the DOA ASPID features a high-efficiency hydraulic oil cooling system with a centrifugal fan. This advanced cooling system allows the unit to maintain optimal hydraulic temperatures during continuous operation, even in hot climates or under heavy workloads.Automatic engine acceleration increases engine speed only when hydraulic demand requires it, reducing fuel consumption, lowering noise levels, and minimizing engine wear while maximizing productivity.
Ideal Applications
The DOA ASPID is trusted by professionals across numerous industries, including:- Underground utility maintenance
- Water and sewer infrastructure
- Pipeline construction and repair
- Municipal public works
- Civil protection and emergency response
- Road and highway maintenance
- Construction contractors
- Industrial maintenance
- Rental equipment fleets
- Rescue operations
Its compact footprint and lightweight design make it easy to transport in service vehicles while providing the hydraulic power needed for demanding field applications.
Key Features
- 9 HP Honda gasoline engine
- Delivers 20 L/min (5.3 GPM) at 140 bar (2,030 PSI)
- Rugged corrosion-resistant stainless steel frame
- Automatic engine acceleration system
- High-efficiency hydraulic oil cooler with centrifugal fan
- Anti-vibration component mounting
- Impact-resistant swivel hydraulic couplers
- Central lifting hook for easy transport
- Compact, lightweight portable design
- Built for continuous professional use
- Available with customized hydraulic configurations upon request
Why Choose the DOA ASPID?
The DOA ASPID has become one of DOA's most widely used hydraulic power packs because it delivers the ideal combination of power, portability, durability, and reliability. Its premium construction, efficient cooling system, and professional-grade hydraulic output make it an excellent choice for contractors, municipalities, utility companies, rental fleets, and emergency response teams that require dependable hydraulic power wherever the job takes them. - Specifications
-
Specifications
SKU 143291 Weight 143 Country of Manufacture Mfr. Model Number K0024 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications Category Specification Weight 143 lb Dimensions (L × W × H) 27.5 × 19.6 × 22.4 in Hydraulic Flow 5 GPM @ 2000 PSI Max Pressure 2000 PSI Engine Honda 9 hp – gasoline Starter Recoil Acceleration Manual Hose Length 50 ft Frame Stainless steel Mounting Anti-vibration shock-mounted components Oil Cooling High-efficiency centrifugal fan system Quick Couplers Impact-free swivel quick couplers Lifting Central lifting hook Free Shipping No - Product Questions
-
