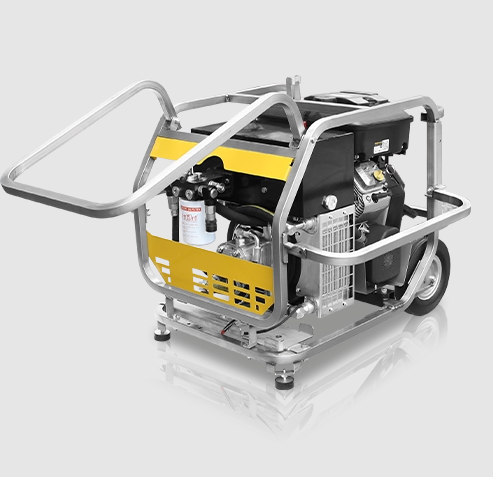

Joint Zone K0064 Raptor Hydraulic Power Unit 18hp Vanguard (5-10 gpm) w/ 50' Hose Set Product Guide
How This Power Unit Fits Into A Hydraulic Tool Package
The Joint Zone K0064 Raptor supplies hydraulic power through a gasoline-driven 18hp Vanguard engine, delivering a flow range of 5 to 10 gallons per minute. This flow capacity suits hydraulic tools that require moderate to high flow rates, such as pipe maintenance equipment or civil protection hydraulic tools. A key feature is its integrated 50-foot hose set with quick couplers on impact-resistant swivel fittings, supporting connection to compatible tools and flexible positioning on the jobsite.
This unit is often selected when a portable, gasoline-powered hydraulic supply is needed for outdoor or limited-access work locations where electric power sources are unavailable or impractical. Its stainless steel frame with foldable handles and anti-vibration shock absorbers supports transport and can reduce vibration transfer to the power unit. Compared to electric hydraulic power units, the Raptor's gasoline engine enables deployment away from electrical outlets but requires attention to ventilation and exhaust management.
Power Unit Planning Notes
The unit includes a stainless steel frame and centralized lifting hook which support with positioning and transport but note that it ships by freight on a pallet; a loading dock, forklift, or liftgate may be necessary for delivery and unloading. Allow enough lead time for freight shipment due to the unit’s size and weight.
When using the included 50-foot hose set, plan routing carefully to avoid kinks, abrasion, or restricted return flow. Very long hose runs or multiple hose sets may require larger hose diameters or a more powerful hydraulic supply to compensate for friction loss. Confirm coupler compatibility between the unit and the connected tools when connecting to quick couplers on the supplied hoses.
Because this is a gasoline-powered unit, position the hydraulic power unit and engine exhaust source away from the immediate work face to direct fumes and heat away from workers and sensitive materials. If used on a boat deck or similar surface, secure the wheeled frame to prevent rolling or shifting.
For work near water or in municipal environments, consider hydraulic-fluid requirements at the location. RTO does not guarantee the hydraulic oil type in the unit unless arranged in advance.
- Description
-
Details
DOA Super Raptor Hydraulic Power Pack
When demanding hydraulic applications require dependable performance in the harshest environments, the DOA Super Raptor Hydraulic Power Pack delivers the flow, pressure, and reliability professionals depend on. Designed and manufactured in Italy by DOA Hydraulic Tools, the Super Raptor combines an industrial-grade 18 HP Vanguard twin-cylinder gasoline engine with a rugged stainless steel frame to provide a portable hydraulic power source for construction, utility, municipal, pipeline, rescue, marine, and industrial applications.Built for continuous operation, the DOA Super Raptor is engineered to power a wide range of hydraulic equipment including hydraulic breakers, chipping hammers, cut-off saws, chain saws, circular saws, core drills, submersible pumps, post drivers, impact wrenches, rescue tools, and other high-performance hydraulic equipment. Whether you're working on emergency repairs, utility maintenance, infrastructure projects, or remote job sites, the Super Raptor provides consistent hydraulic performance where electric power isn't available.
Professional Hydraulic Performance
The DOA Super Raptor is available with multiple hydraulic pump configurations to match the demands of your application. Depending on the pump installed, the unit can be configured to deliver approximately:- Up to 38 L/min (10 GPM) hydraulic flow
- Operating pressures up to 180 Bar (2,610 PSI), with additional custom configurations available
- Hydraulic output optimized for numerous professional hydraulic tools
- Manual or optional automatic (POD) engine acceleration
- Recoil and electric start for dependable field operation
Because every hydraulic application has unique flow and pressure requirements, DOA offers multiple pump configurations, allowing customers to specify the ideal hydraulic output for their equipment.
Designed for Harsh Jobsite Conditions
Unlike many conventional hydraulic power units, the DOA Super Raptor is engineered specifically for demanding commercial and industrial use. Every component is designed to maximize durability while minimizing downtime.Key design features include:
- Heavy-duty stainless steel protective frame
- Large folding carrying handles for easier transportation
- Central lifting hook for crane or hoist lifting
- Anti-vibration mounted hydraulic components
- Impact-resistant swivel-mounted hydraulic quick couplers
- High-efficiency dual radiator hydraulic oil cooling system
- Compact footprint for easier transport and storage
The advanced cooling system helps maintain hydraulic oil temperatures during extended operation, allowing the Super Raptor to perform reliably even in hot climates and continuous-duty applications.
Ideal Applications
The DOA Super Raptor is frequently used for:- Utility construction
- Water and sewer maintenance
- Underground pipe repair
- Pipeline maintenance
- Civil protection and emergency response
- Municipal public works
- Marine and offshore operations
- Infrastructure construction
- Bridge maintenance
- Railroad maintenance
- Industrial maintenance
- Remote hydraulic tool operation
Its portability makes it an excellent choice anywhere reliable hydraulic power is needed without access to electrical service.
Compatible Hydraulic Tools
The DOA Super Raptor is capable of powering numerous hydraulic tools, including:- Hydraulic breakers
- Chipping hammers
- Rock drills
- Core drilling systems
- Hydraulic chain saws
- Circular cut-off saws
- Hydraulic pumps
- Post drivers
- Hydraulic rescue equipment
- Hydraulic impact wrenches
- Hydraulic grinders
- Underwater hydraulic tools (application dependent)
- Specialty industrial hydraulic equipment
Its configurable hydraulic output allows contractors to match the power pack to the specific tool being used for maximum efficiency.
Technical Specifications
- Engine: Vanguard 18 HP twin-cylinder gasoline engine
- Starting System: Electric and recoil start
- Hydraulic Flow: Approximately 30–38 L/min (configuration dependent)
- Operating Pressure: Up to 180 Bar (configuration dependent)
- Acceleration: Manual or automatic (POD)
- Weight: Approximately 110 kg (243 lbs.)
- Dimensions: 85 × 60 × 65 cm
- Standard Hydraulic Hose Length: 15 meters (50 ft.)
Why Choose the DOA Super Raptor?
Professionals choose the DOA Super Raptor because it delivers:- Italian-engineered reliability
- Heavy-duty commercial construction
- Excellent power-to-size ratio
- Outstanding cooling performance
- Configurable hydraulic flow and pressure
- Easy transportation and lifting
- Long service life
- Dependable performance in demanding environments
Whether you're powering hydraulic construction equipment, utility maintenance tools, or industrial hydraulic machinery, the DOA Super Raptor provides the professional hydraulic power needed to keep projects moving efficiently.
As an authorized DOA dealer in North America, Rental Tools Online offers expert product support, technical assistance, replacement parts, and nationwide shipping. Contact our hydraulic equipment specialists to configure the DOA Super Raptor Hydraulic Power Pack with the flow, pressure, and hydraulic connections required for your specific application.
- Specifications
-
Specifications
SKU 143392 Weight 242 Country of Manufacture Italy Mfr. Model Number K0064 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications Weight 242 / 110 kg Dimensions 33x24x26 in / 85x60x65 cm PSI OUTPUT PSI 2000 / 140 Bar HYD CONNECTIONS Single-Output PRIMARY OUTPUT 0-10 GPM / 0-38 Lpm STARTER Electric MOTOR SIZE 18 HP Gas ENGINE / MOTOR Vanguard MADE IN Italy WARRANTY 12 Months Free Shipping No - Product Questions
-
