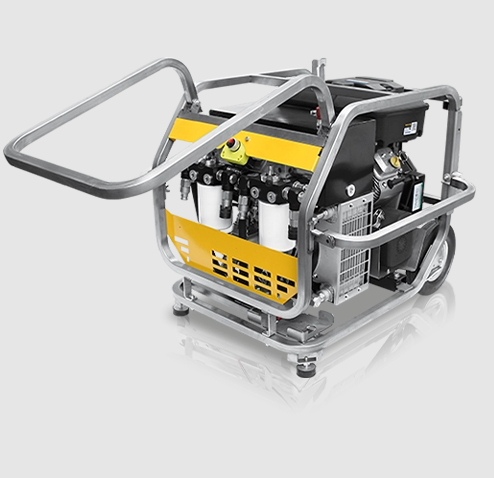

The DOA Super Raptor Dual Hydraulic Power Unit is a high-output, twin-circuit gasoline-powered hydraulic power pack designed to operate multiple hydraulic tools with maximum efficiency. Powered by a 23 HP Vanguard engine with electric start, it delivers up to 6 GPM per circuit or 12 GPM combined, with working pressure up to 2,000 PSI, making it ideal for demanding industrial and jobsite applications requiring dual-tool capability.
- AI Product Guide
-
Joint Zone K0644 Super Raptor Dual Hydraulic Power Unit 23hp Vanguard (2 @ 6 GPM or 1 @ 12 GPM) w/ Two 50' Hose Product Guide
How This Power Unit Fits Into A Hydraulic Tool Package
The Joint Zone Super Raptor Dual Hydraulic Power Unit supplies hydraulic flow through two independent circuits, each rated at approximately 6 GPM, or a combined single circuit delivering up to 12 GPM. This dual-circuit capability allows operation of two hydraulic tools simultaneously at moderate flow, or one tool requiring higher flow. Its maximum working pressure of 2,000 PSI accommodates a wide range of demanding industrial, construction, and utility hydraulic tools that require substantial flow and pressure.
This power unit is gasoline-powered by a 23 HP Vanguard twin-cylinder engine with electric start. This configuration makes it suitable for outdoor and ventilated locations where engine exhaust can be dispersed away from the immediate work face. Compared to smaller single-circuit hydraulic power packs, this unit provides greater configuration options when multiple tools operate concurrently or when tools require higher flow rates.
It uses impact-protected swivel-mounted quick couplers compatible with standard hydraulic hoses, supporting connected hydraulic tools designed for up to 2,000 PSI. The integrated oil cooling system with a centrifugal fan supports system temperature during heavy or use. The stainless steel frame with folding handles and a central lifting hook supports transport and positioning on site, while anti-vibration mounts protect components during operation.
Power Unit Planning Notes
This hydraulic power unit commonly ships by freight on a pallet and typically requires unloading equipment such as a forklift or loading dock. Allow sufficient lead time for delivery and plan return logistics accordingly. Keep all included accessories, hoses (two 50-foot hoses in this case), and instruction materials intact to avoid additional charges on return.
Since it is gasoline-powered, plan for adequate ventilation of engine exhaust and position the unit so the muffler and fumes are positioned away from the immediate work face and sensitive materials such as fiberglass or coatings. When deployed on a boat deck, secure the wheeled unit firmly to prevent rolling or shifting due to vessel movement.
For long hydraulic hose runs exceeding standard lengths, additional planning may be required. Larger diameter hoses or increased hydraulic power units might be needed to compensate for pressure drops caused by friction loss. Confirm hose routing to avoid kinks, abrasion, or interference with operator movement.
Near-water or environmentally sensitive jobs may have hydraulic-fluid specifications. Although there is no explicit information on biodegradable or environmentally acceptable oil compatibility, consider any such requirements during project planning and notify suppliers in advance if specific fluids are needed. RTO does not guarantee hydraulic oil type unless specified ahead of rental or purchase.
- Description
-
Details
DOA SUPER RAPTOR 23 HP Dual Hydraulic Power Pack
Professional 23 HP Gasoline Hydraulic Power Unit
The DOA SUPER RAPTOR 23 HP Dual Hydraulic Power Pack is a premium-grade hydraulic power unit engineered for demanding industrial, construction, utility, marine, emergency response, and infrastructure maintenance applications. Designed and manufactured in Italy by DOA Hydraulic Tools, the SUPER RAPTOR delivers exceptional hydraulic performance while providing the flexibility to operate either two hydraulic tools simultaneously or a single high-flow hydraulic circuit from one compact power source.
Powered by a reliable 23 HP Vanguard gasoline engine with electric start, this professional hydraulic power pack is designed for contractors and municipalities that require dependable hydraulic power in locations where electric power is unavailable. Its innovative dual-circuit design allows operators to choose between two independent 20 L/min hydraulic circuits or combine both circuits into a single 40 L/min output, making it one of the most versatile hydraulic power units available. Maximum operating pressure reaches 170 Bar, allowing the unit to power a wide variety of professional hydraulic tools with consistent performance.
Built for Professional Hydraulic Applications
The DOA SUPER RAPTOR is engineered for continuous commercial use in demanding environments. Whether powering hydraulic submersible pumps, breakers, cut-off saws, drills, core drills, chainsaws, grinders, impact wrenches, rescue equipment, or specialty hydraulic tools, this power pack provides dependable hydraulic flow with outstanding efficiency.
The heavy-duty stainless steel frame resists corrosion and is ideal for marine, coastal, municipal, and industrial environments. Large folding handles simplify transportation while minimizing storage space, and the integrated central lifting hook makes loading, unloading, and crane lifting fast and safe.
Dual Hydraulic Circuit Flexibility
Unlike conventional hydraulic power packs, the SUPER RAPTOR Dual offers exceptional operational flexibility. Operators can quickly configure the machine for multiple jobsite needs, including:
- Two independent 20 L/min hydraulic circuits
- One combined 40 L/min hydraulic circuit
- Fast hydraulic flow selection using integrated solenoid valves
- Manual engine acceleration for precise hydraulic control
This allows crews to maximize productivity by operating multiple tools or supplying additional hydraulic flow to larger equipment as job requirements change.
Designed for Reliability
Every component of the DOA SUPER RAPTOR is engineered for long service life under harsh operating conditions. Professional features include:
- 23 HP Vanguard commercial gasoline engine
- Electric start for fast, reliable operation
- Stainless steel protective frame
- High-efficiency oil cooling system with centrifugal cooling fan
- Anti-vibration mounted components
- Heavy-duty impact-resistant swivel hydraulic couplers
- Central lifting point
- Compact transport dimensions
- Professional hydraulic system engineered for continuous operation
These features reduce operator fatigue, improve component life, and increase reliability in the field.
Ideal Industries
The DOA SUPER RAPTOR 23 HP Dual Hydraulic Power Pack is ideal for:
- Utility contractors
- Water and wastewater maintenance
- Municipal public works
- Emergency response teams
- Fire departments
- Marine construction
- Offshore operations
- Commercial diving support
- Pipeline maintenance
- Civil engineering projects
- Bridge maintenance
- Infrastructure repair
- Railroad maintenance
- Industrial maintenance contractors
- Rental equipment fleets
Hydraulic Tool Compatibility
This hydraulic power unit is suitable for powering many professional hydraulic tools, including:
- Hydraulic submersible pumps
- Hydraulic trash pumps
- Hydraulic breakers
- Hydraulic hammer drills
- Hydraulic core drills
- Hydraulic chainsaws
- Hydraulic cut-off saws
- Hydraulic grinders
- Hydraulic impact wrenches
- Hydraulic rescue tools
- Hydraulic post drivers
- Hydraulic augers
- Hydraulic compactors
- Custom hydraulic equipment
Technical Specifications
Specification Value Engine Vanguard 23 HP Gasoline Starting System Electric Start Hydraulic Flow 20–40 L/min Hydraulic Configuration Dual 20 L/min or Single 40 L/min Maximum Pressure 170 Bar Acceleration Manual Weight 130 kg / 287 lb Dimensions 85 × 60 × 65 cm Standard Hose Length 15 m Why Choose the DOA SUPER RAPTOR 23 HP Dual?
Professionals choose the DOA SUPER RAPTOR 23 HP Dual Hydraulic Power Pack because it combines powerful hydraulic performance with exceptional versatility in a compact, field-proven package. Its dual hydraulic circuit design, corrosion-resistant stainless steel construction, commercial Vanguard engine, and efficient cooling system make it an excellent solution for contractors, rental companies, municipalities, and industrial maintenance crews that demand dependable hydraulic power day after day.
Whether you're powering a single high-flow hydraulic tool or operating two hydraulic tools simultaneously, the DOA SUPER RAPTOR 23 HP Dual delivers the performance, reliability, and flexibility needed for demanding professional applications.
- Specifications
-
Specifications
SKU 143394 Weight 287 Country of Manufacture Mfr. Model Number K0644 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications Weight 287 lbs / 130 kg Dimensions 33x24x26 in / 85x60x65 cm PSI OUTPUT PSI 2000 / 140 Bar HYD CONNECTIONS Dual-Output PRIMARY OUTPUT 2 @ 6 GPM (23 LPM) or 1 @ 12 GPM (45 LPM) STARTER Electric MOTOR SIZE 23 HP Gas ENGINE / MOTOR Vanguard MADE IN Italy WARRANTY 12 Months Free Shipping No - Product Questions
-
