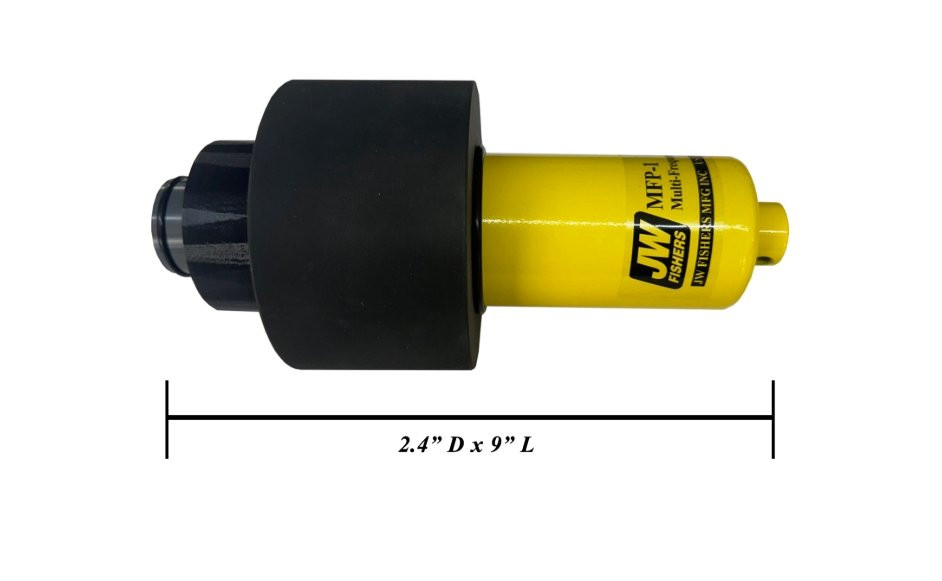

JW Fishers MFP-1 Multifrequency Pinger AVAILABILITY: Normally Ships in 1-5 Business Days
PRODUCT CODE: 124123
Trustpilot


$1,171.10
BUY THIS JW Fishers MFP-1 Multifrequency Pinger TODAY FROM RENTAL TOOLS ONLINE.
This from JW Fishers(model: MFP-1 ) is available at one of the best prices anywhere on the internet or in-store!
Description

Details

JW Fishers acoustic pingers make it quick and easy to relocate an underwater site or piece of equipment. The pinger is attached to an underwater location where it continuously transmits a sonar signal. A diver equipped with a pinger receiver can detect the acoustic signal and follow it directly to the pinger. Pingers are available with different transmit frequencies so several can be deployed in the same general area without interfering with each other. The diver sets the pinger receiver to the desired frequency and is guided directly to the pinger.

Fishers family of commercial grade acoustic pingers are available in the mid-frequency range (20 - 50kHz) which can transmit 2-3 thousand feet; or in the low-frequency range (11-16kHz) which can transmit 3-6 miles. Both mid and low frequency pingers are available as a single frequency pinger; or as a multifrequency pinger which allows the operator to select the desired transmit frequency in the field. Single frequency pingers can be ordered in select frequencies which is set at the factory.

With Fishers pingers the operator can select the number of pulses per second, the length of each pulse, the output power and with some units Delayed Start (from a minute to 365 days). The length of each pulse and output power adjustments allow the operator to control the distance the pingers can be detected. These features make the pingers extremely versatile and the first choice for almost any relocation operation.

Mid-frequency pingers are available as a Single Frequency Pinger (SFP1) and as a Multifrequency Pinger (MFP1). The SFP1 is available in several frequencies, one of which is specified at time of order (22, 26, 30, or 37.5kHz) at no additional charge. The MFP1 has user selectable frequencies from 20 to 50 kHz in 500 Hz increments. The operator selects one of 60 different frequencies before deploying the pinger. The acoustic pinger can be automatically activated when put in the water or manually activated with a jumper on the circuit board. Many MFP-1 pingers can be deployed in the same general area, each transmitting a different frequency. A diver using the pinger receiver can pinpoint the exact location of each pinger without interference from the others.

Power for the mid-frequency pingers is supplied by two standard alkaline 9 volt batteries which last from a few days to many months, depending on frequency, output power, and pulse selection. For longer durations, lithium batteries can be used. Longer housings are also available which greatly increase the operating time. The Extended Operation Housing holds six batteries to give 3 times the normal operating time. The Very Long Duration Housing holds twelve "D" size batteries and gives 12 times the normal operating time.

All JW Fishers pingers are covered by a full TWO YEAR WARRANTY.

Additional Information

Additional Information

SKU 124123
Weight 15
Country of Manufacture United States
Mfr. Model Number MFP-1
Link to User Manual x
Link to Schematics x
Link To Catalog x
Technical Specifications No
Free Shipping No
