The Stanley CS113NO0 Underwater Chainsaw is a heavy-duty hydraulic chainsaw engineered for underwater cutting applications. Designed for commercial divers and marine construction professionals, it delivers high-torque hydraulic power to efficiently cut wood structures such as bridge pilings, piers, and dock timbers. Built with durable components and safety features like interlocking triggers and hand guards, this tool is optimized for reliable performance beneath the surface.
- Description
-
Details

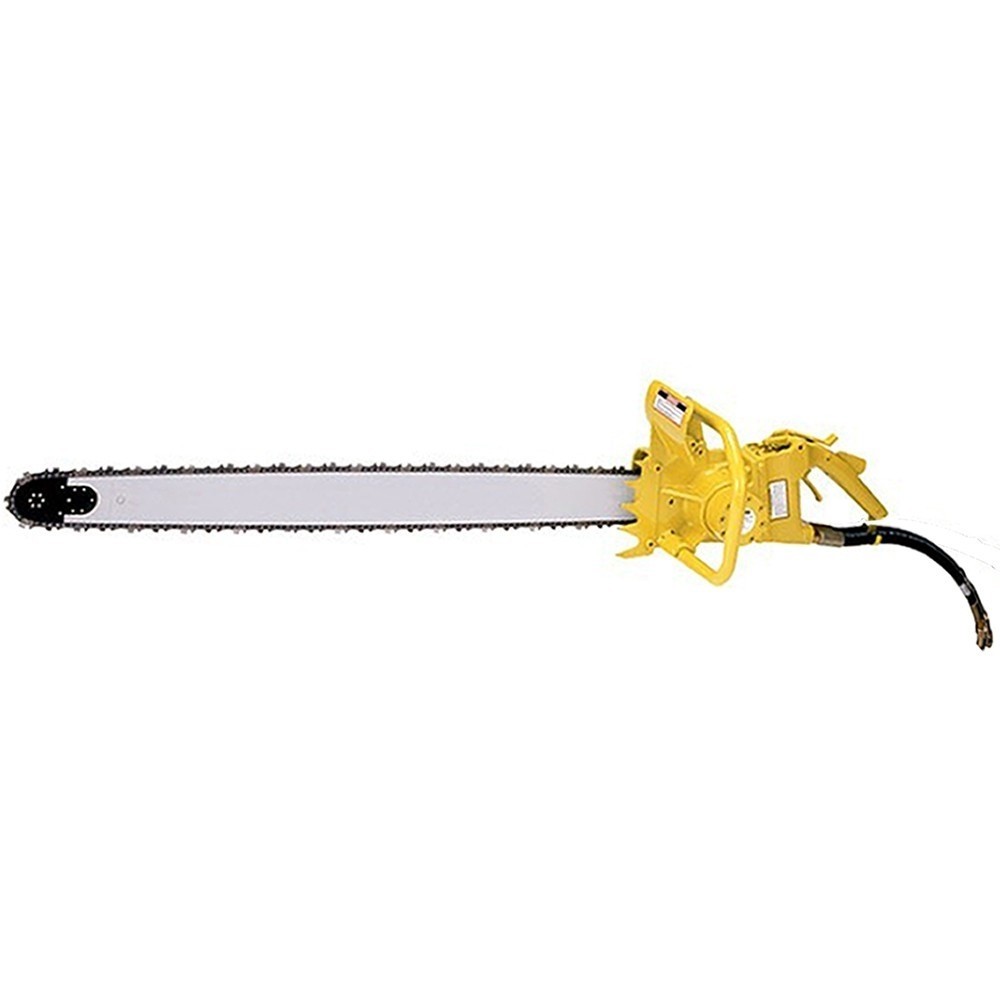

The Stanley CS113NO0 Underwater Chainsaw (also known as the CS11) is an extreme-duty hydraulic powered chainsaw specifically designed for cutting wood structures in underwater environments. It is ideal for commercial divers and marine professionals working on bridge pilings, piers, dock timbers, submerged trees, or other timber structures beneath the water.
Powered by a robust Stanley Hyrevz gear motor, this hydraulic chainsaw delivers high torque, fast chain speed, and exceptional power-to-weight performance, enabling precise and efficient cuts in demanding conditions. The direct-drive hydraulic design eliminates chain coasting when the trigger is released and reduces kickback compared to traditional gas-powered saws.
Safety and ergonomics are built into the CS113NO0, including interlocking safety triggers, hand guards, bucking spurs, and a large assist handle to support diver control and stability underwater. The saw accommodates a wide range of bar lengths (up to 43″/109 cm) to suit diverse cutting requirements. Hydraulic flow and pressure requirements are broad, making it adaptable to various commercial hydraulic power systems.
The unit is typically supplied with hose whips but requires the user to provide the bar, chain, and appropriate couplers. Its rugged construction and specialized features make the CS113NO0 a dependable tool for underwater construction, salvage, maintenance, and forestry tasks.
- Additional Information
-
Additional Information
SKU 140942 Weight 14 Country of Manufacture Mfr. Model Number CS113NO0 Link to User Manual No Link to Schematics No Link To Catalog No Technical Specifications Model CS11 (Underwater Chain Saw) SKU / Part Number CS113NO0 Application Wood structures; bridge pilings; pier and dock timbers Cut Capacity 24, 30, 36, and 43 in. cut (61, 76, 91, and 109 cm) Weight 14 lb (6 kg) Length 17 in. (43 cm) Width 9 in. (23 cm) Working Pressure 1500–2000 psi (105–140 bar) Flow Range 10–14 gpm (38–53 lpm) at the diver Optimum Flow 14 gpm (53 lpm) Hydraulic Porting -8 SAE O-Ring Connect Size / Type 3/8 in. or 1/2 in. male pipe hose end Motor Hyrevz™ motor Circuit Type Open center Chain Type / Pitch 3/8 in. pitch Full Relief Setting 2250 psi (155 bar) Motor Speed @ 12 gpm 5295 rpm Chain Speed @ 12 gpm 2591 ft/min (13.16 m/s) Couplers No Hose Whips Yes Includes (2) 12 in. pigtail hose whips + user manual (bar/chain/couplers sold separately) Compliance Note Not CE compliant Free Shipping No
